With CONSULT-II

1. Select "TARGET FAN RPM" in "ACTIVE TEST" mode with CONSULT-II.
2. Change "TRGT FAN RPM" indication by touching "UP" and "DOWN", then make sure that the cooling fan operating speed changes according to "TRGT FAN RPM" indication.

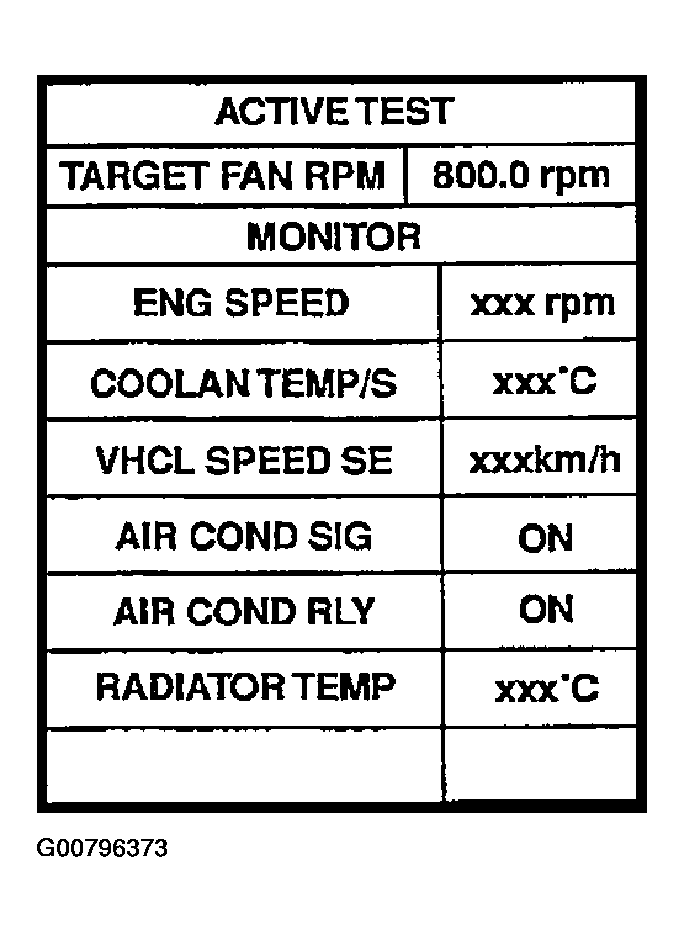

   Fig 1: Scan Tool Display - Active Test

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 9. CHECK RADIATOR COOLANT TEMPERATURE SENSOR .
2. NG: GO TO 5. CHECK GROUND CONNECTIONS .
