Main 12 Causes of Overheating

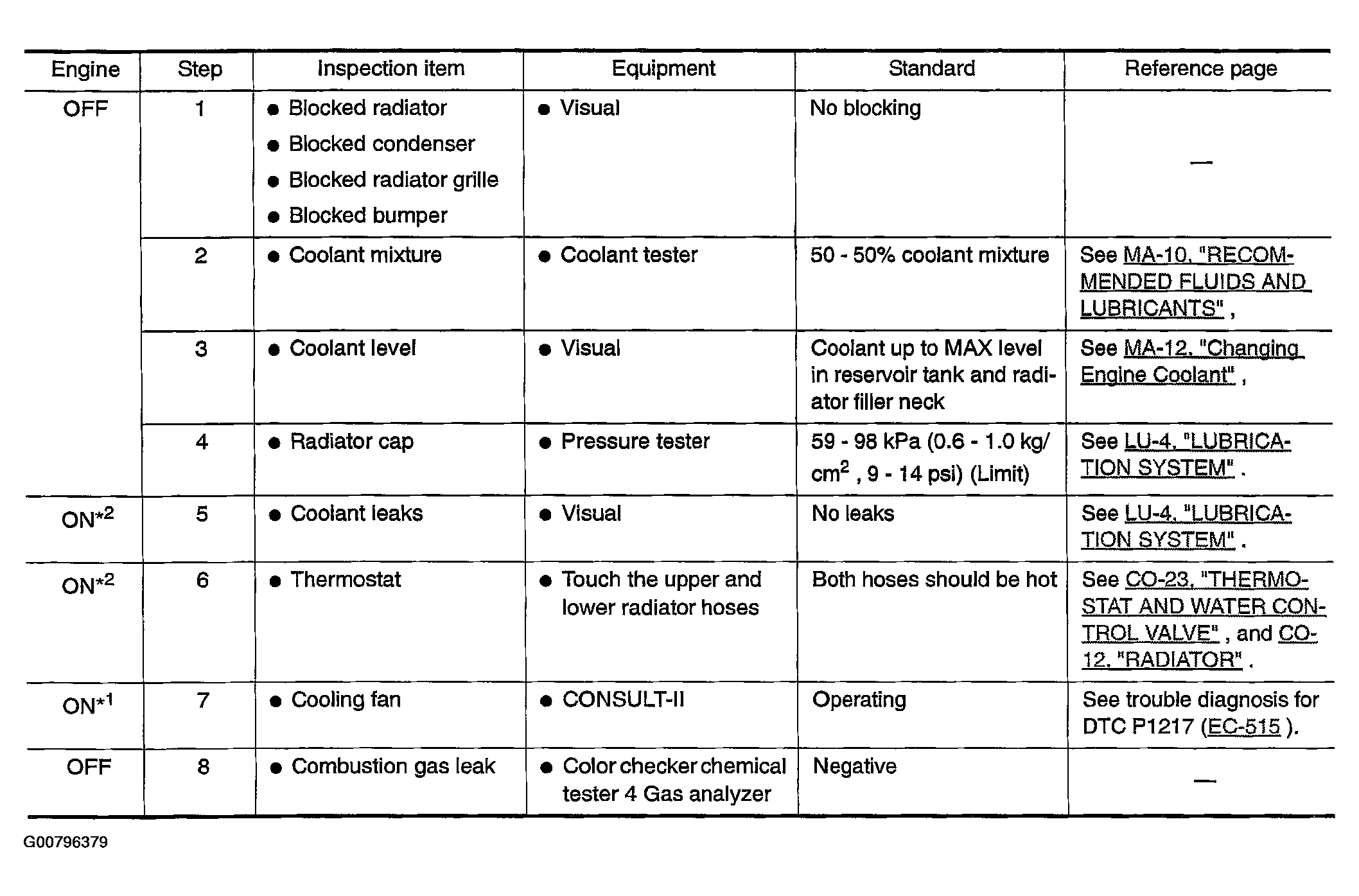

Fig 1: Main 12 Causes Of Overheating (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "Causes Of Overheating (2 Of 2)" for footnotes.

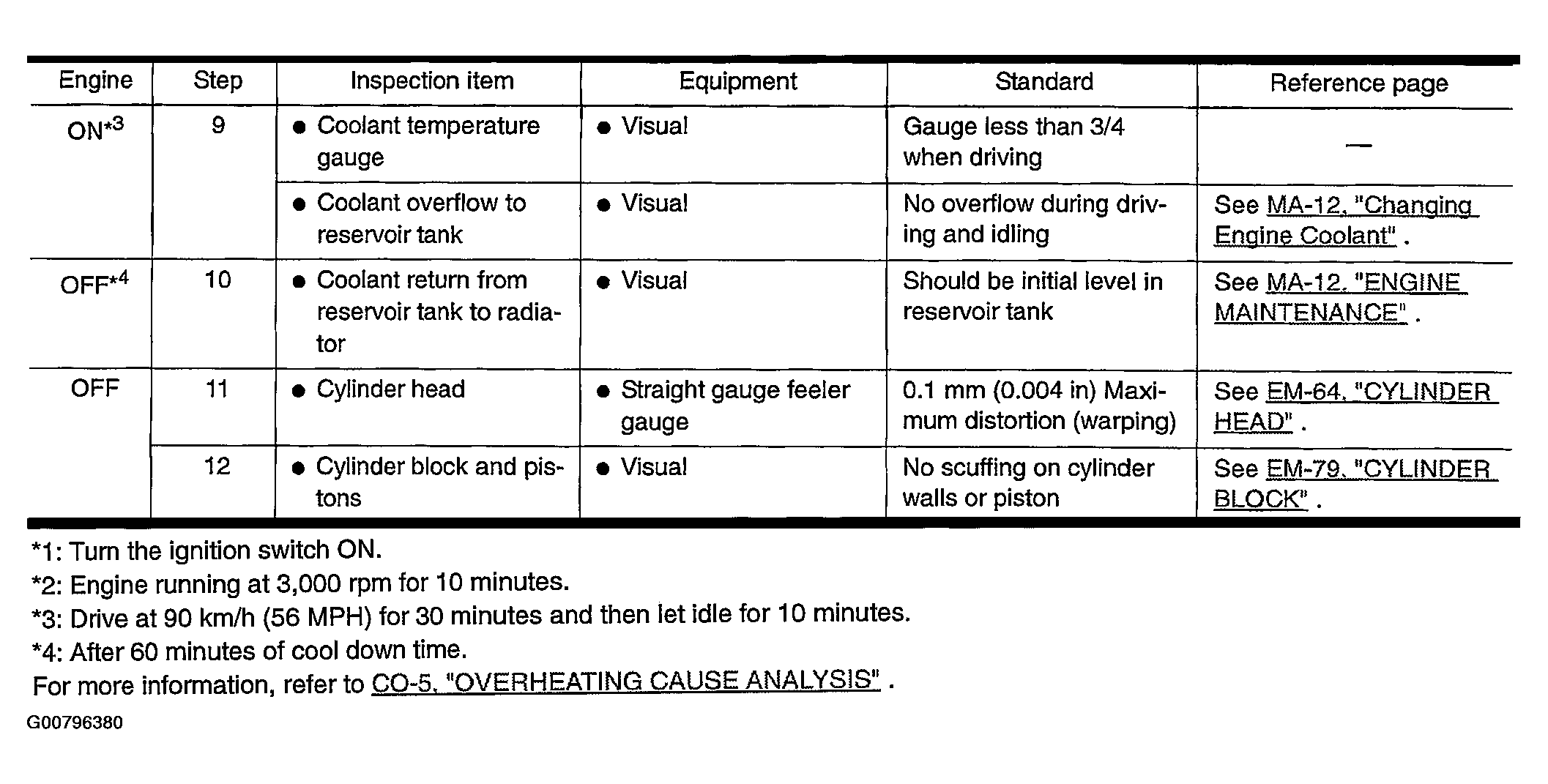

Fig 2: Main 12 Causes Of Overheating (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
