2. Check FPCM Power Supply Circuit

1. Disconnect fuel pump control module (FPCM) harness connector.

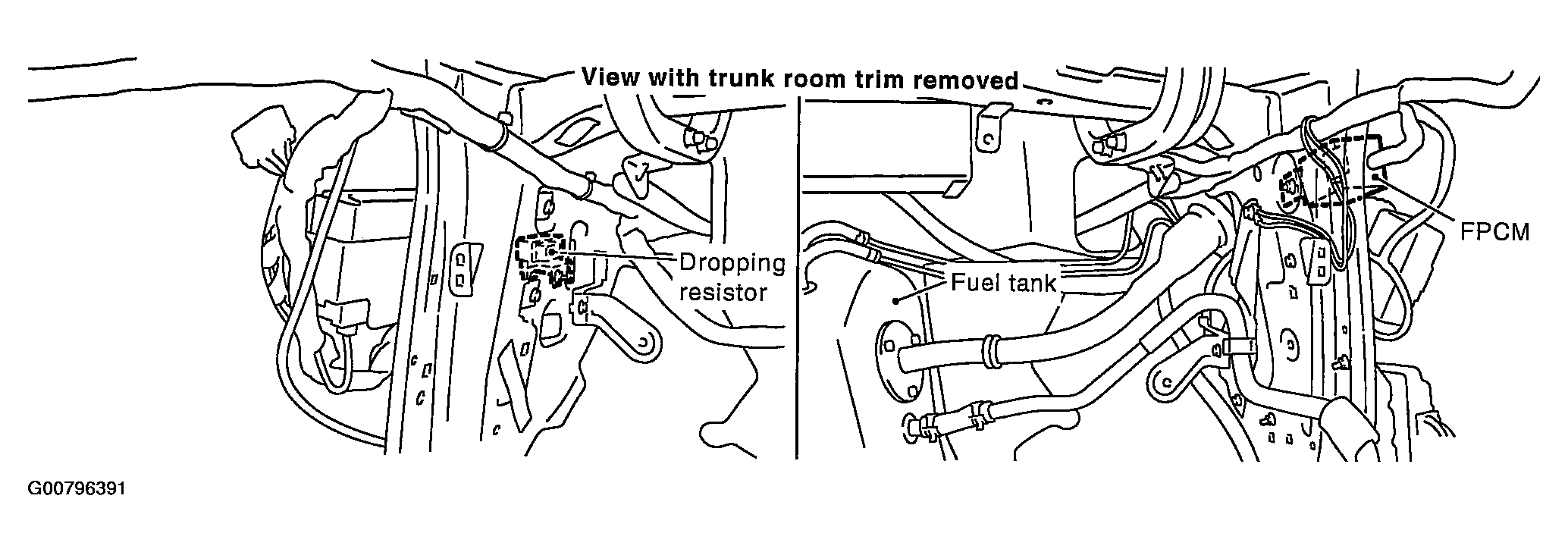

   Fig 1: Identifying Fuel Pump Control Module (FPCM)

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Turn ignition switch ON.
3. Check voltage between FPCM terminal 2 and ground with CONSULT-II or tester.

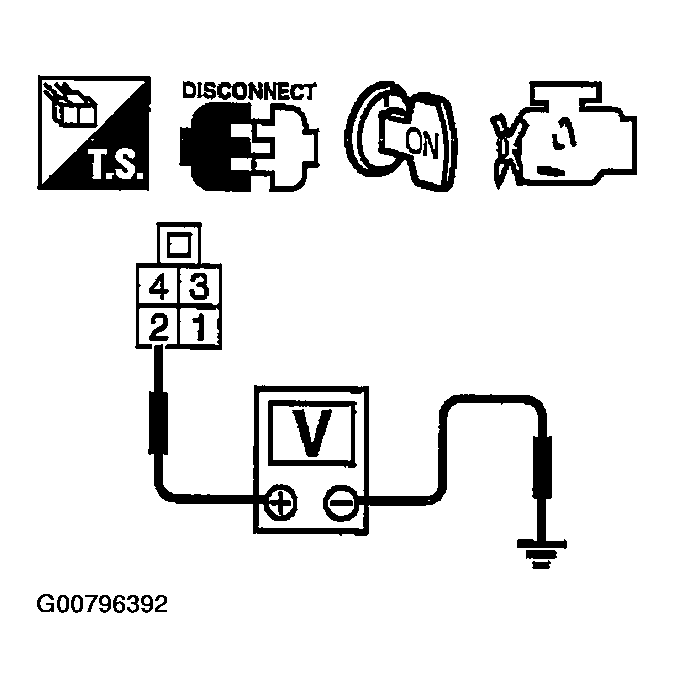

   Fig 2: Checking Voltage Between FPCM Terminal 2 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Voltage: Battery voltage

OK or NG

1. OK: GO TO 4. CHECK FPCM GROUND CIRCUIT-I FOR OPEN AND SHORT .
2. NG: GO TO 3.
