On Board Diagnosis Logic

The MIL will not light up for this diagnosis.

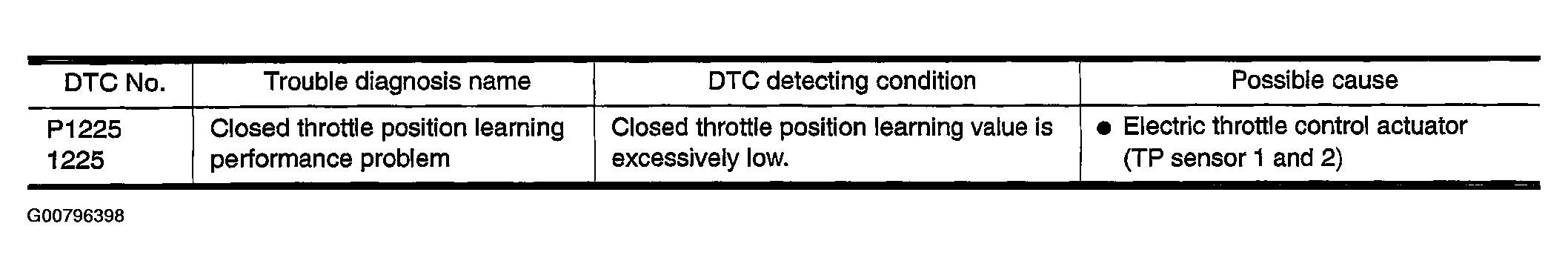

Fig 1: On Board Diagnosis Logic Chart
G00796398Courtesy of NISSAN MOTOR CO., U.S.A.
