With CONSULT-II

Turn ignition switch ON.
Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.

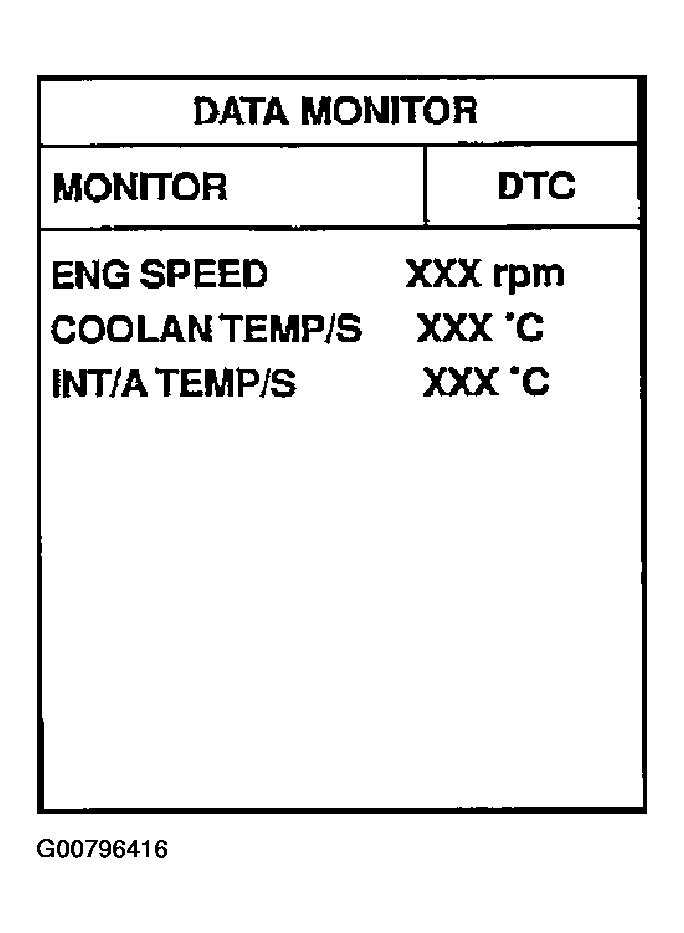

Fig 1: Scan Tool Display - Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that the following conditions are met.
COOLAN TEMP/S: 0 - 70°C (32 - 158°F)

INT/A TEMP SE: 0 - 30°C (32 - 86°F)
Select "EVAP SML LEAK P0442/P1442" of "EVAPORATIVE SYSTEM" in "DTC WORK SUPPORT" mode with CONSULT-II. Follow the instruction displayed.

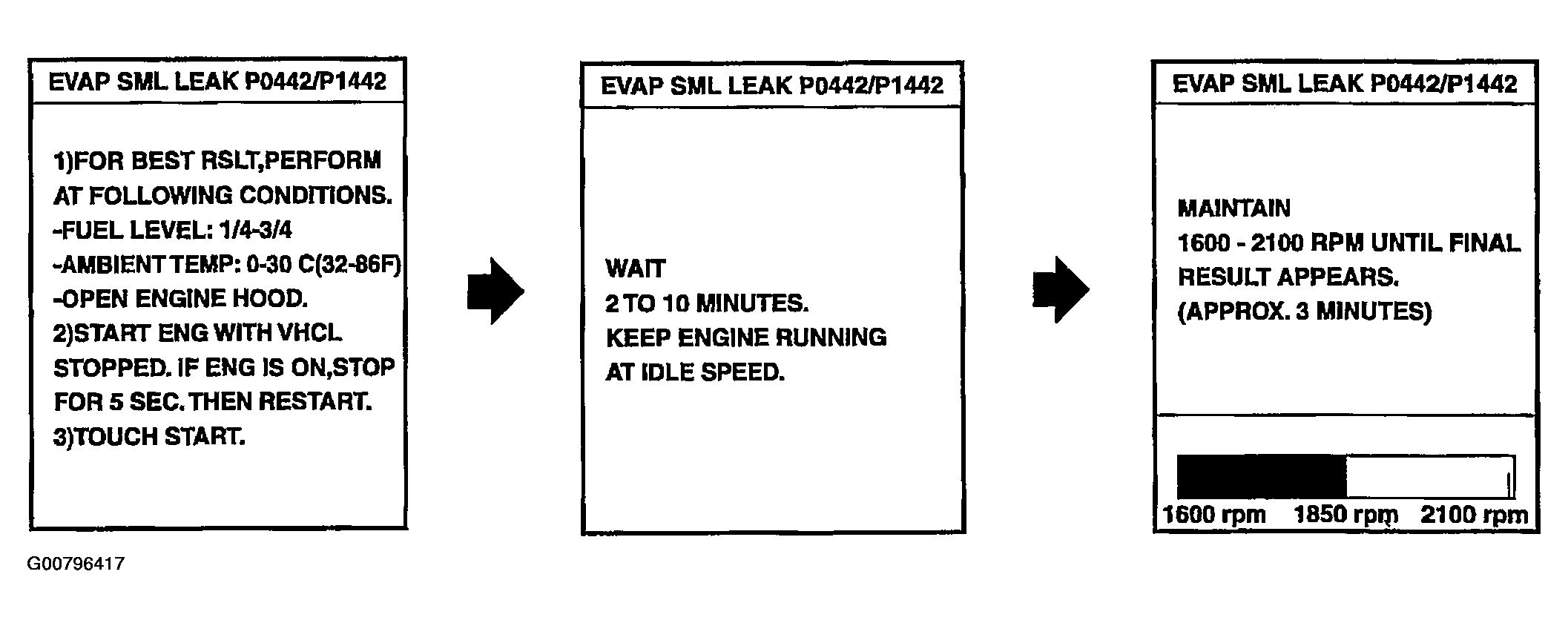

Fig 2: Following Instructions Displayed On Scan Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If the engine speed cannot be maintained within the range displayed on the CONSULT-II screen, go to BASIC INSPECTION .
Make sure that "OK" is displayed. If "NG" is displayed, refer to DIAGNOSTIC PROCEDURE .

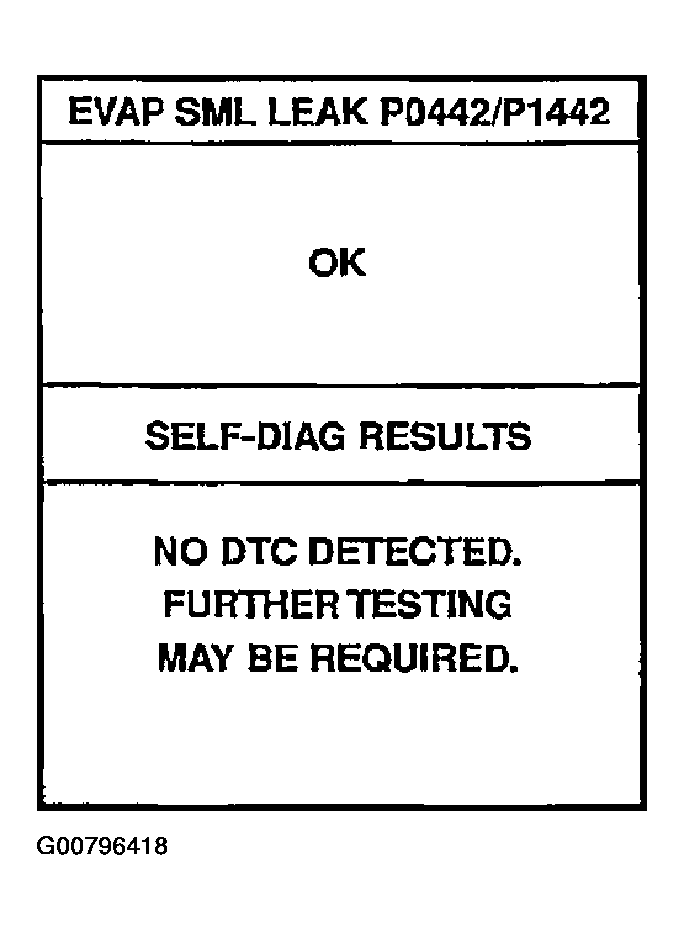

Fig 3: Scan Tool Display - EVAP SML LEAK
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid valve properly.
