With CONSULT-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.

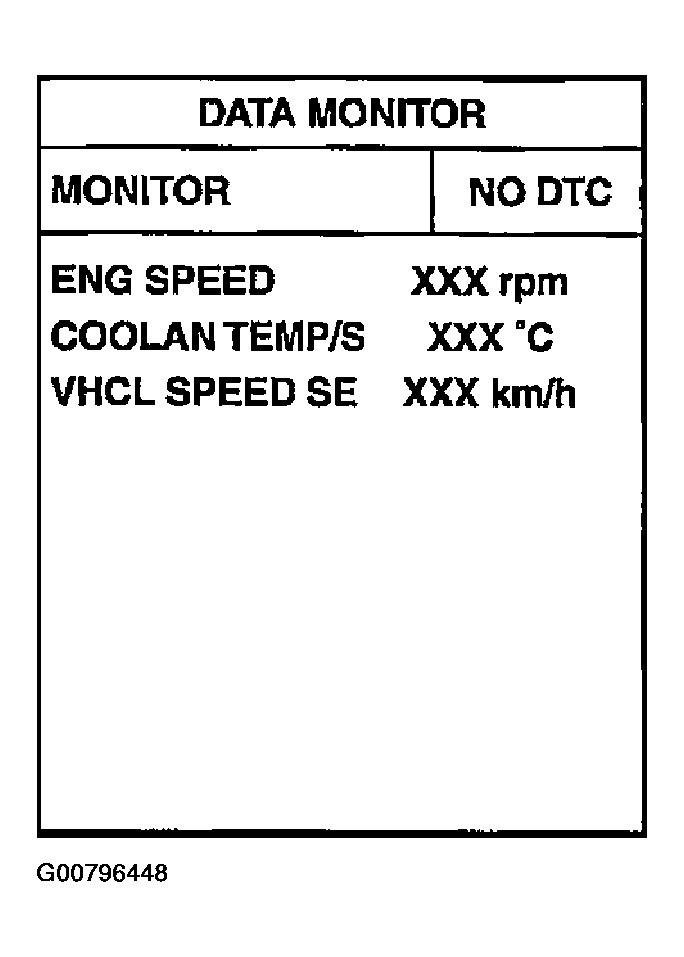

    Fig 1: Scan Tool Display - Data Monitor
    G00796448Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Start engine.
  4. Drive vehicle at a speed of approximately 80 km/h (50 MPH) for a maximum of 15 minutes.
    NOTE: If a malfunction exists, NG result may be displayed quicker.
  5. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
