With CONSULT-II

Turn ignition switch ON.
Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.

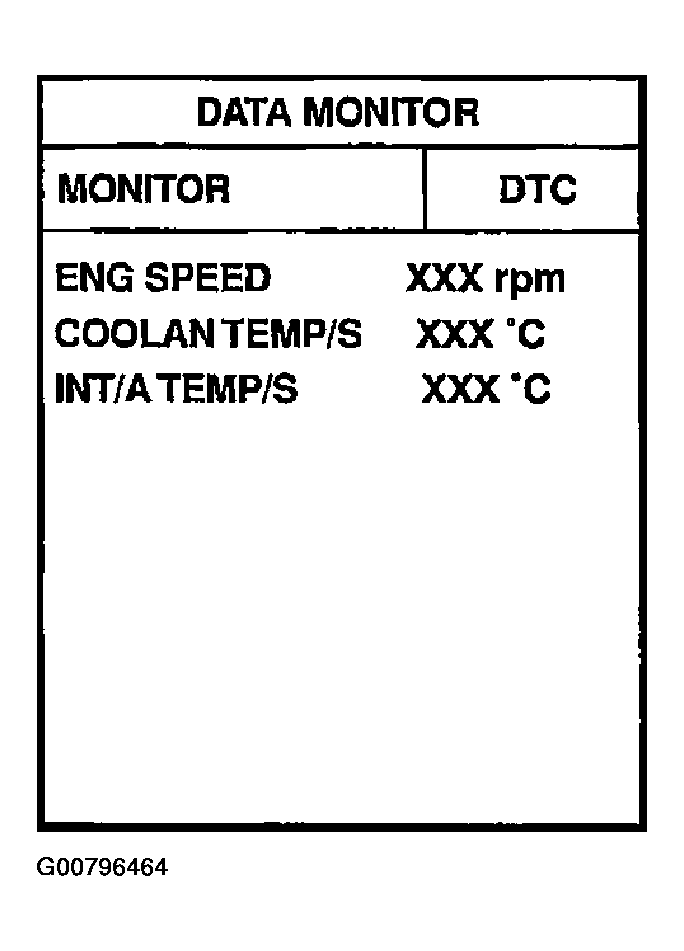

Fig 1: Scan Tool Display - Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure that the following conditions are met.

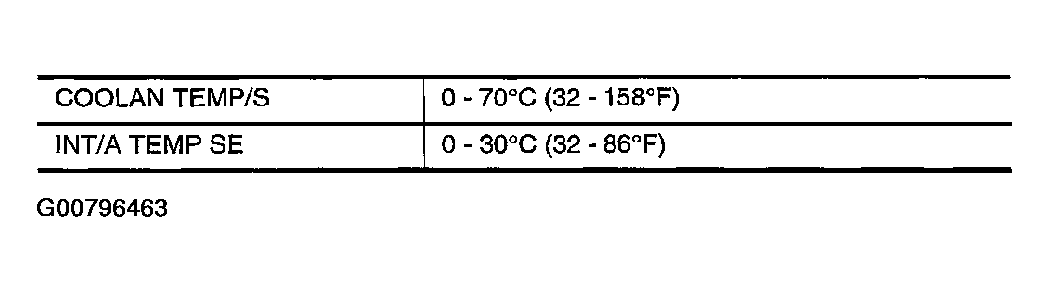

Fig 2: Inspecting Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "EVAP SML LEAK P0442/P1442" of "EVAPORATIVE SYSTEM" in "DTC WORK SUPPORT" mode with CONSULT-II. Follow the instruction displayed.

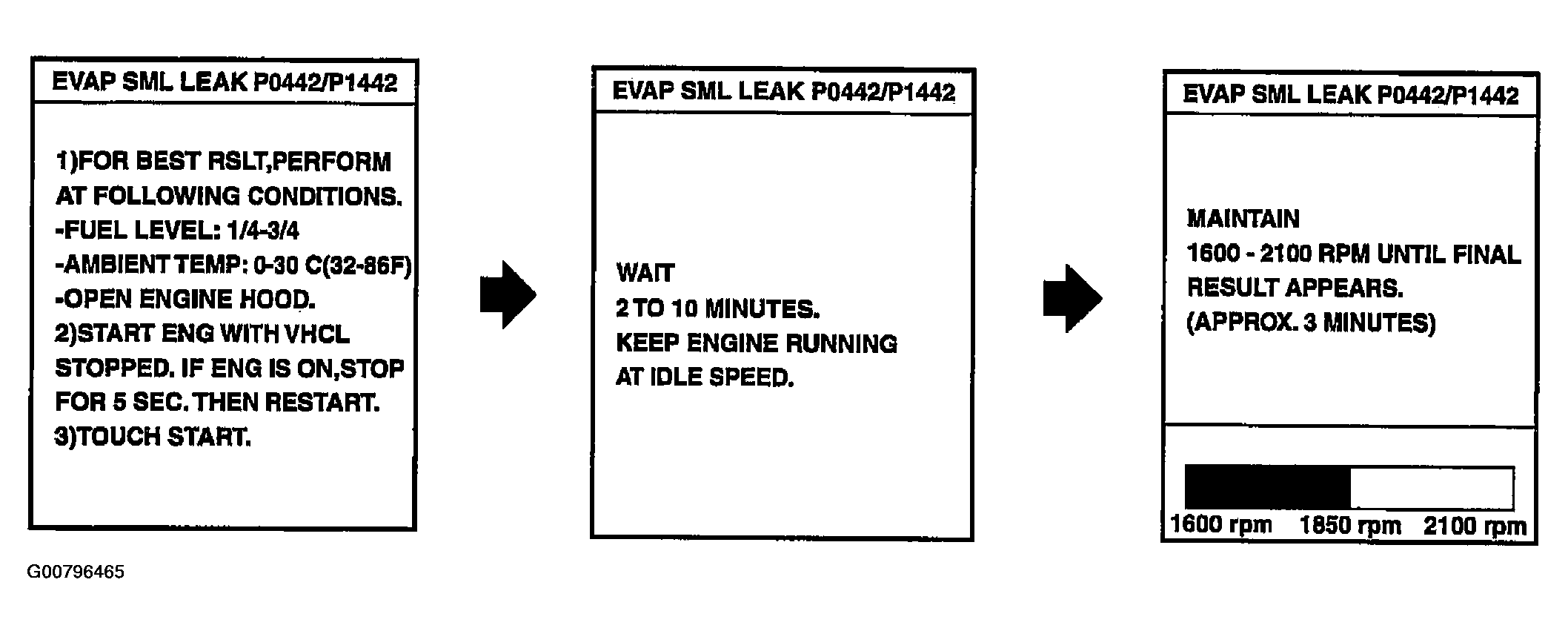

Fig 3: Following Instructions Displayed On Scan Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

If the engine speed cannot be maintained within the range displayed on the CONSULT-II screen, go to BASIC INSPECTION .
Make sure that "OK" is displayed.
If "NG" is displayed, go to the following step.

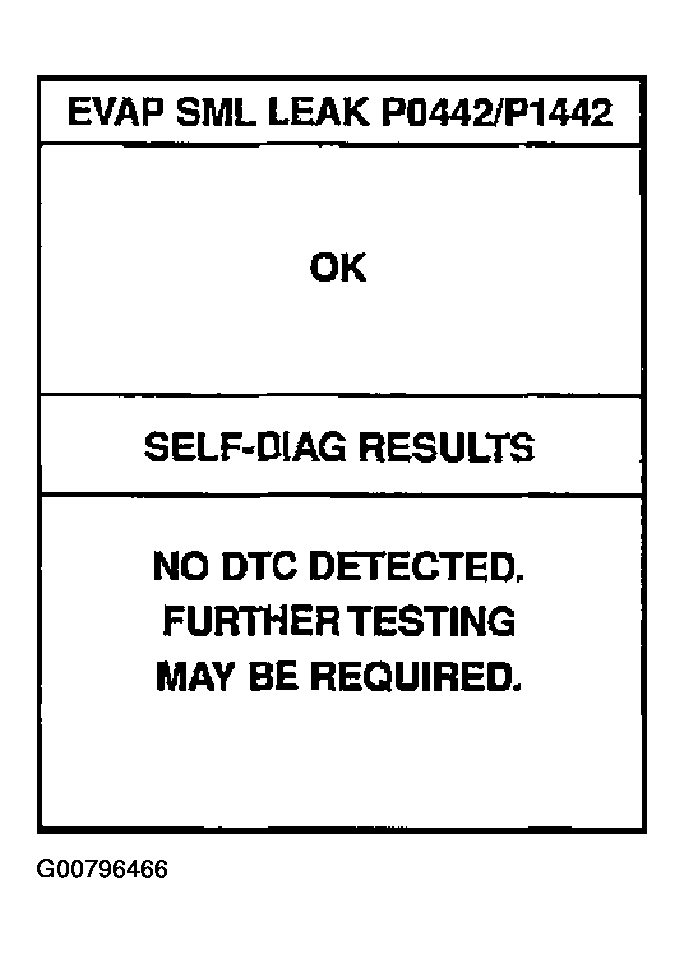

Fig 4: Scan Tool Display - EVAP SML LEAK
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid valve properly.
Stop engine and wait at least 10 seconds, then turn ON.
Disconnect hose from water separator.
Select "VENT CONTROL/V" of "ACTIVE TEST" mode with CONSULT-II.
Touch "ON" and "OFF" alternately.
Make sure the following.

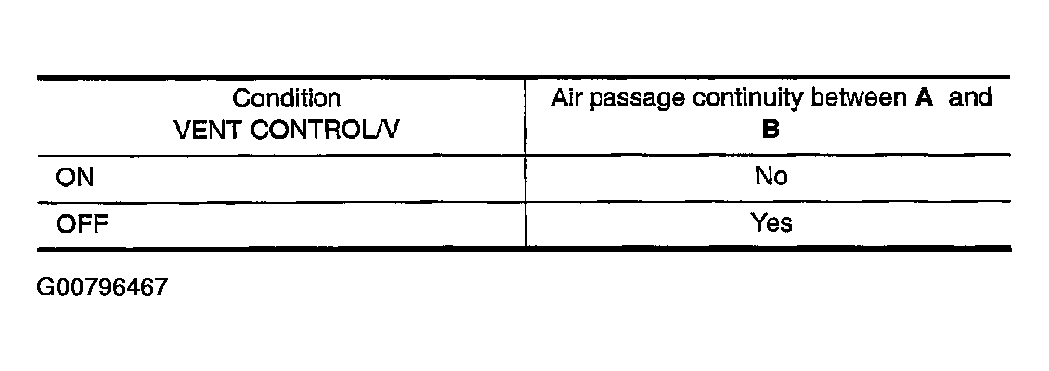

Fig 5: Inspecting Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

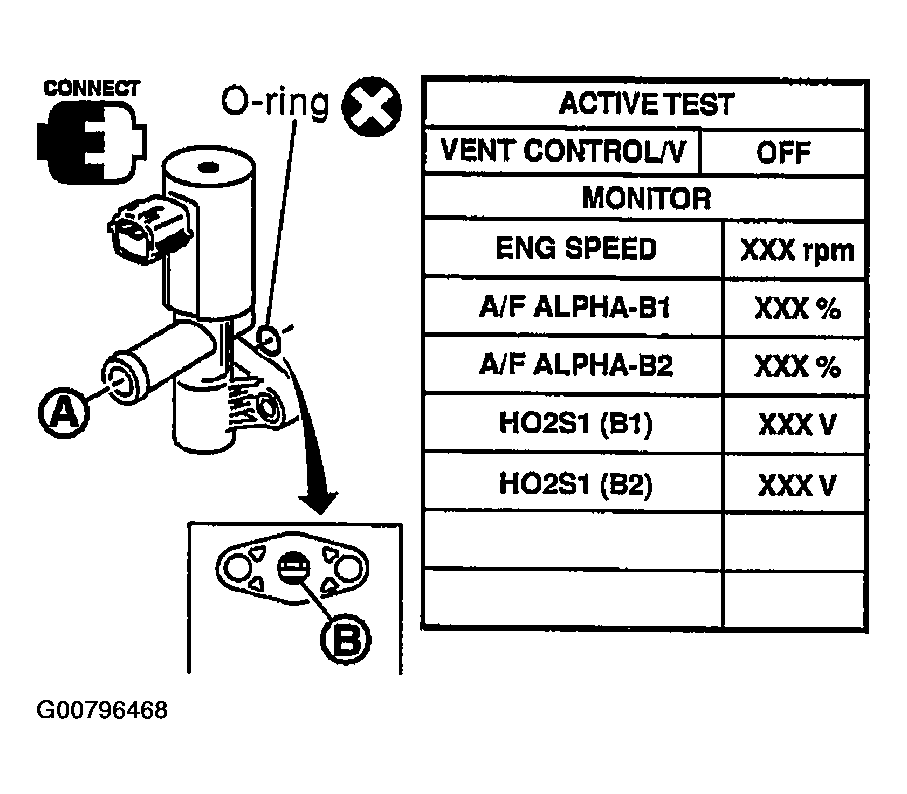

Fig 6: Scan Tool Display - Active Test
Courtesy of NISSAN MOTOR CO., U.S.A.

If the result is NG, go to Diagnostic Procedure .

If the result is OK, go to "Diagnostic Procedure" for DTC P0442, see DIAGNOSTIC PROCEDURE .
