With CONSULT-II

Turn ignition switch ON.
Select "P/N POSI SW" in "DATA MONITOR" mode with CONSULT-II. Then check the "P/N POSI SW" signal under the following conditions.

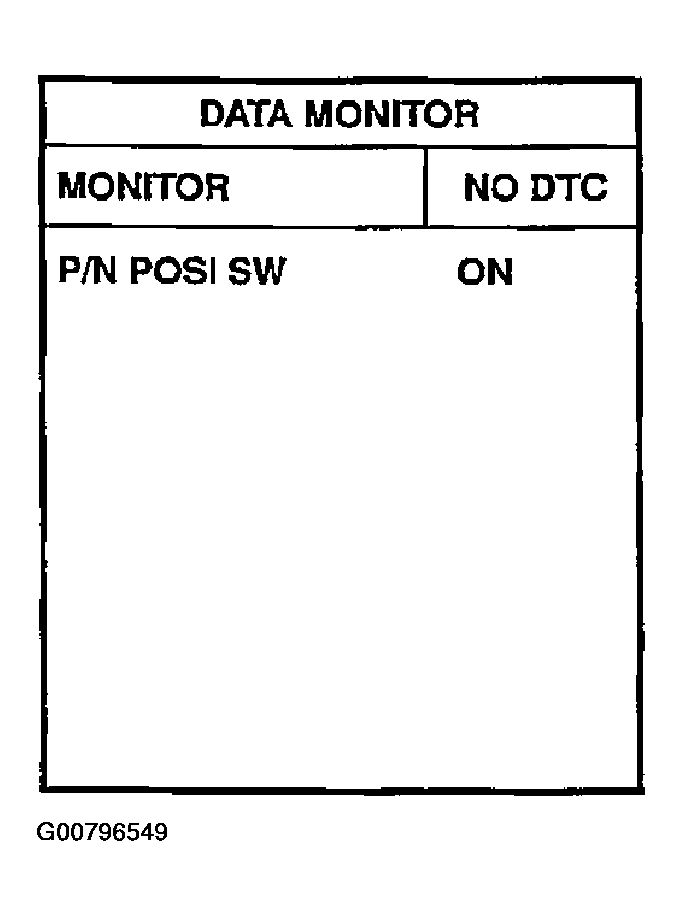

Fig 1: Scan Tool Display - Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

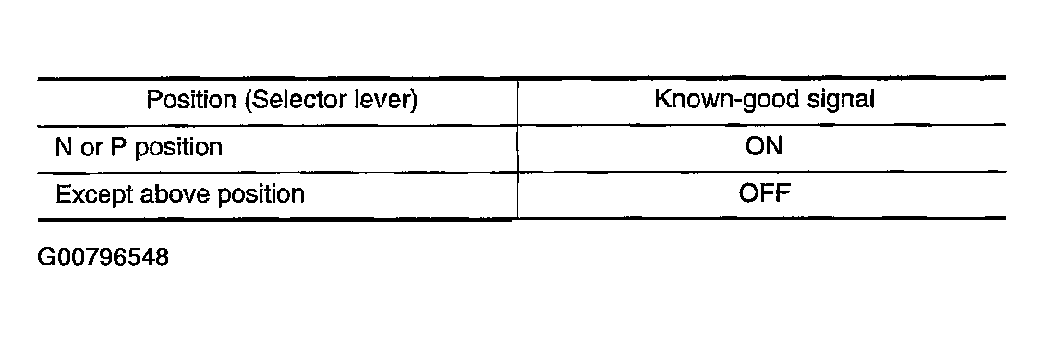

Fig 2: Inspecting Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, go to DIAGNOSTIC PROCEDURE .

If OK, go to following step.
Select "DATA MONITOR" mode with CONSULT-II.

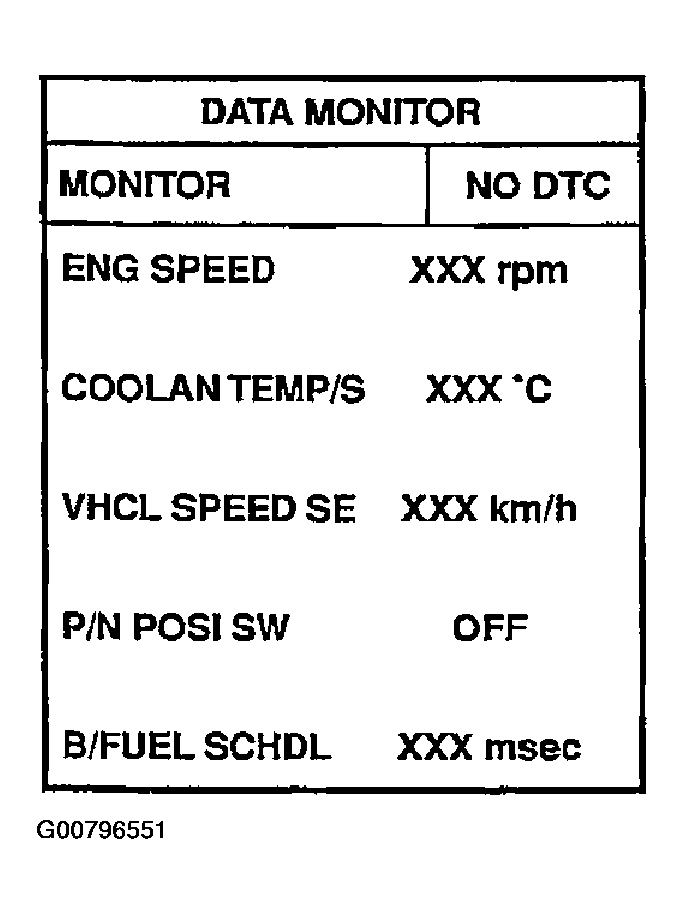

Fig 3: Scan Tool Display - Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and warm it up to normal operating temperature.
Maintain the following conditions for at least 600 consecutive seconds.

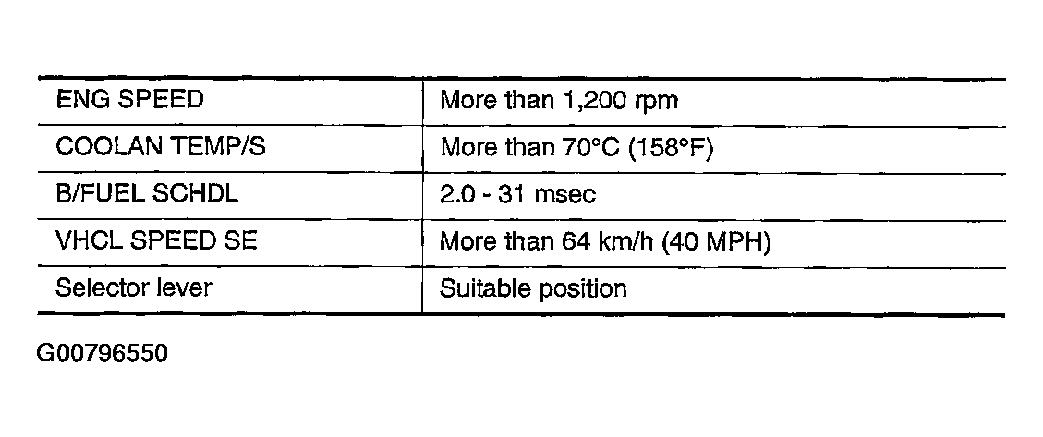

Fig 4: Inspecting Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
