Stop Lamp Switch

  1. Disconnect stop lamp switch harness connector.

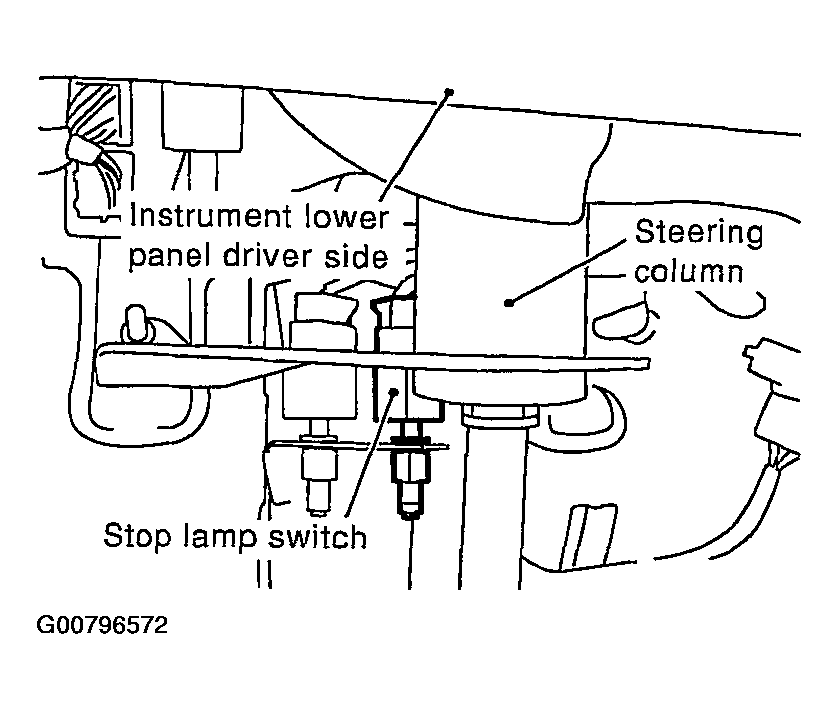

    Fig 1: Identifying Stop Lamp Switch
    G00796572Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

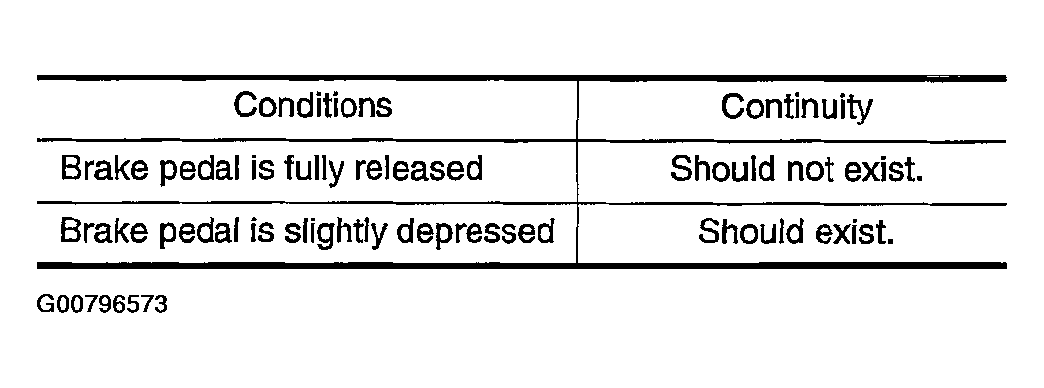

    Fig 2: Inspecting Conditions Chart
    G00796573Courtesy of NISSAN MOTOR CO., U.S.A.

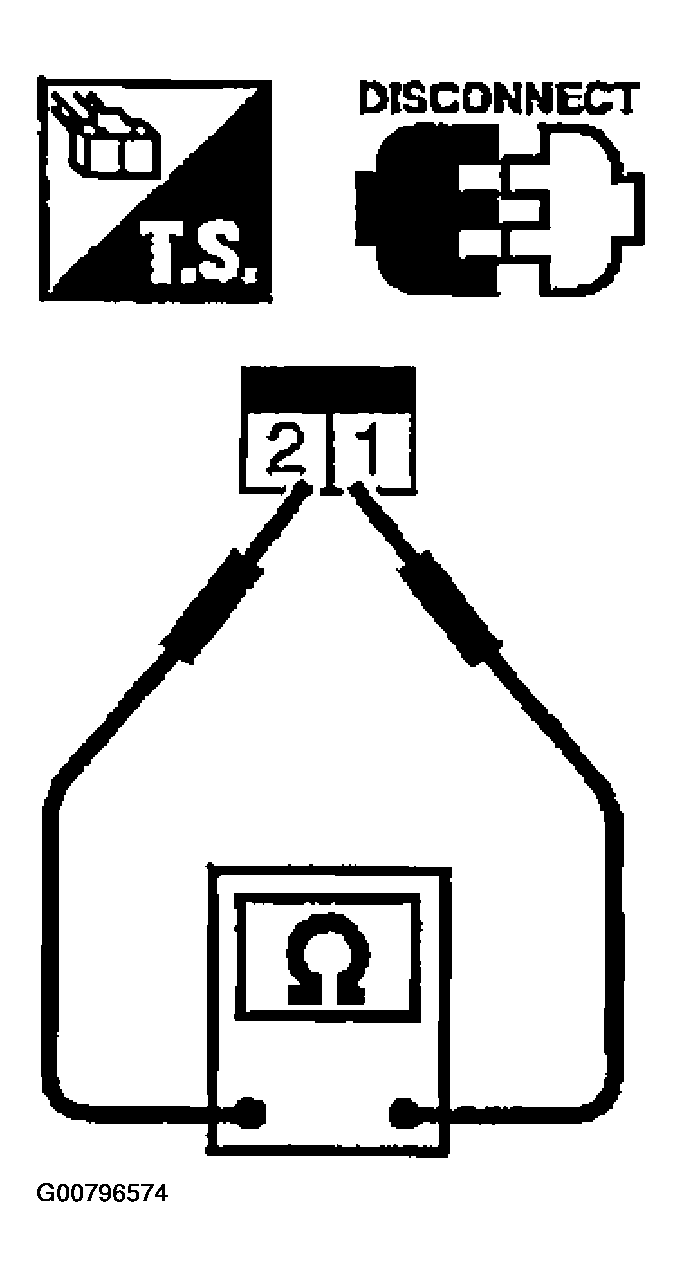

    Fig 3: Checking Continuity Between Stop Lamp Switch Terminals 1 & 2
    G00796574Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, adjust stop lamp switch installation, refer to BRAKE PEDAL FREE PLAY , and perform step 2 again.
