2. Check App Sensor Power Supply Circuit

1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.

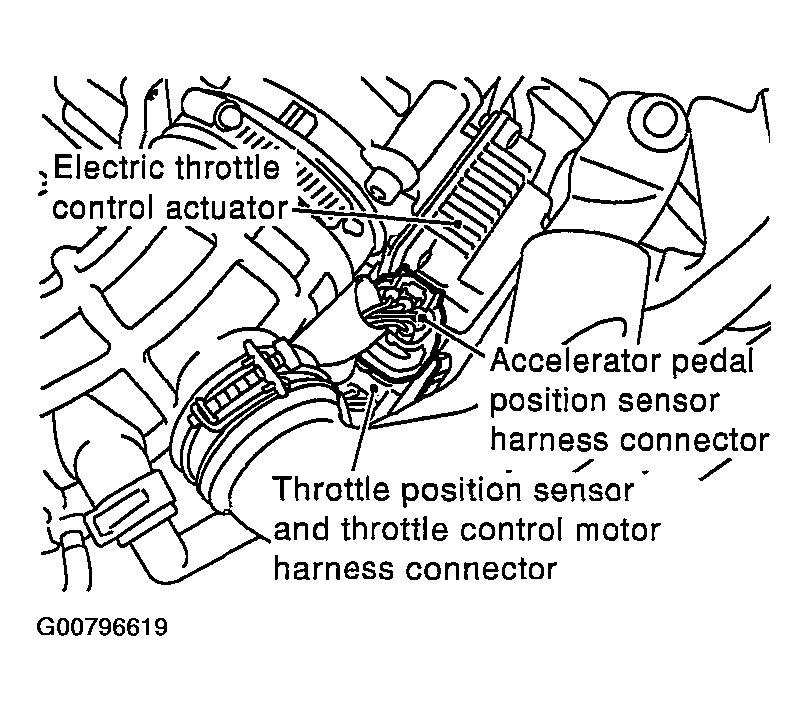

   Fig 1: Identifying Electric Throttle Control Actuator

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between electric throttle control actuator terminals 7, 10 and ground with CONSULT-II or tester.

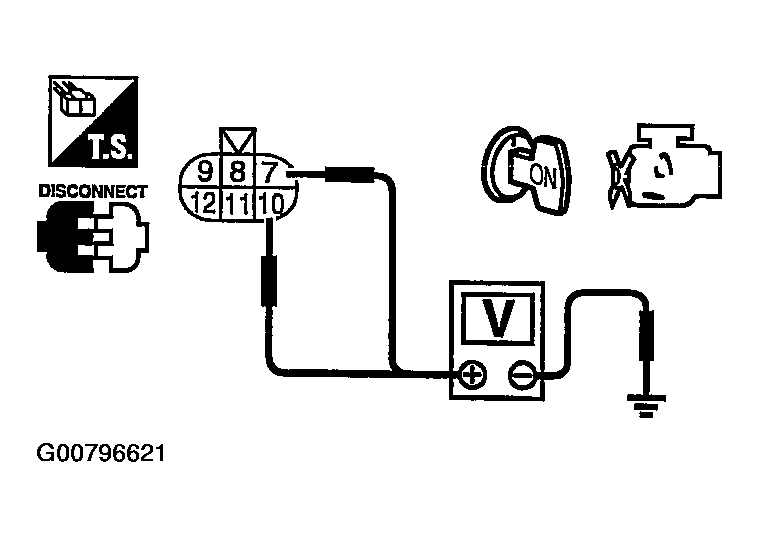

   Fig 2: Checking Voltage Between Electric Throttle Control Actuator Terminals 7, 10 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

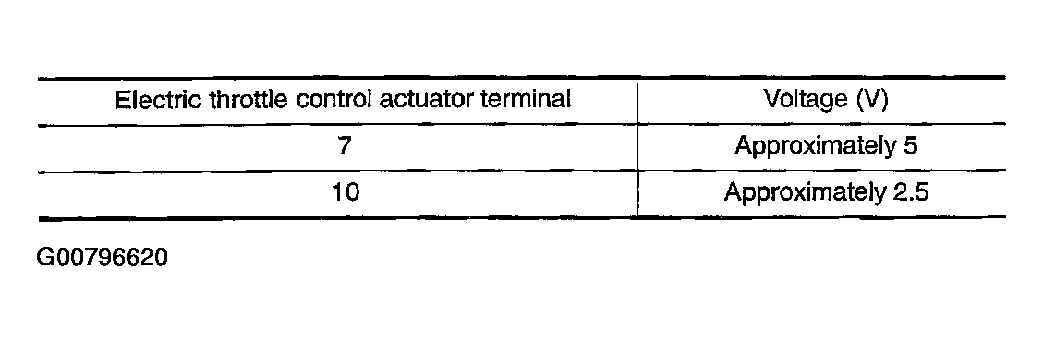

   Fig 3: Inspecting Condition Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 3.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
