2. Check Load Signal Circuit Overall Function-II

Check "LOAD SIGNAL" indication under the following conditions.

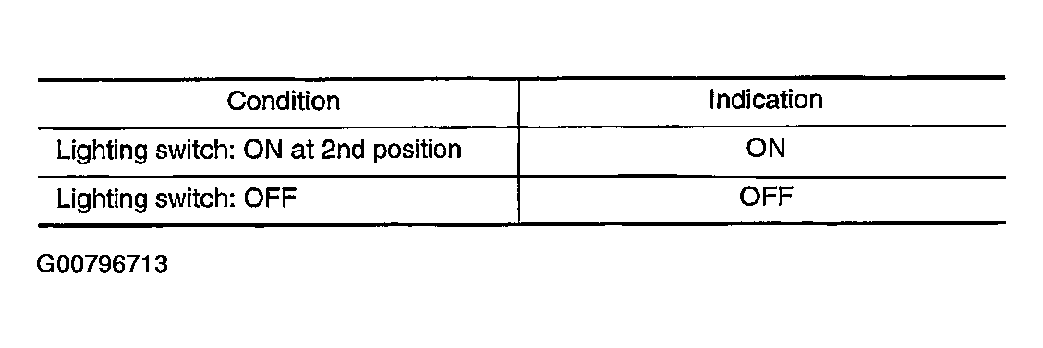

Fig 1: Inspecting Conditions Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

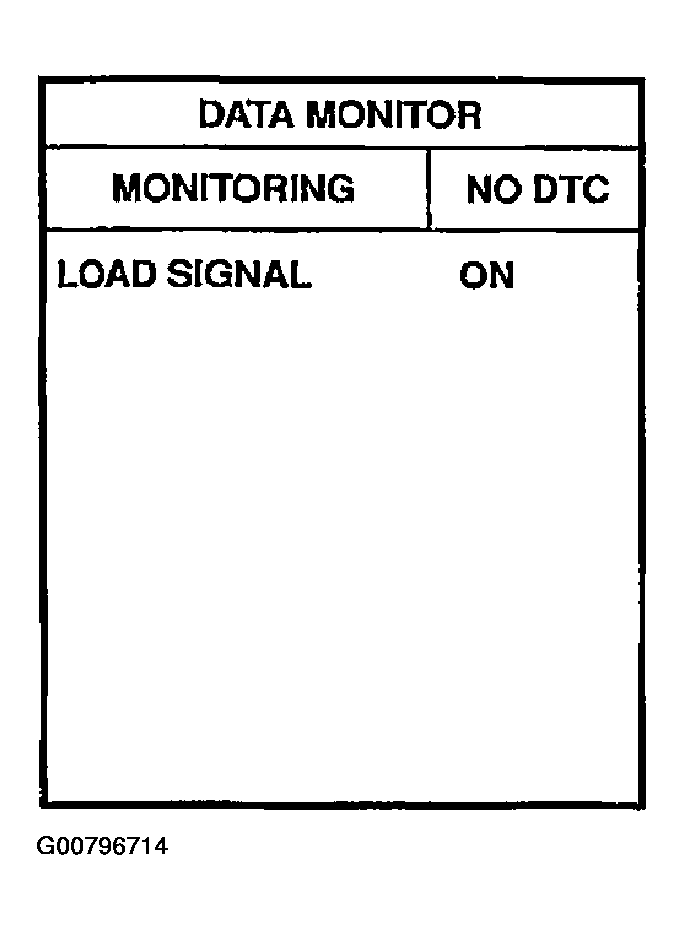

Fig 2: Scan Tool Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: INSPECTED END
2. NG: GO TO 7. CHECK HEADLAMP FUNCTION .
