Ignition Coil With Power Transistor

Turn ignition switch OFF.
Disconnect ignition coil harness connector.
Check resistance between ignition coil terminals as follows:

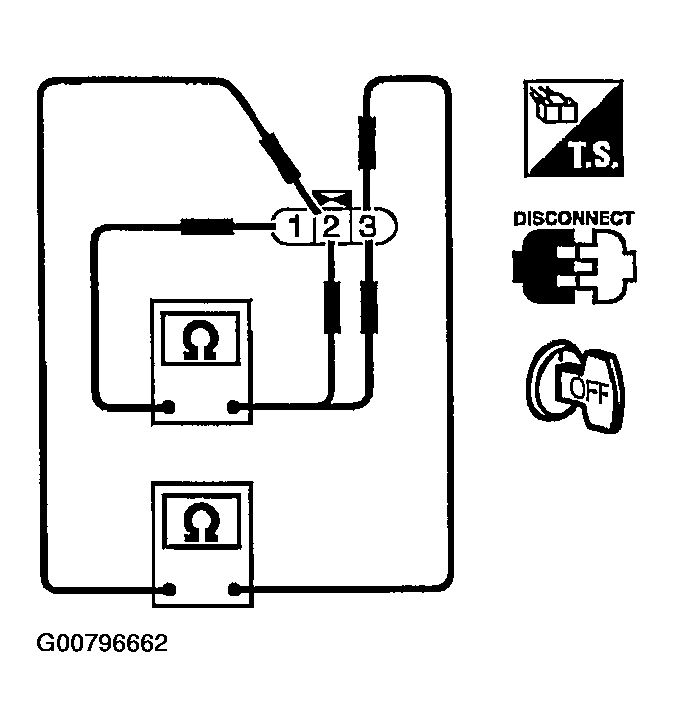

Fig 1: Checking Resistance Between Ignition Coil Terminals (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

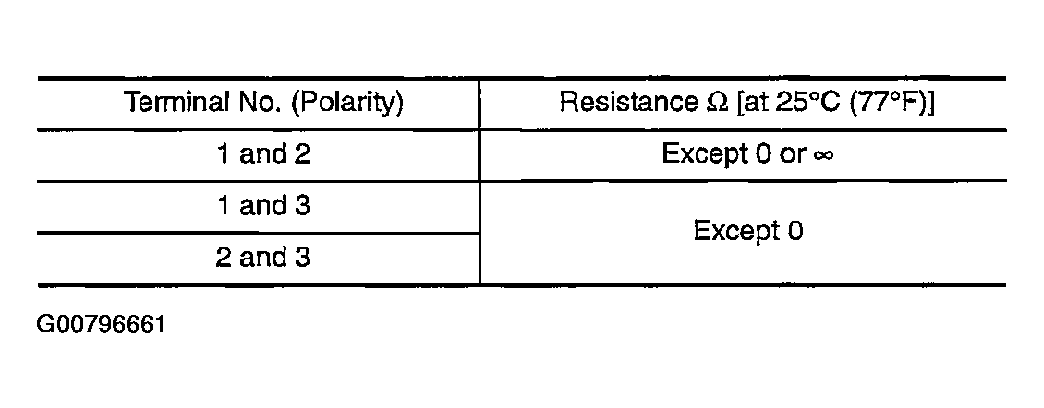

Fig 2: Checking Resistance Between Ignition Coil Terminals (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
