13. Check Ignition Coil Power Supply Circuit-V

1. Reconnect all harness connectors disconnected.
2. Disconnect ignition coil harness connector.

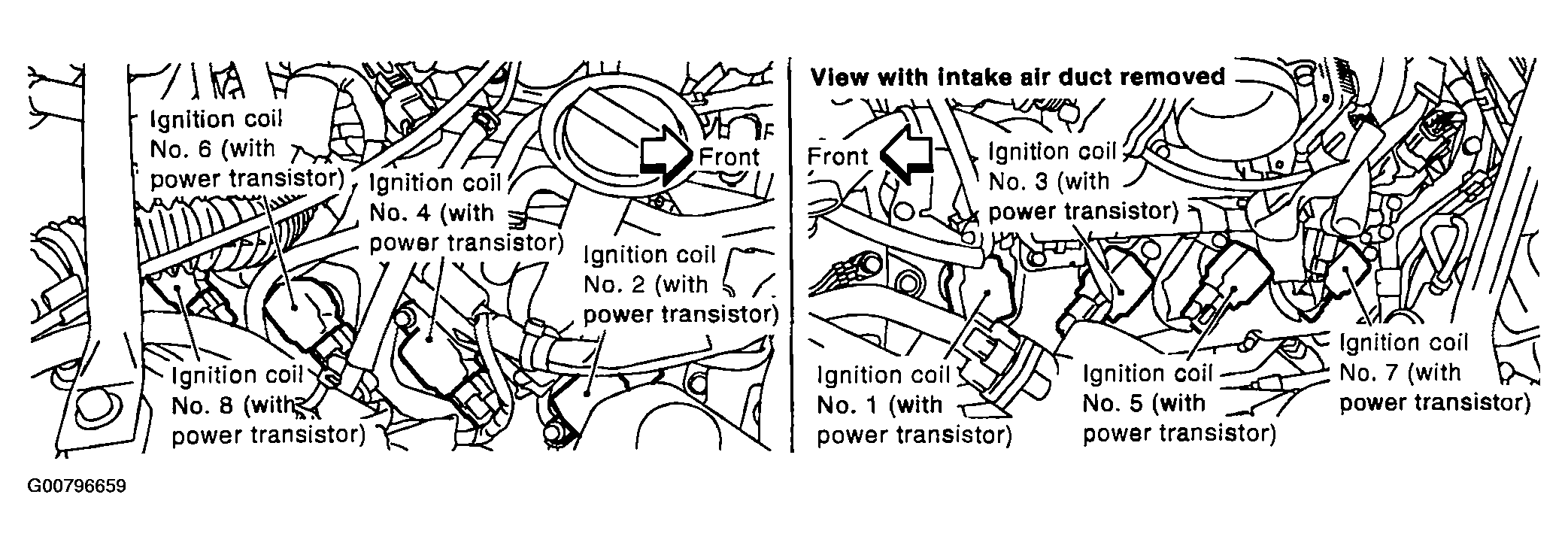

   Fig 1: Identying Ignition Coil Locations (1 - 8)

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn ignition switch ON.
4. Check voltage between ignition coil terminal 3 and ground with CONSULT-II or tester.
   Fig 2: Checking Voltage Between Ignition Coil Terminal 3 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Voltage: Battery voltage

OK or NG

1. OK: GO TO 15. CHECK IGNITION COIL GROUND CIRCUIT FOR OPEN AND SHORT .
2. NG: GO TO 14.
