With CONSULT-II

1. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT-II.

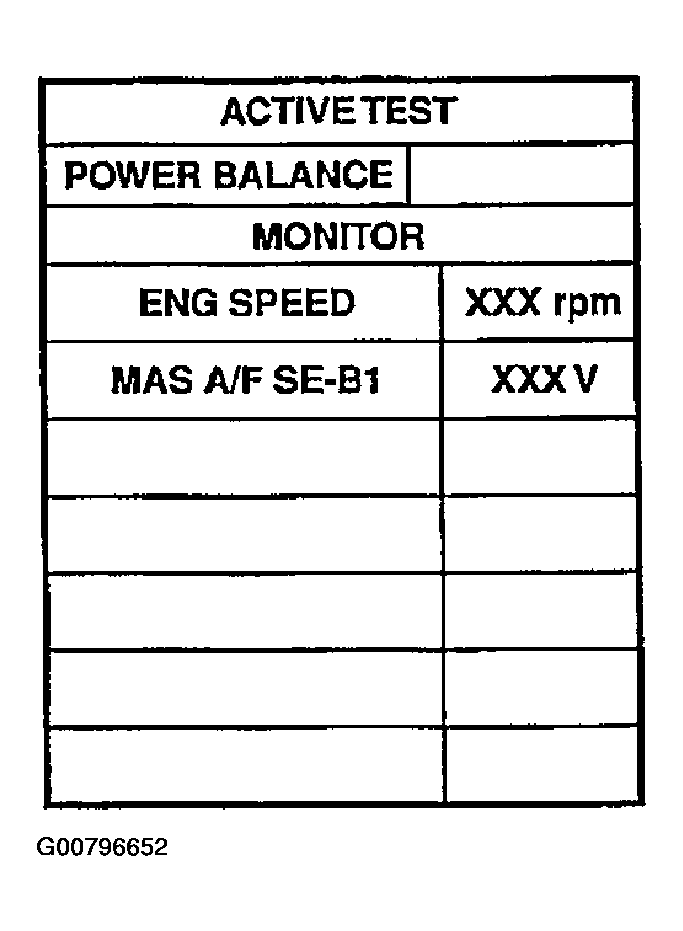

   Fig 1: Scan Tool Display - Active Test

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Make sure that each circuit produces a momentary engine speed drop.

OK or NG

1. OK: INSPECTION END
2. NG: GO TO 11. CHECK CONDENSER CIRCUIT FOR OPEN AND SHORT .
