Without CONSULT-II

  1. Start engine.
  2. Listen to each injector operating sound.

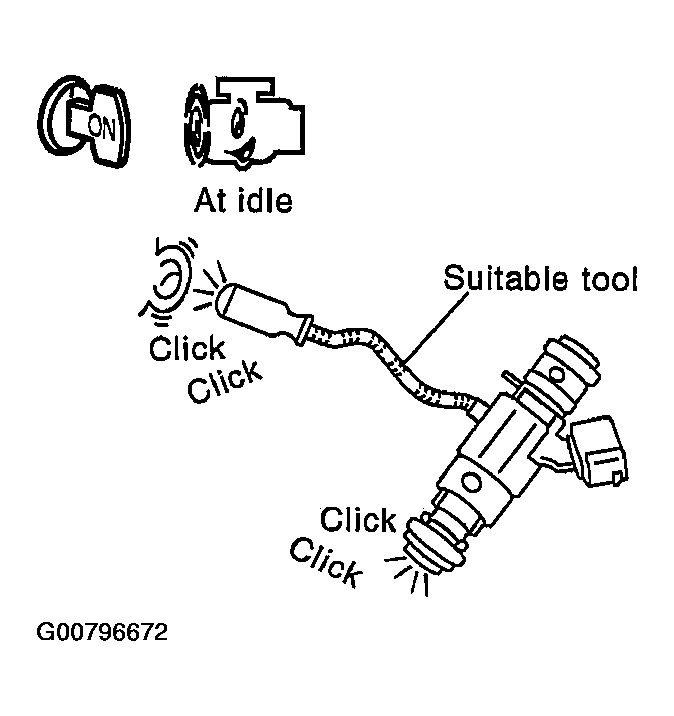

    Fig 1: Listening For Operational Sound
    G00796672Courtesy of NISSAN MOTOR CO., U.S.A.

    Clicking noise should be heard.

OK or NG

  1. OK: INSPECTION END
  2. NG: GO TO 3.
