6. Check Sub-Harness Circuit For Open And Short

1. Disconnect injector harness connectors.
2. Check harness continuity between the following terminals. Refer to WIRING DIAGRAM .

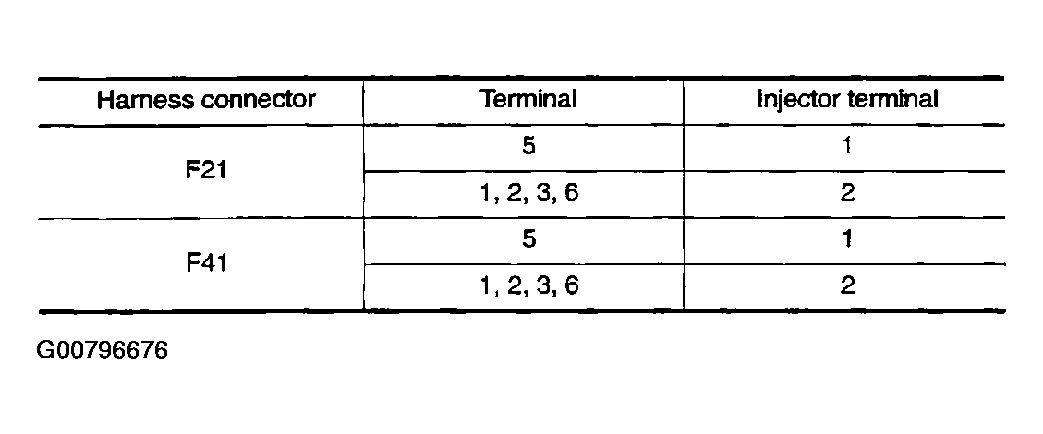

Fig 1: Checking Harness Continuity Between Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

Continuity should exist.

OK or NG

1. OK: GO TO 7.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.
