With CONSULT-II

1. Turn ignition switch ON.
2. Check "START SIGNAL" in "DATA MONITOR" mode with CONSULT-II under the following conditions.

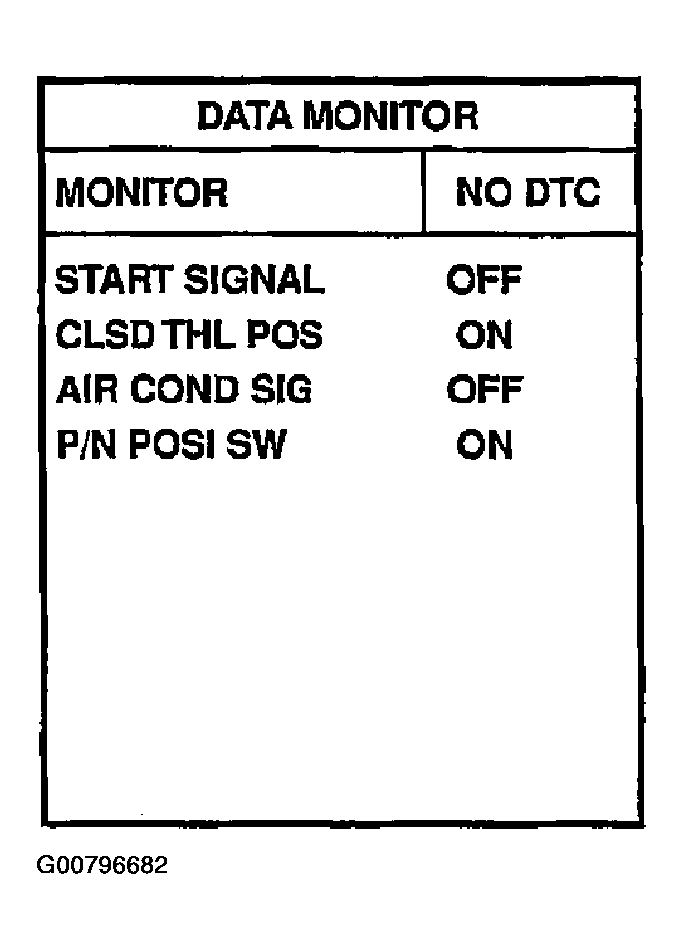

Fig 1: Scan Tool Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

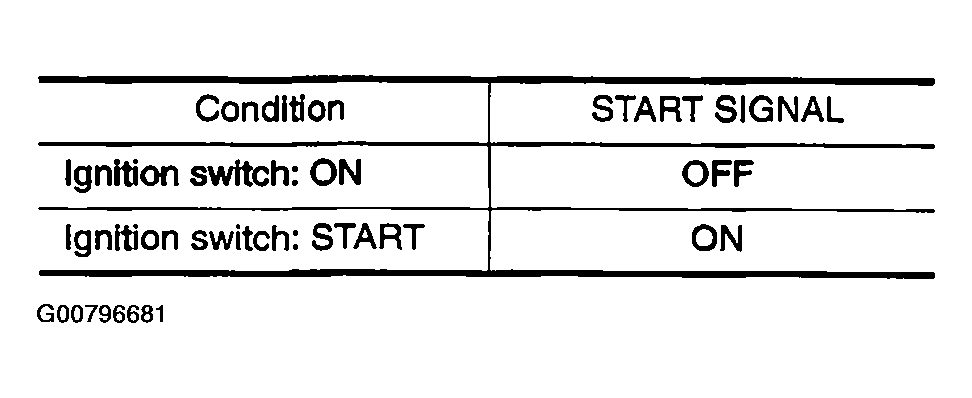

Fig 2: Inspecting Conditions Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: INSPECTION END
2. NG: GO TO 4. CHECK STARTING SYSTEM .
