Without CONSULT-II
Check voltage between ECM terminal 59 and ground under the following conditions.

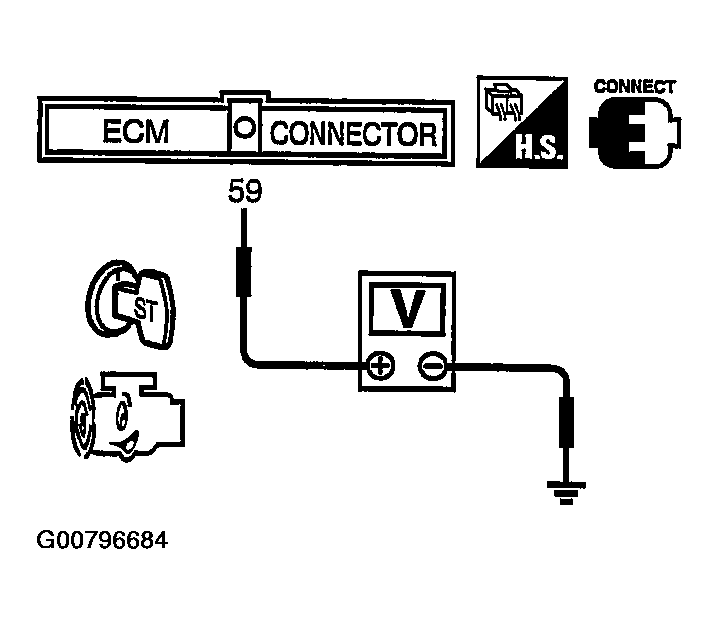

Fig 1: Checking Voltage Between ECM Terminal 59 & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

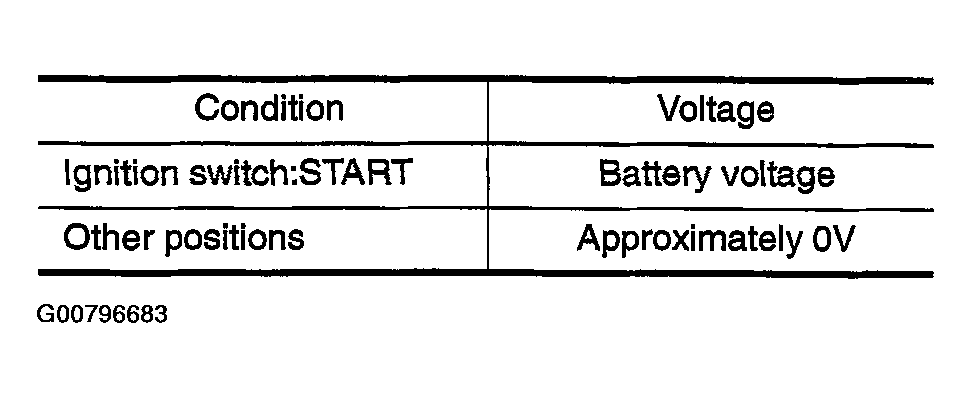

Fig 2: Inspecting Condition Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
OK:
INSPECTION END
NG: GO TO 4.
