Circuit Diagram
Fig 1: Locating Engine System Electrical Components (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Locating Engine System Electrical Components (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

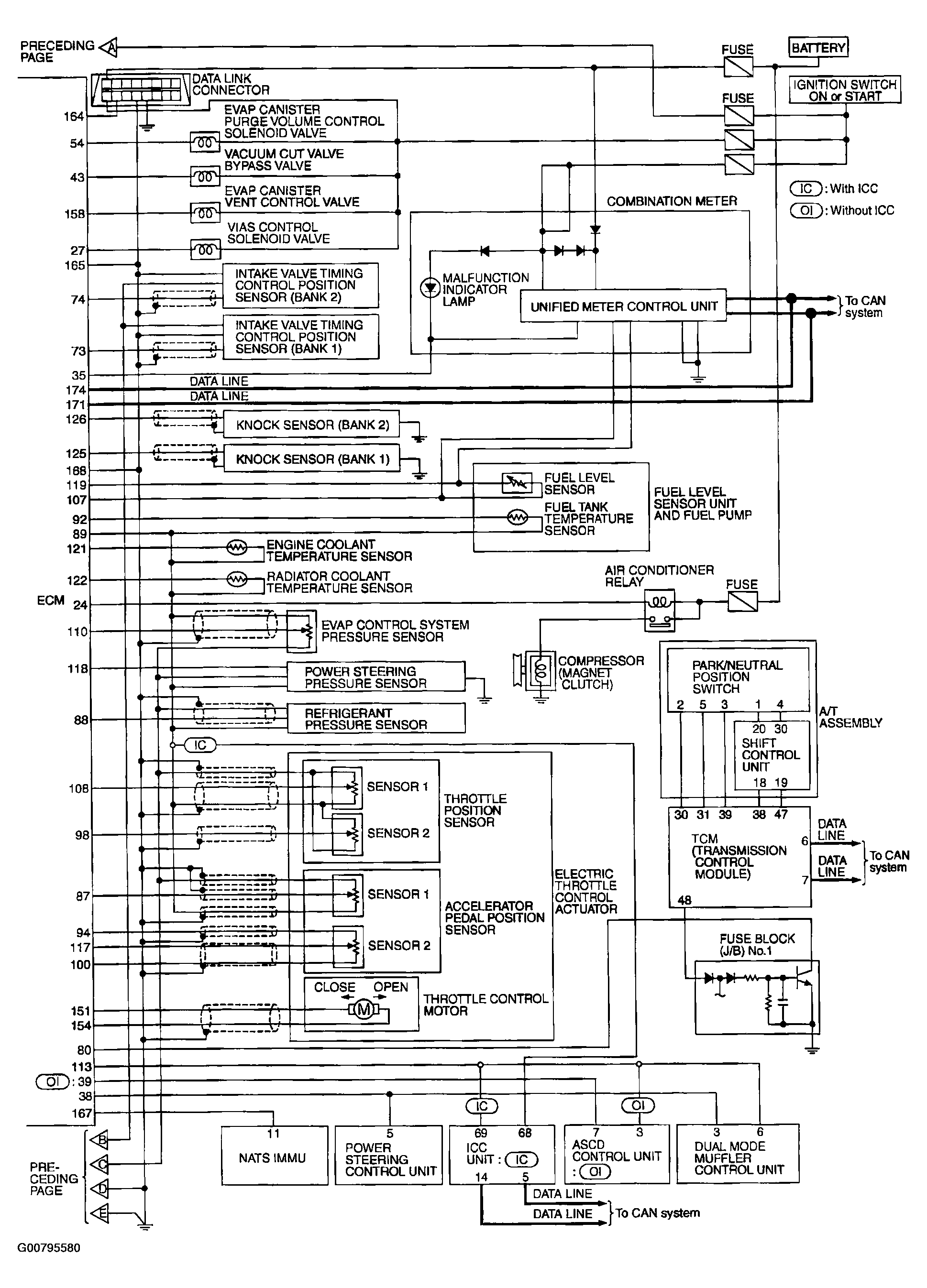

Courtesy of NISSAN MOTOR CO., U.S.A.

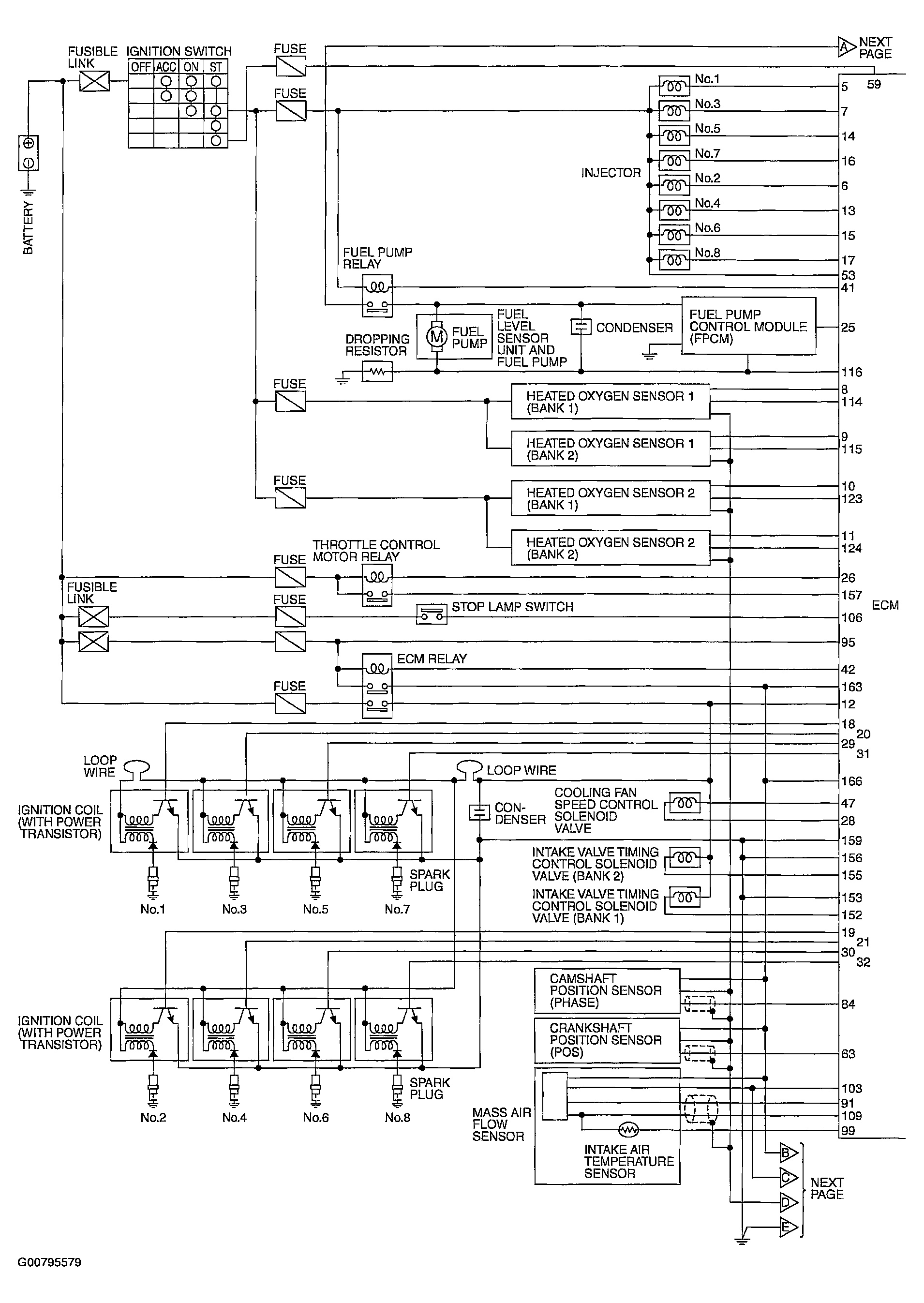

Courtesy of NISSAN MOTOR CO., U.S.A.
