DTC Work Support Mode

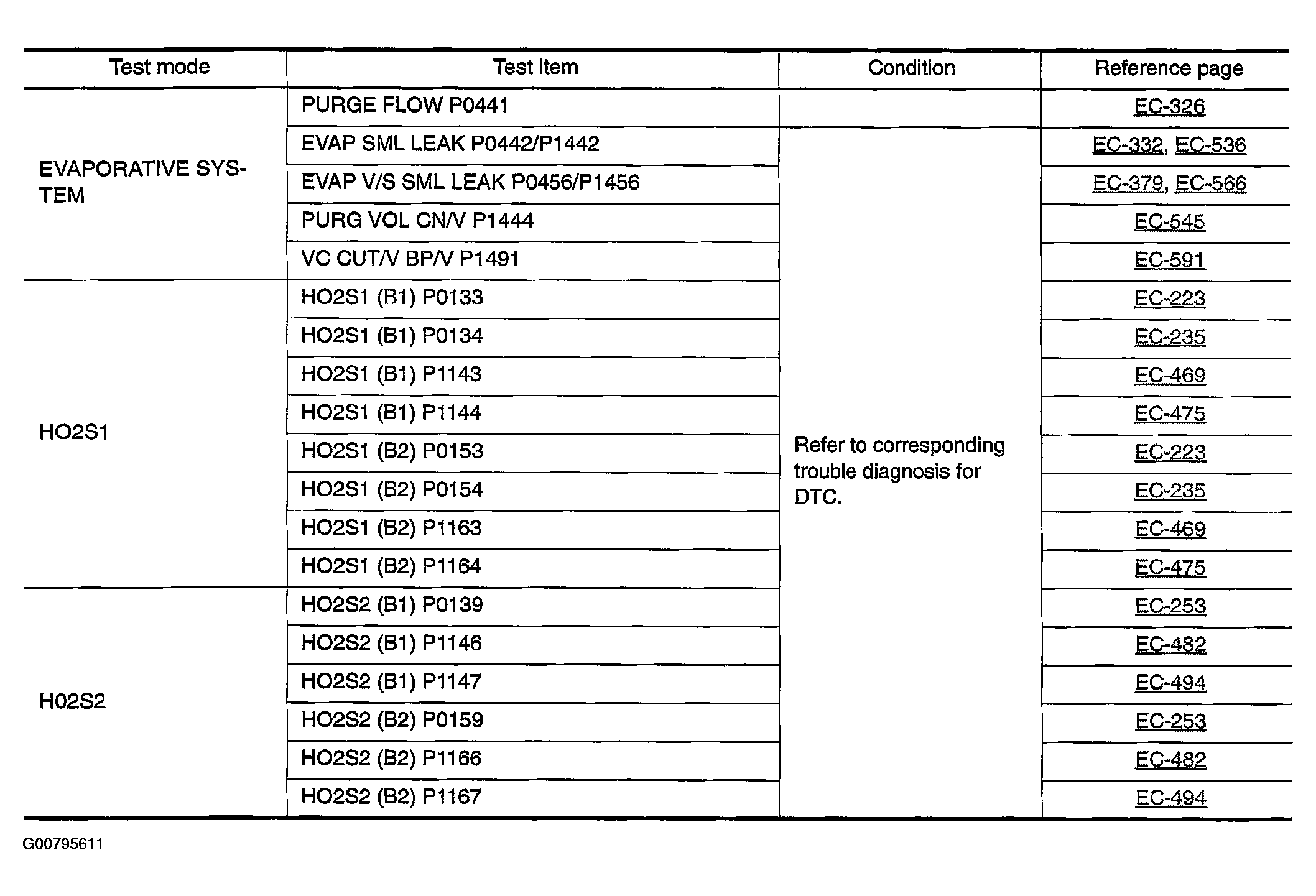

Fig 1: Identifying DTC Work Support Mode Information
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
