Monitored Item

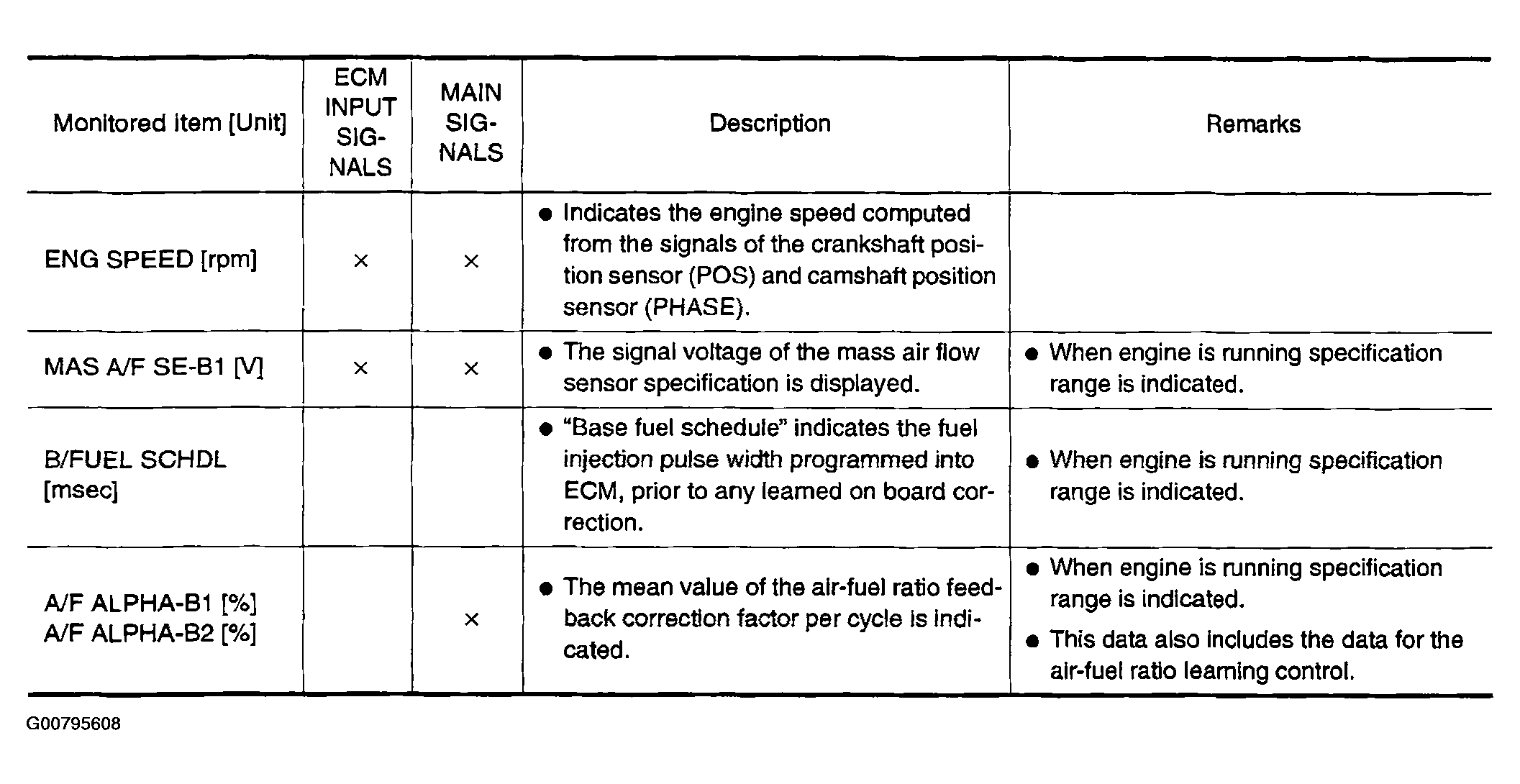

Fig 1: Identifying Monitored Items In Data Monitor Mode
G00795608Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
