Inspection Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under LH dash panel near the fuse box cover.
  3. Turn ignition switch ON.

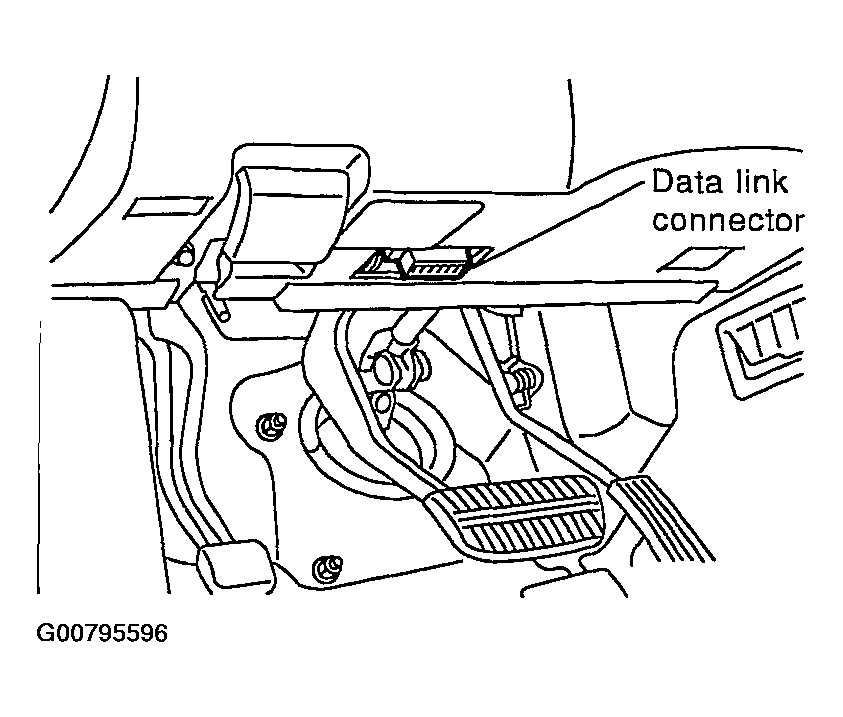

    Fig 1: Locating Data Link Connector
    G00795596Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START (NISSAN BASED VHCL)".
  5. Touch "ENGINE".

    If "ENGINE" is not indicated, go to  CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT  .

  6. Perform each diagnostic test mode according to each service procedure.

    For further information, see the CONSULT-II Operation Manual.
