ECM Inspection Table

Specification Data Are Reference Values And Are Measured Between Each Terminal & Ground. Pulse Signal Is Measured By Consult-II.

CAUTION: Do Not Use Ecm Ground Terminals When Measuring Input/Output Voltage. Doing So May Result In Damage To The Ecm's Transistor. Use A Ground Other Than Ecm Terminals, Such As The Ground.

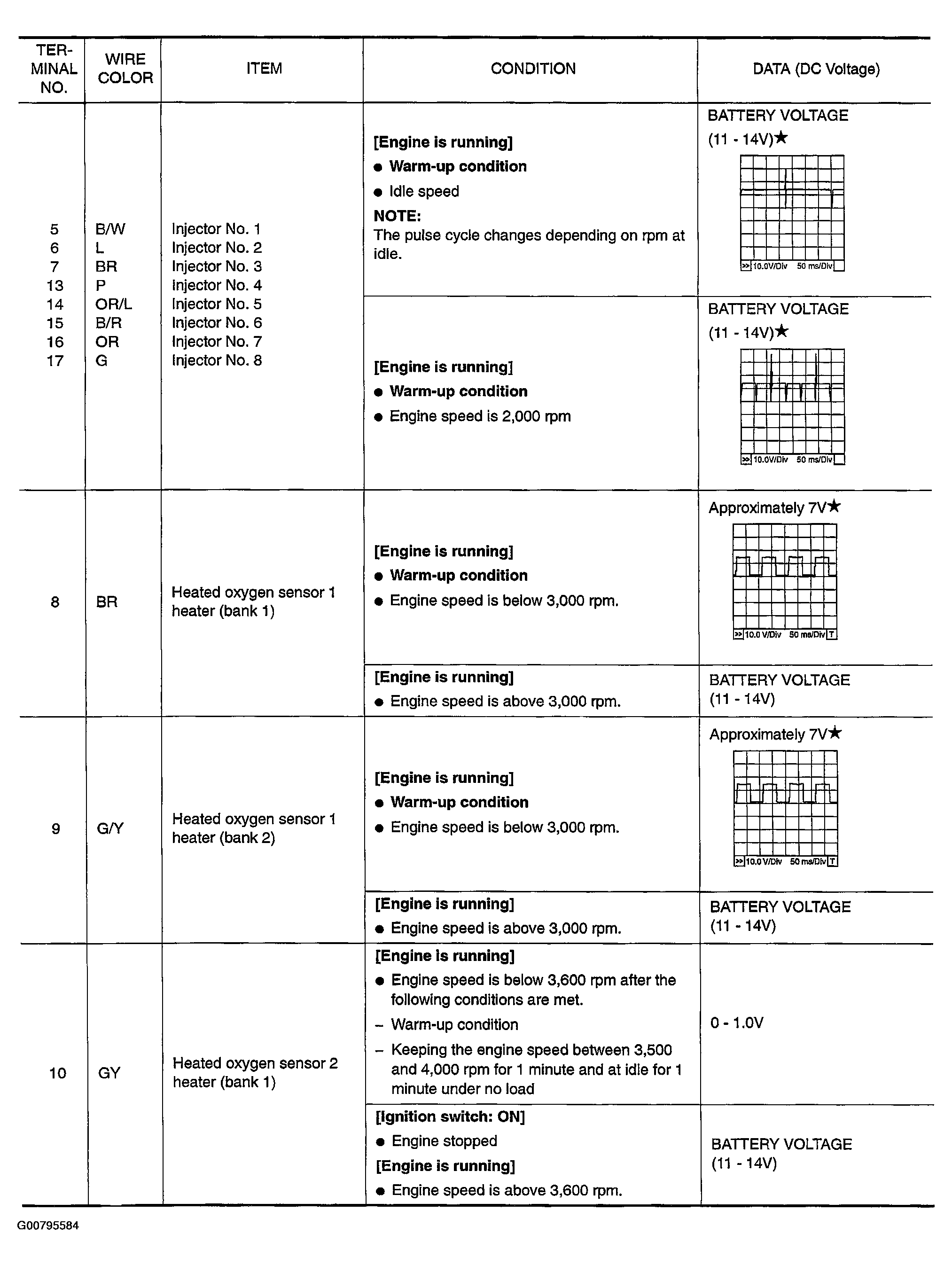

Fig 1: Inspecting ECM Condition & Voltage Input/Output (1 Of 9)

G00795584

Courtesy of NISSAN MOTOR CO., U.S.A.

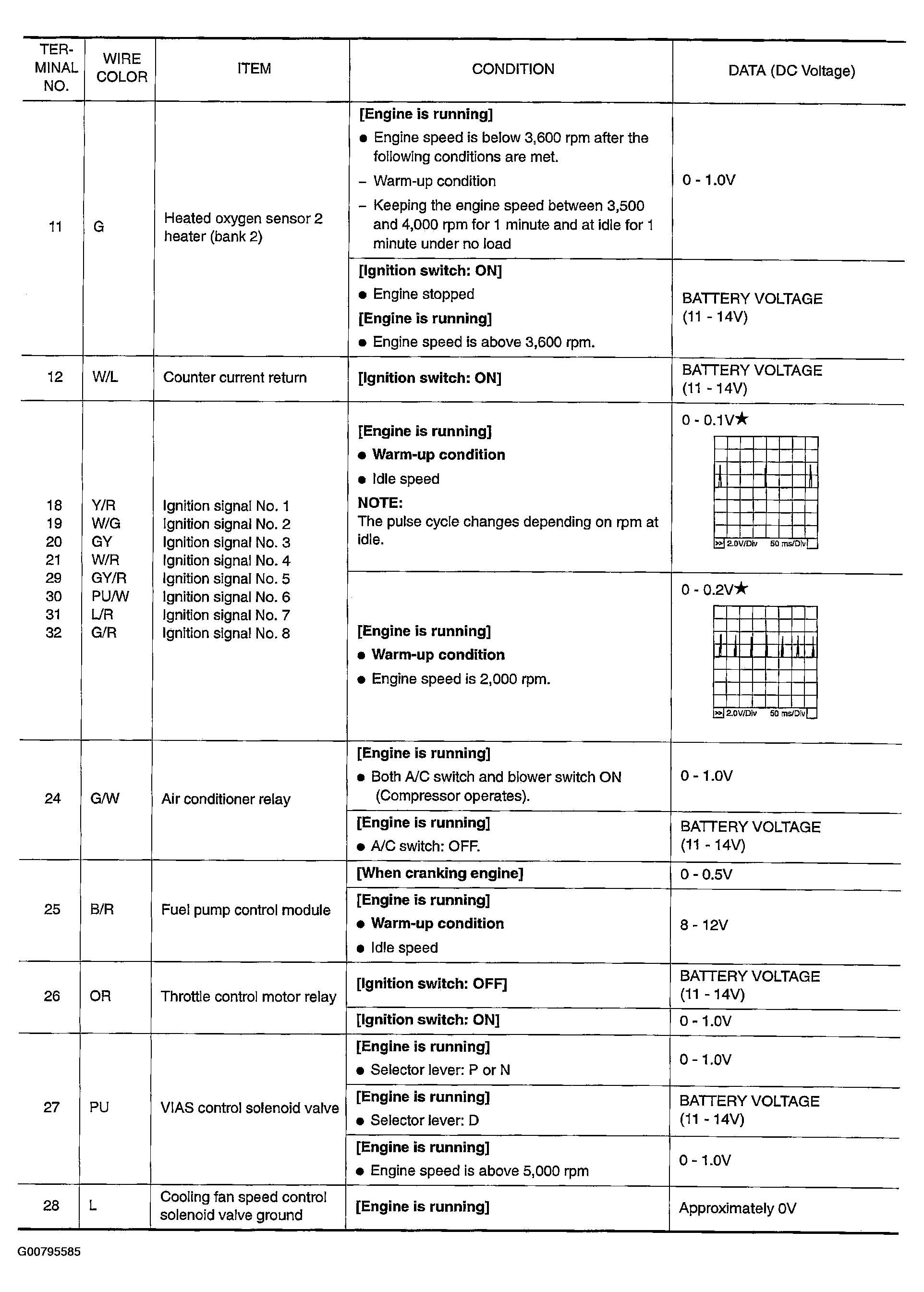

Fig 2: Inspecting ECM Condition & Voltage Input/Output (2 Of 9)

G00795585

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Inspecting ECM Condition & Voltage Input/Output (3 Of 9)

G00795586

Courtesy of NISSAN MOTOR CO., U.S.A.

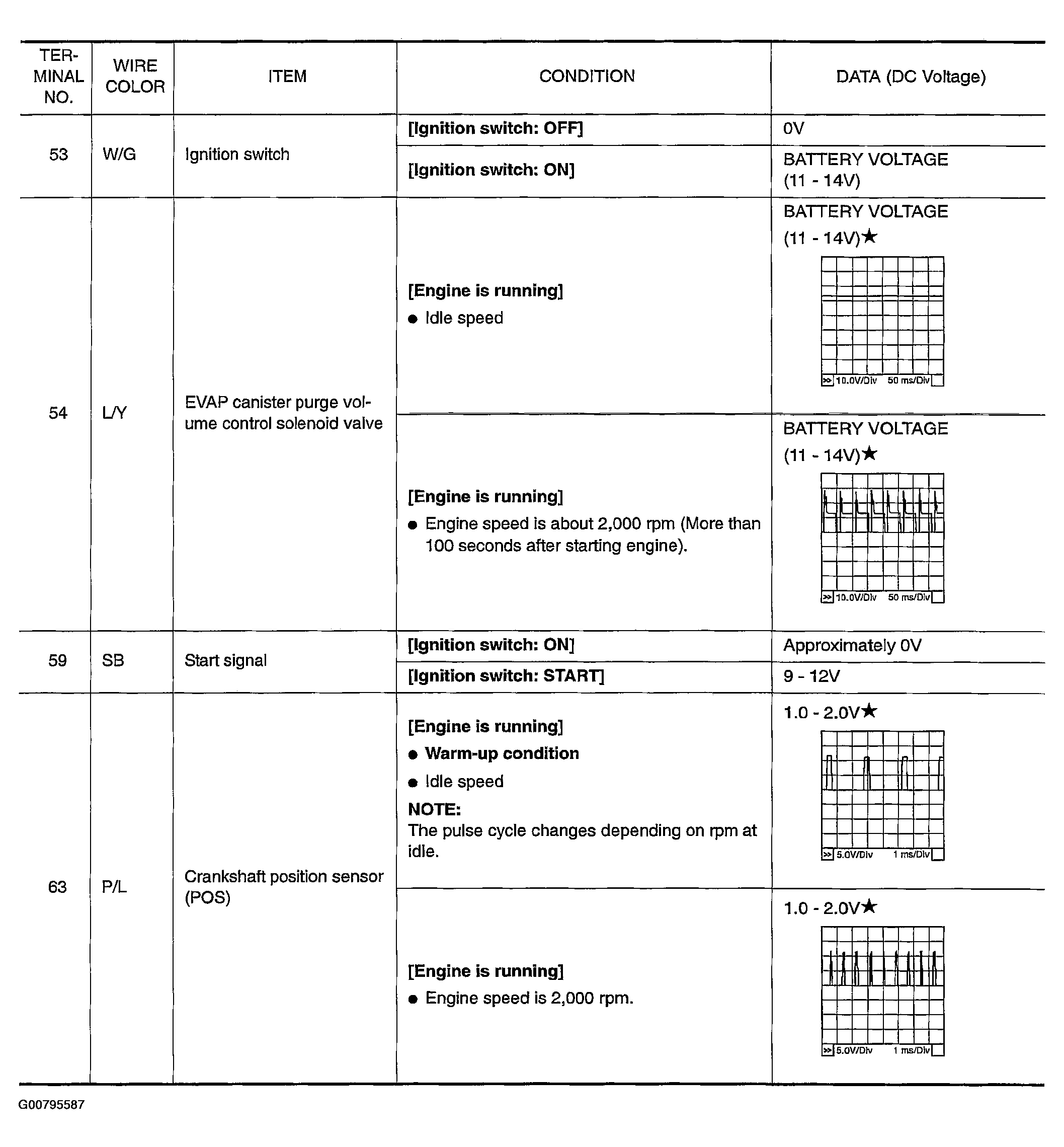

Fig 4: Inspecting ECM Condition & Voltage Input/Output (4 Of 9)

G00795587

Courtesy of NISSAN MOTOR CO., U.S.A.

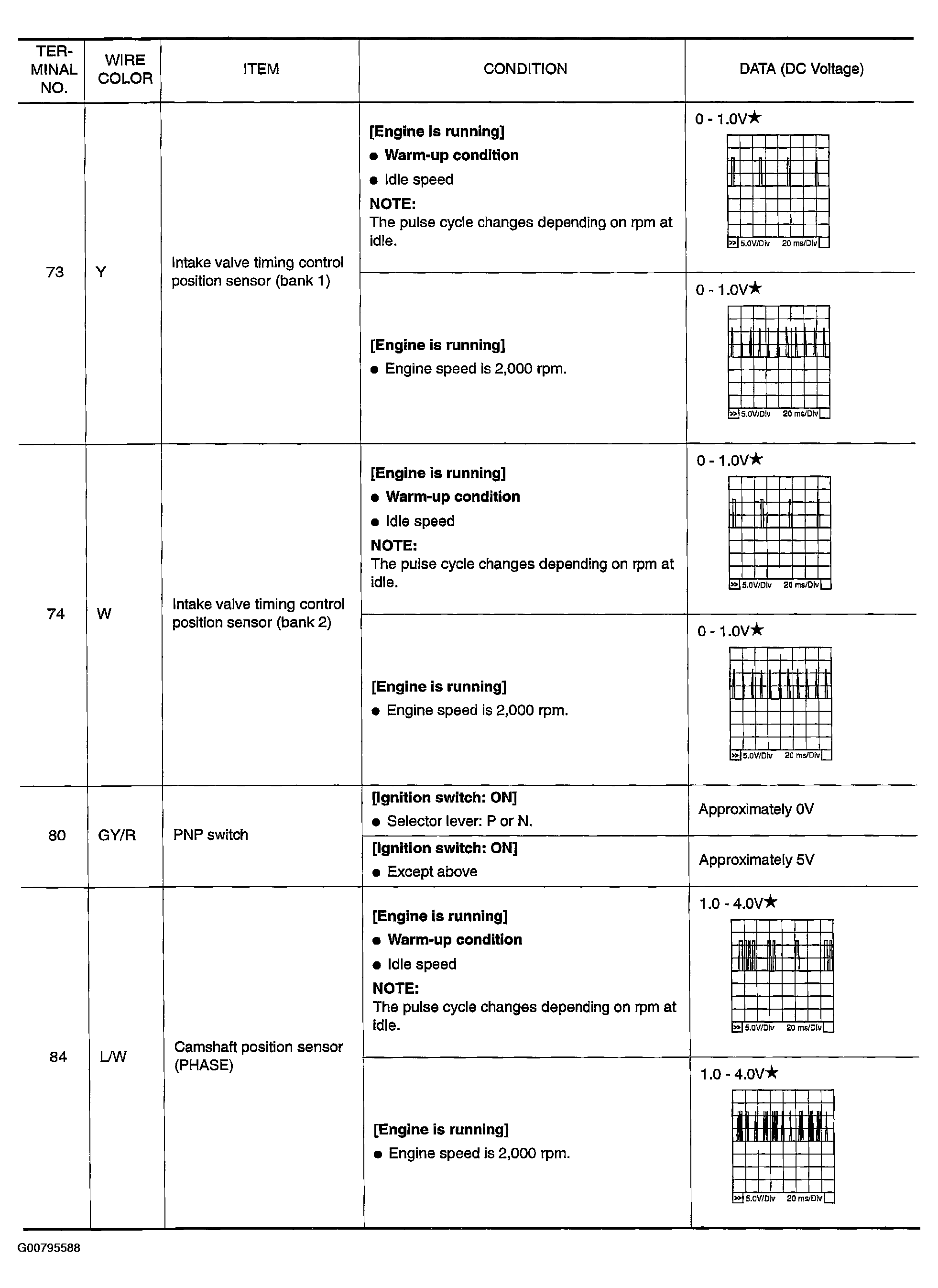

Fig 5: Inspecting ECM Condition & Voltage Input/Output (5 Of 9)

G00795588

Courtesy of NISSAN MOTOR CO., U.S.A.

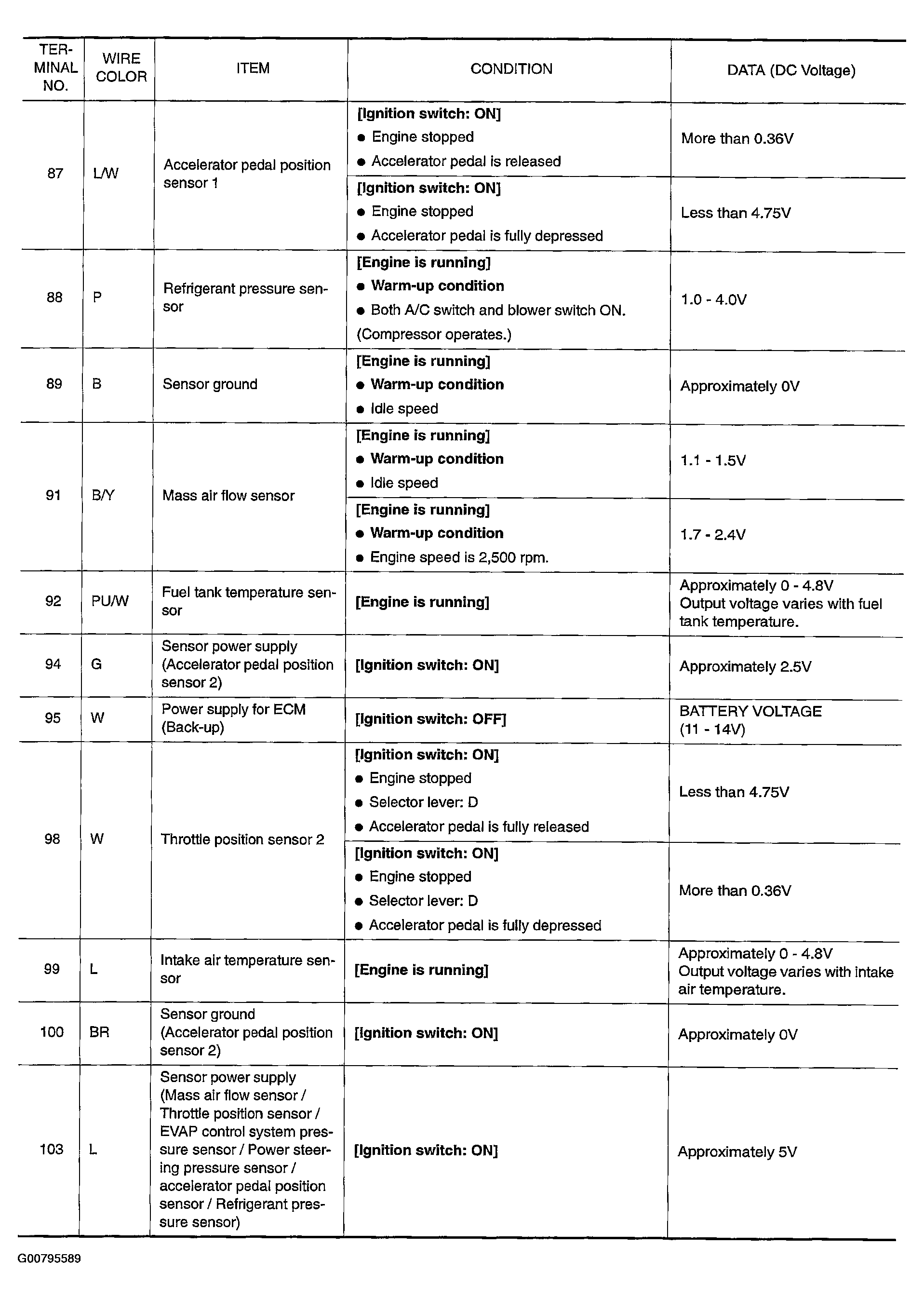

Fig 6: Inspecting ECM Condition & Voltage Input/Output (6 Of 9)

G00795589

Courtesy of NISSAN MOTOR CO., U.S.A.

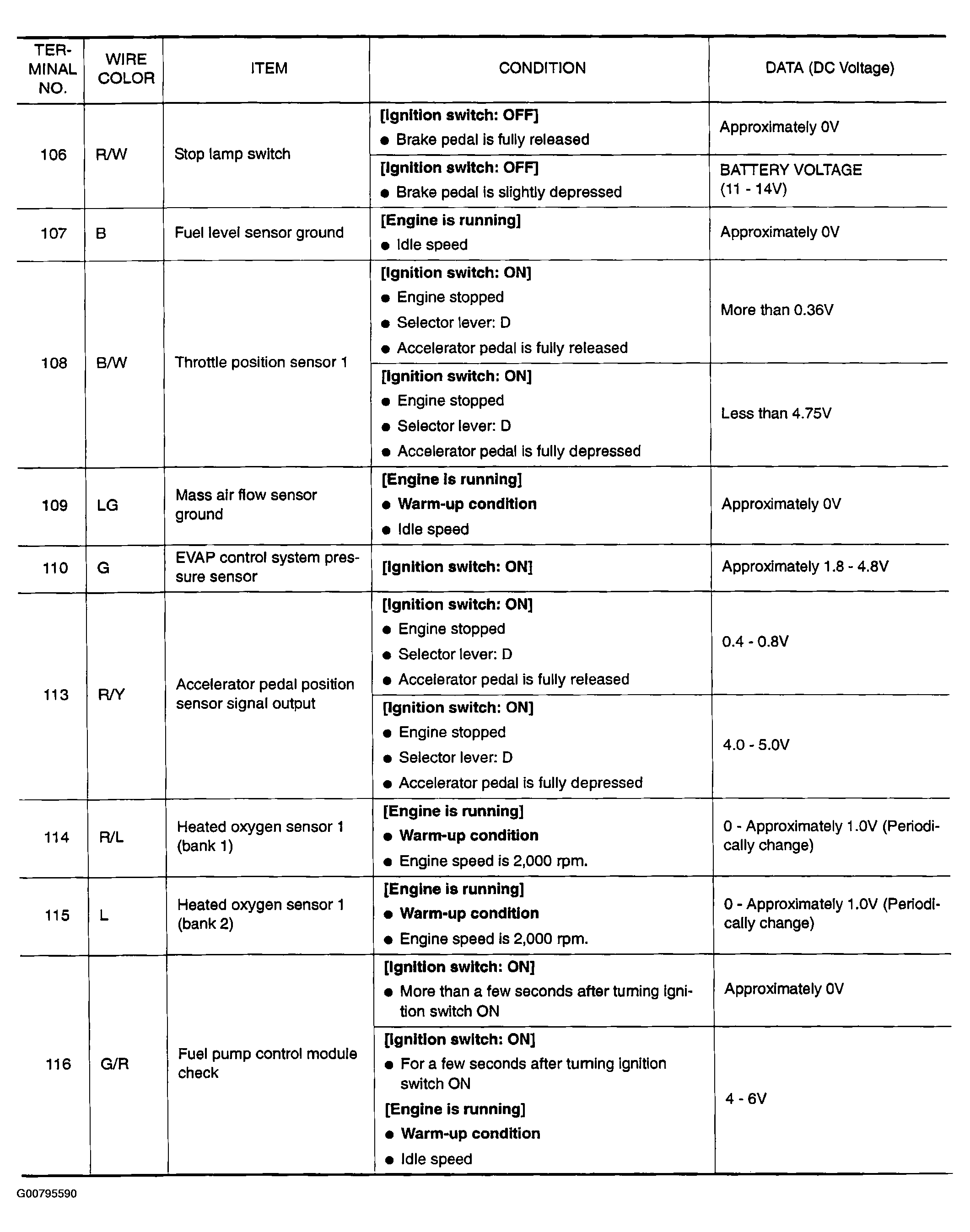

Fig 7: Inspecting ECM Condition & Voltage Input/Output (7 Of 9)

G00795590

Courtesy of NISSAN MOTOR CO., U.S.A.

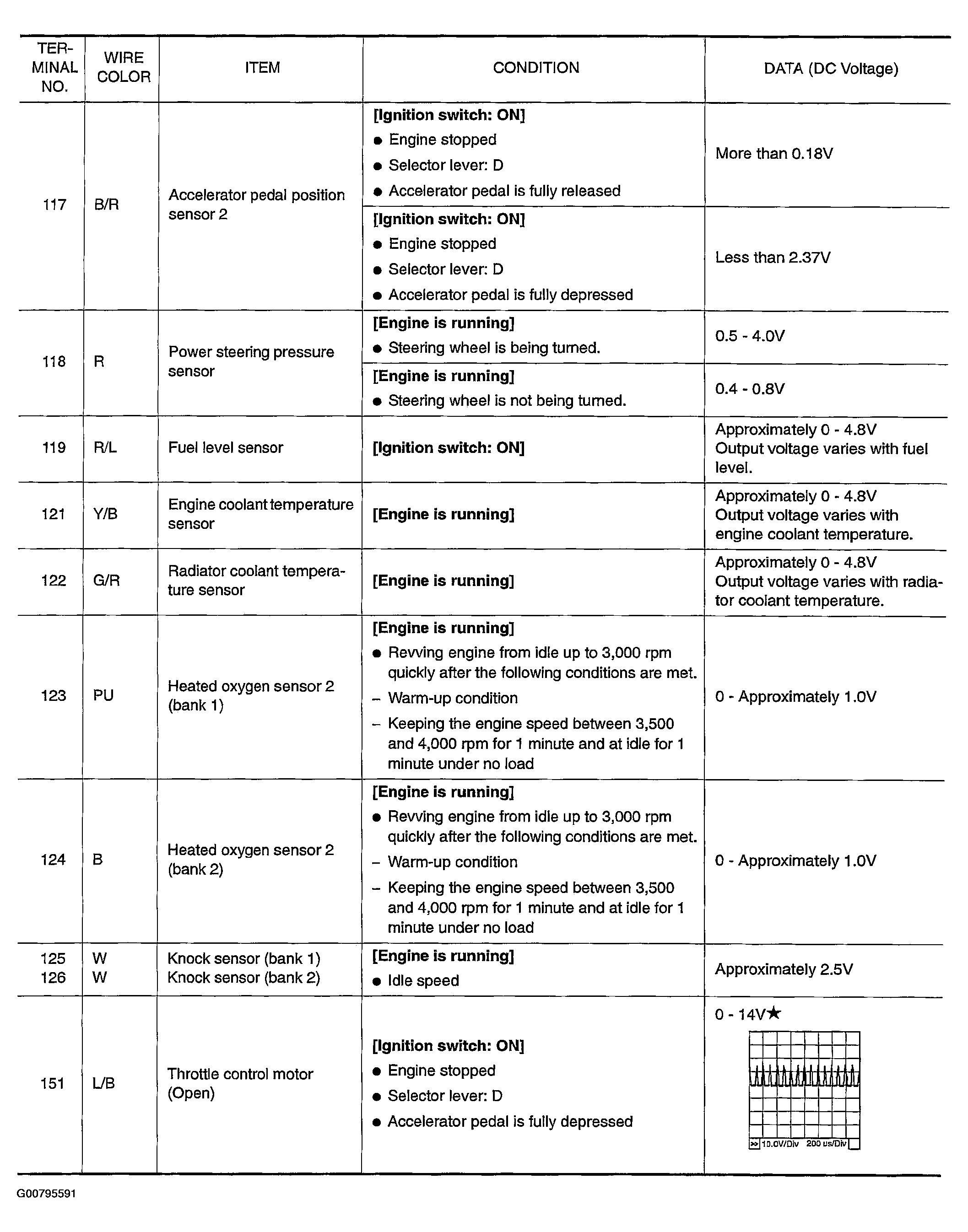

Fig 8: Inspecting ECM Condition & Voltage Input/Output (8 Of 9)

G00795591

Courtesy of NISSAN MOTOR CO., U.S.A.

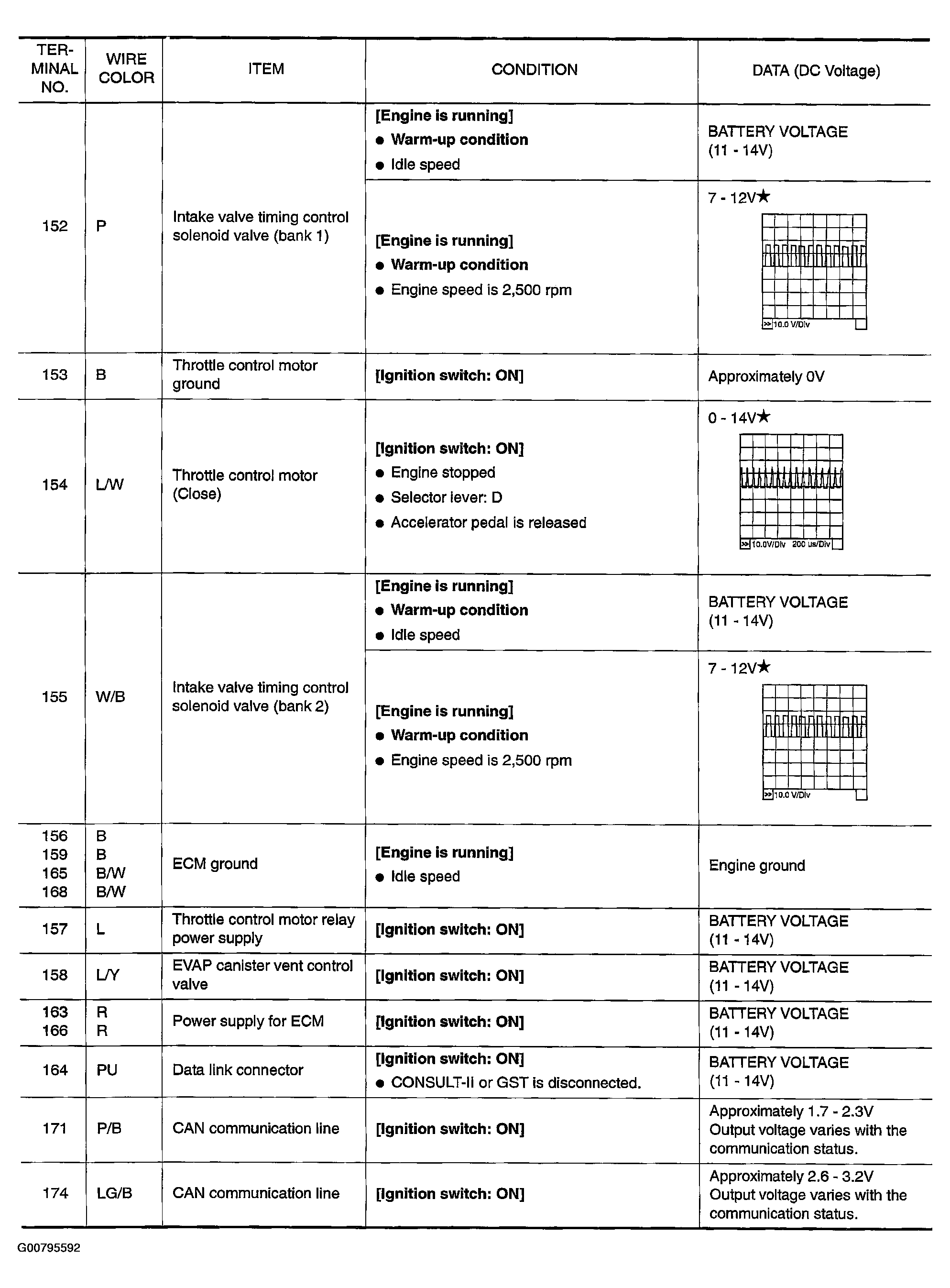

Fig 9: Inspecting ECM Condition & Voltage Input/Output (9 Of 9)

G00795592

Courtesy of NISSAN MOTOR CO., U.S.A.
