Engine Control Component Parts Location

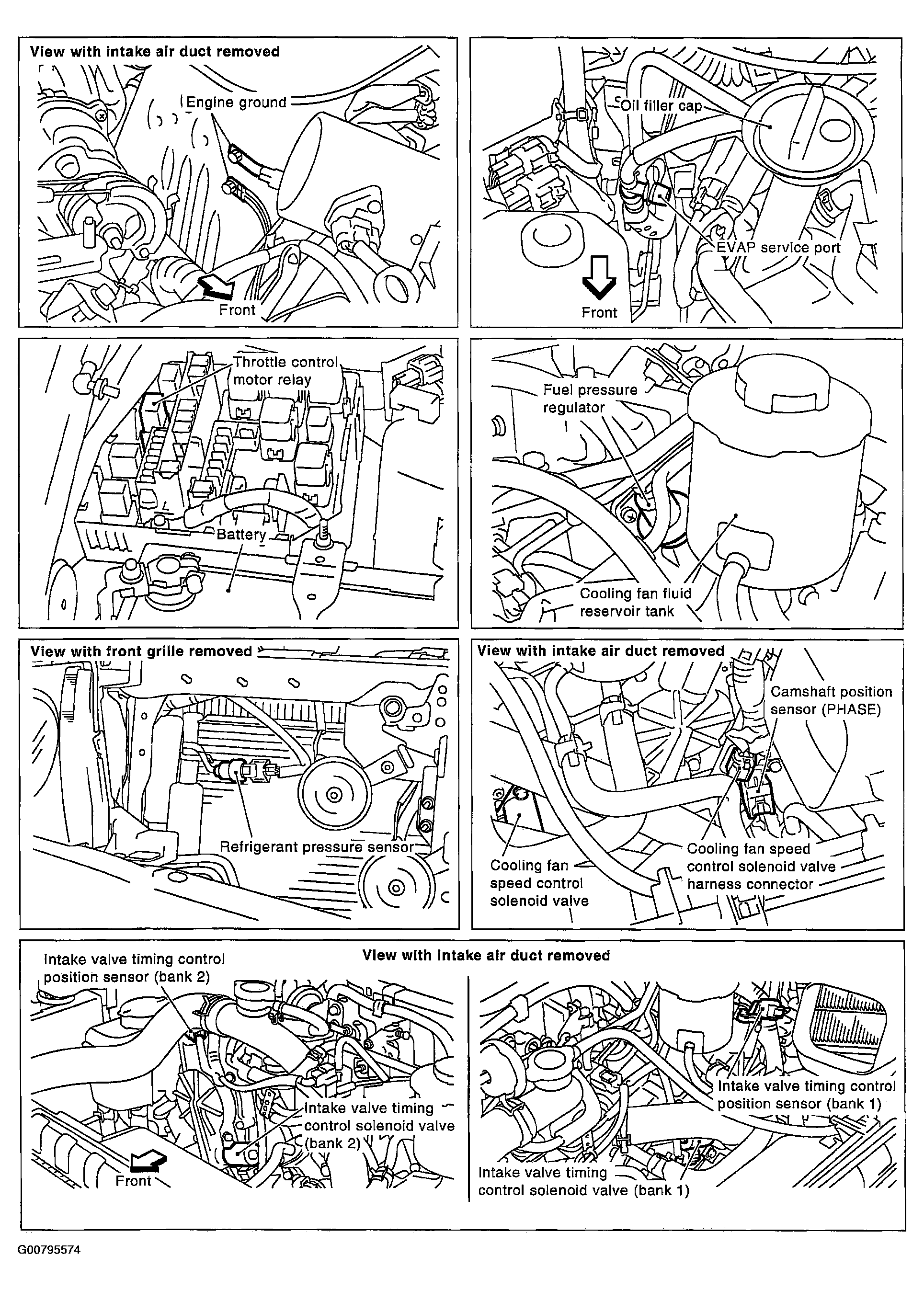

Fig 1: Locating Engine Control Parts & Components (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

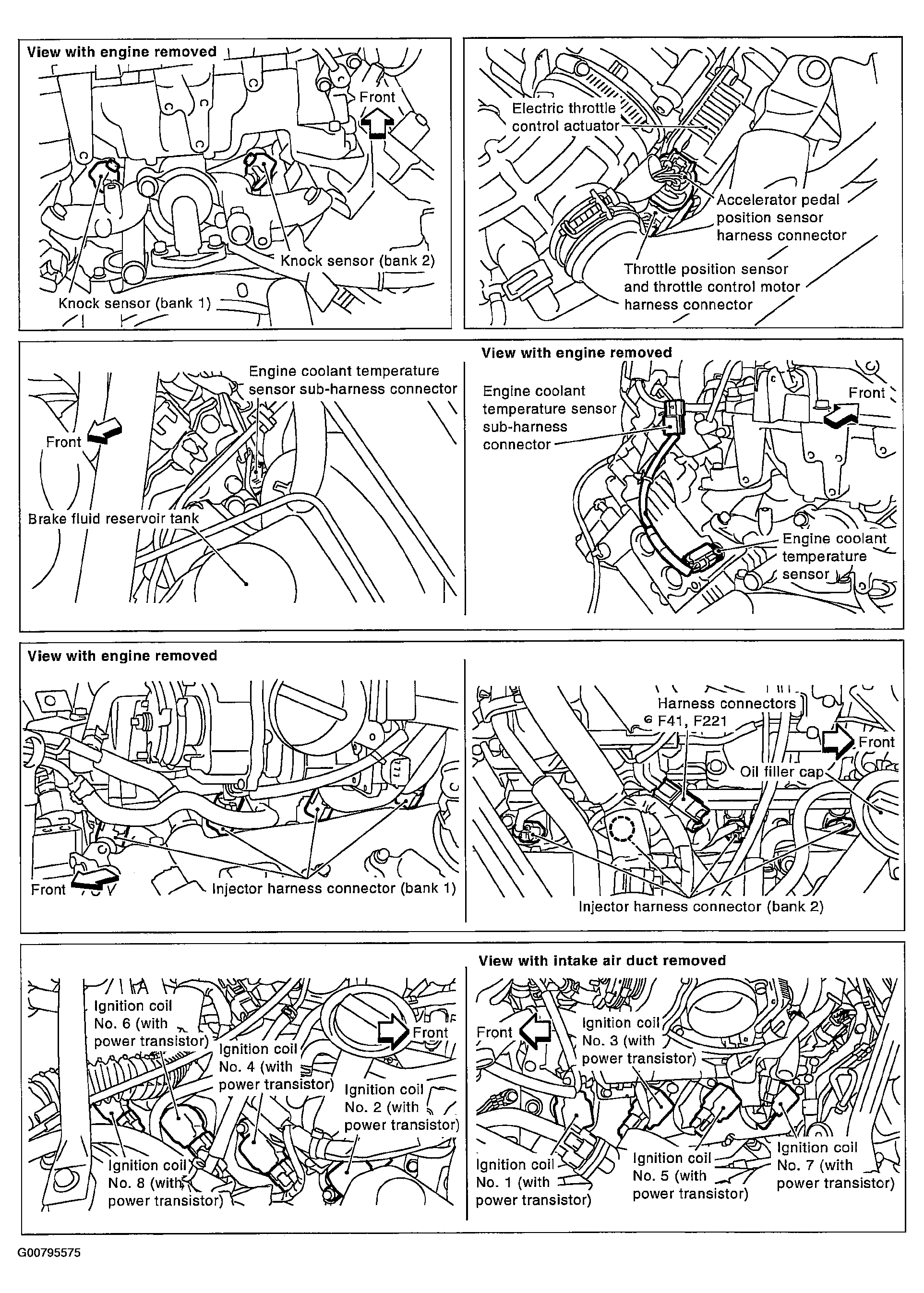

Fig 2: Locating Engine Control Parts & Components (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

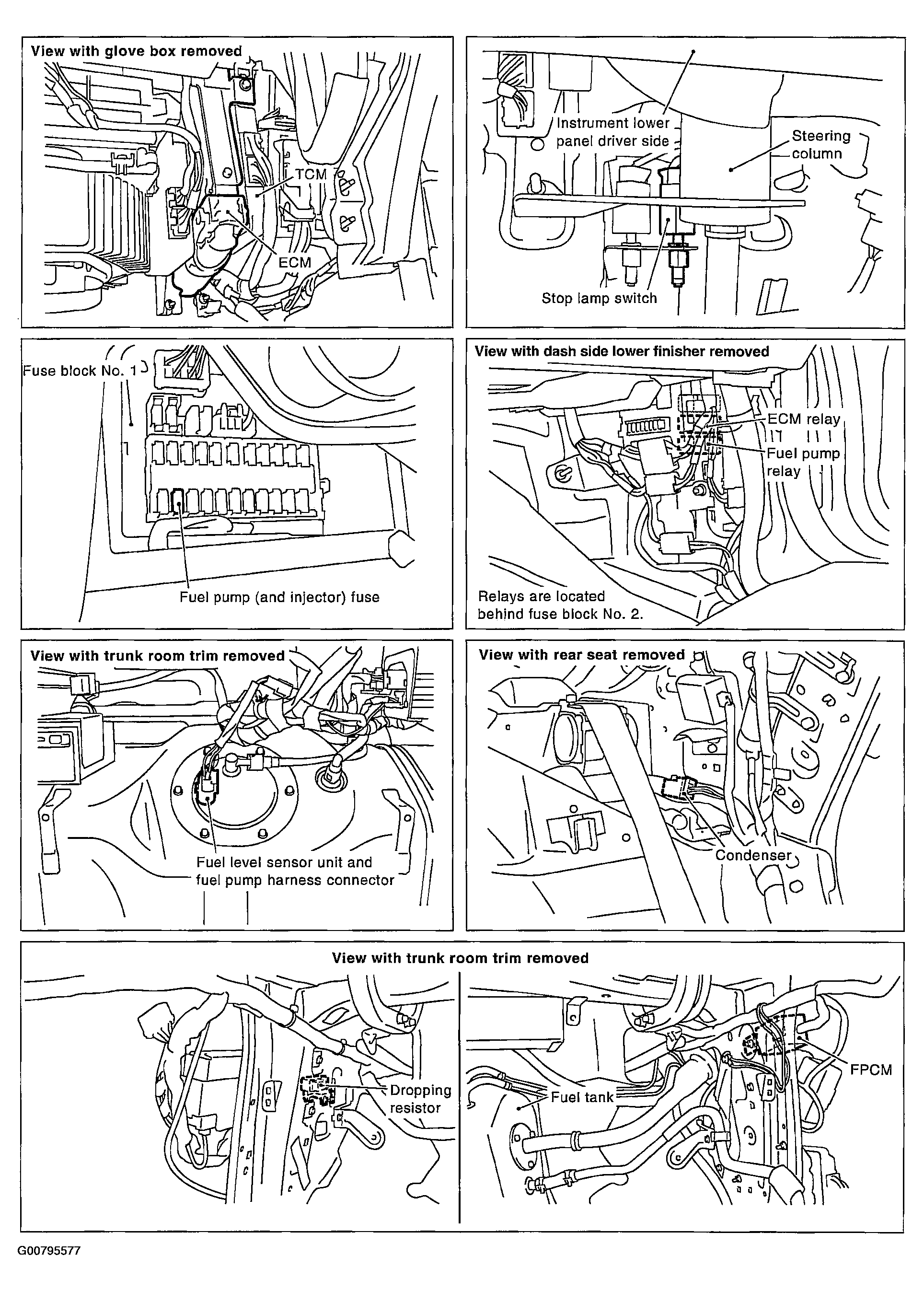

Fig 3: Locating Engine Control Parts & Components (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

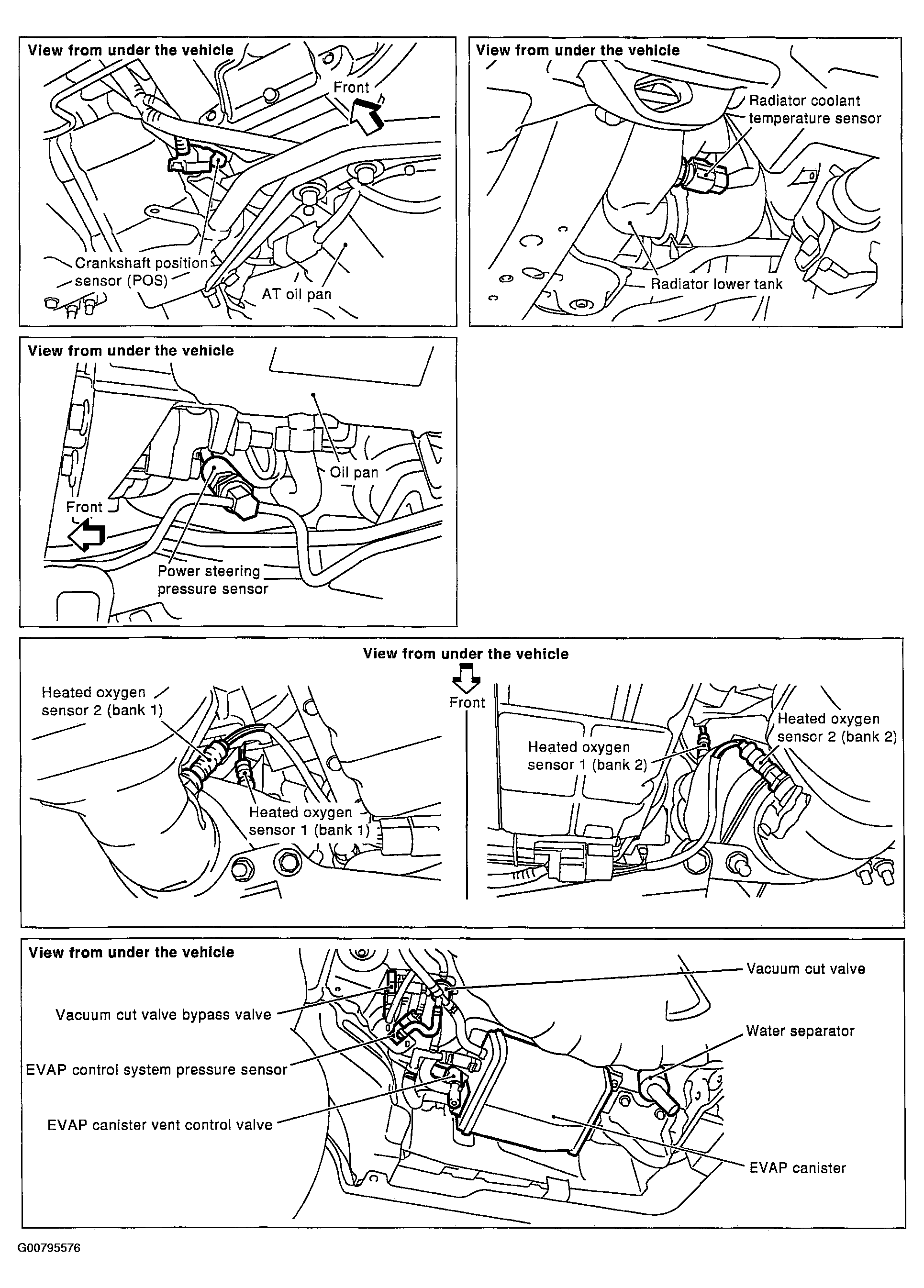

Fig 4: Locating Engine Control Parts & Components (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

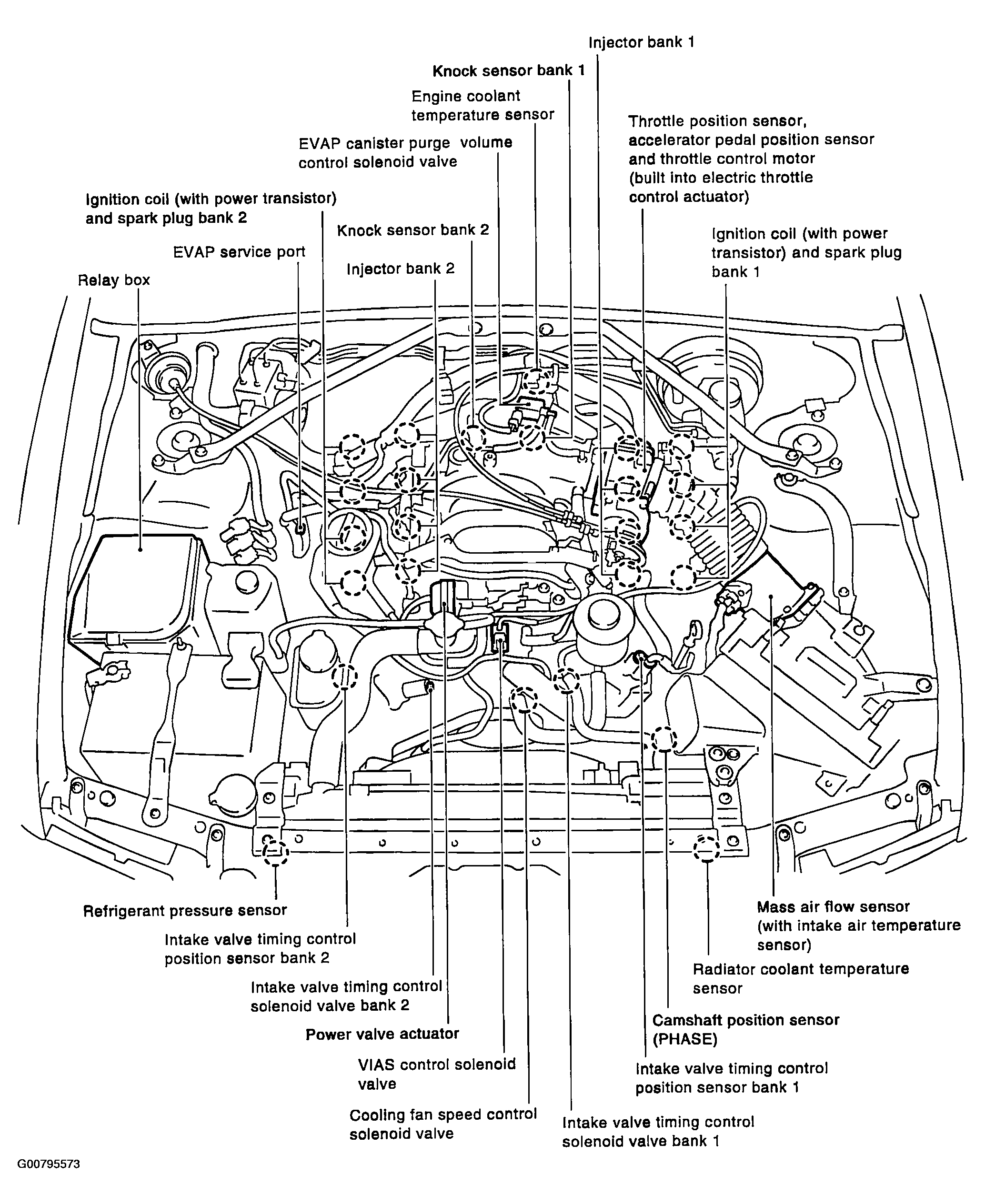

Fig 5: Locating Engine Control Parts & Components (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

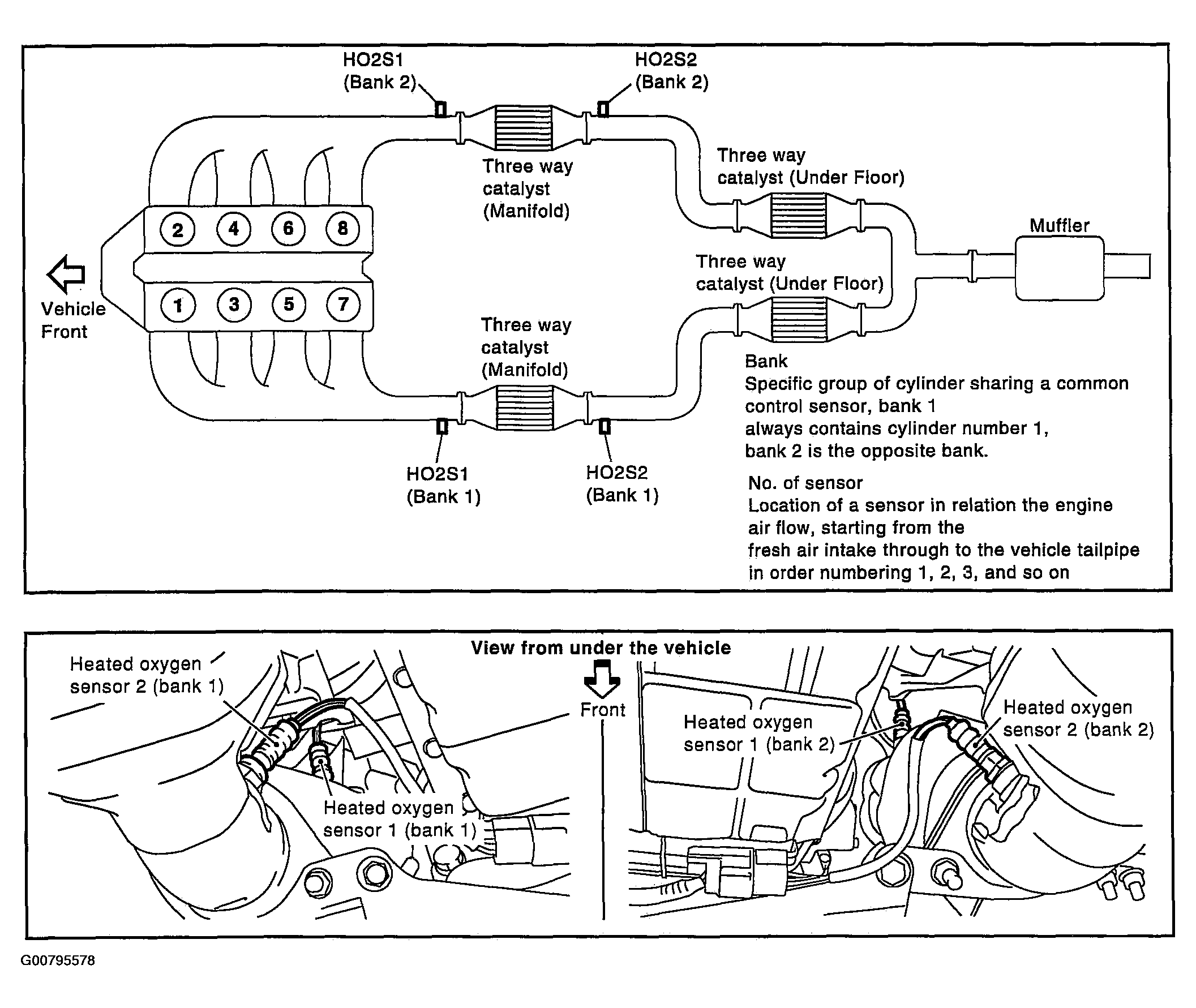

Fig 6: Locating Engine Control Parts & Components (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
