Generic Scan Tool (GST) Function: Function

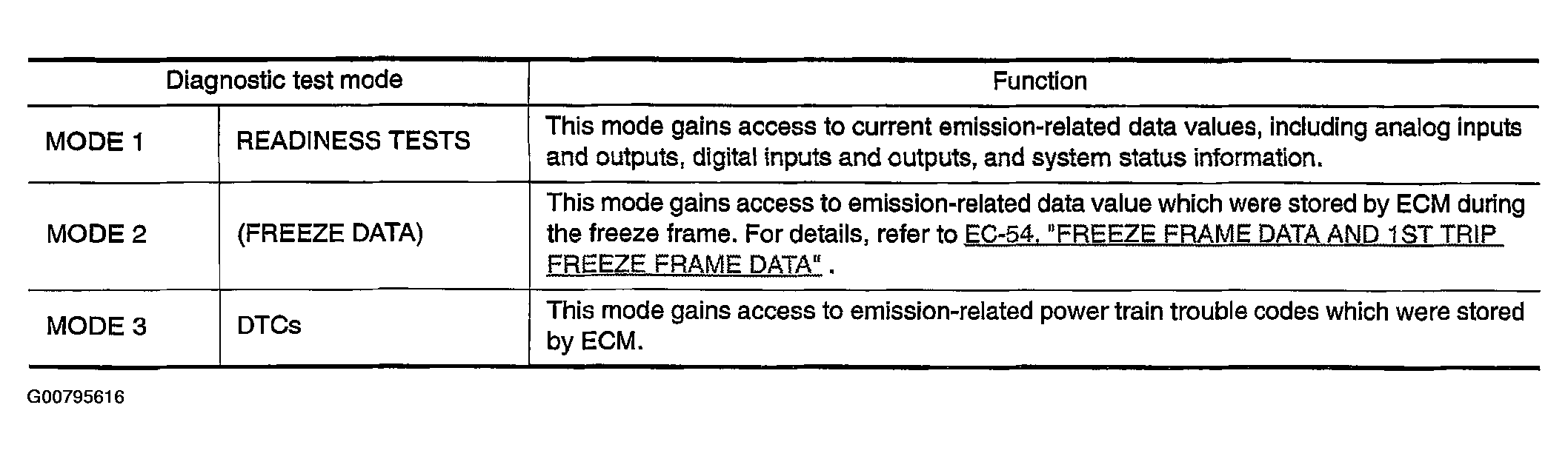

Fig 1: Identifying Function Mode Information (1 Of 2)
G00795616Courtesy of NISSAN MOTOR CO., U.S.A.

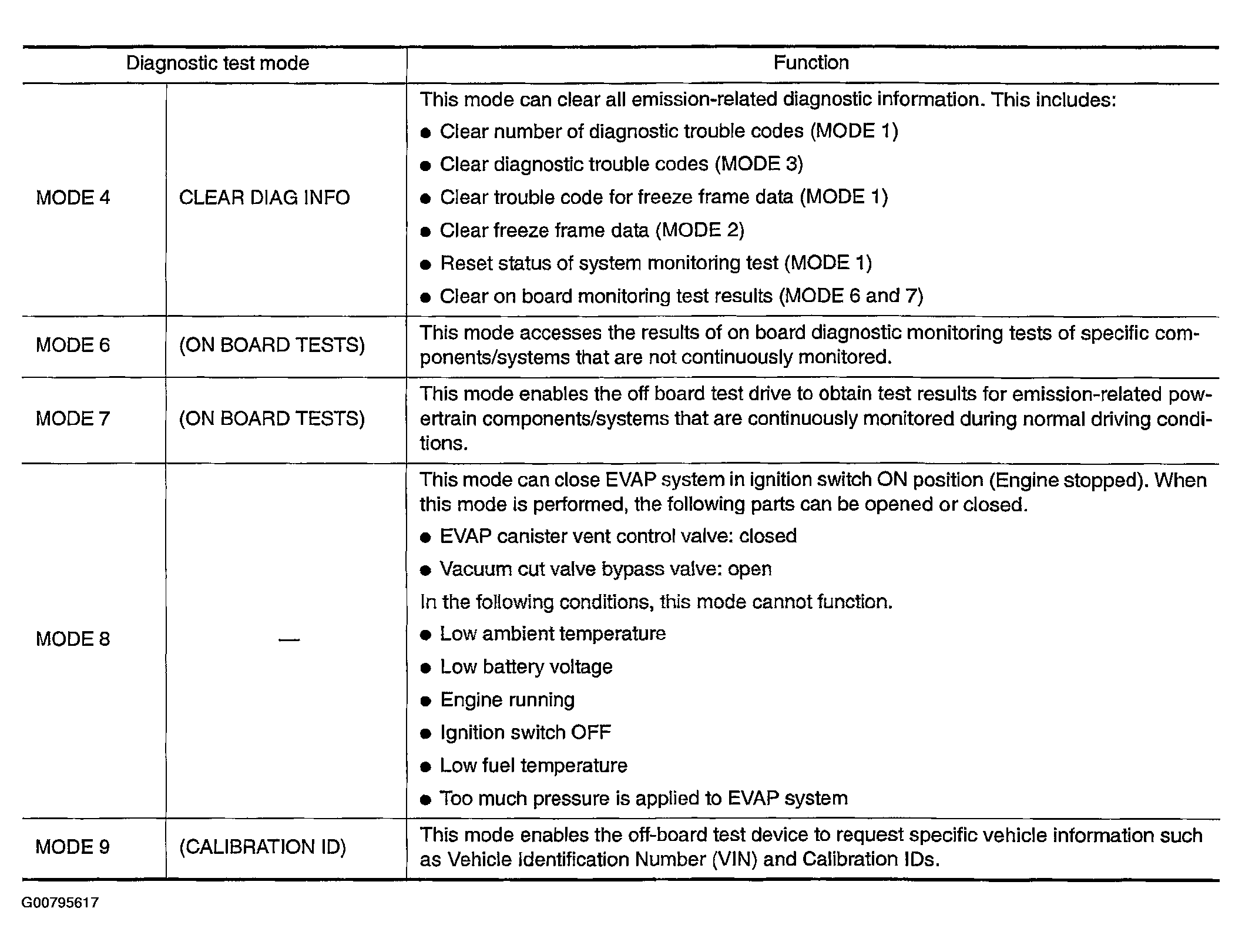

Fig 2: Identifying Function Mode Information (2 Of 2)
G00795617Courtesy of NISSAN MOTOR CO., U.S.A.
