Flow Chart

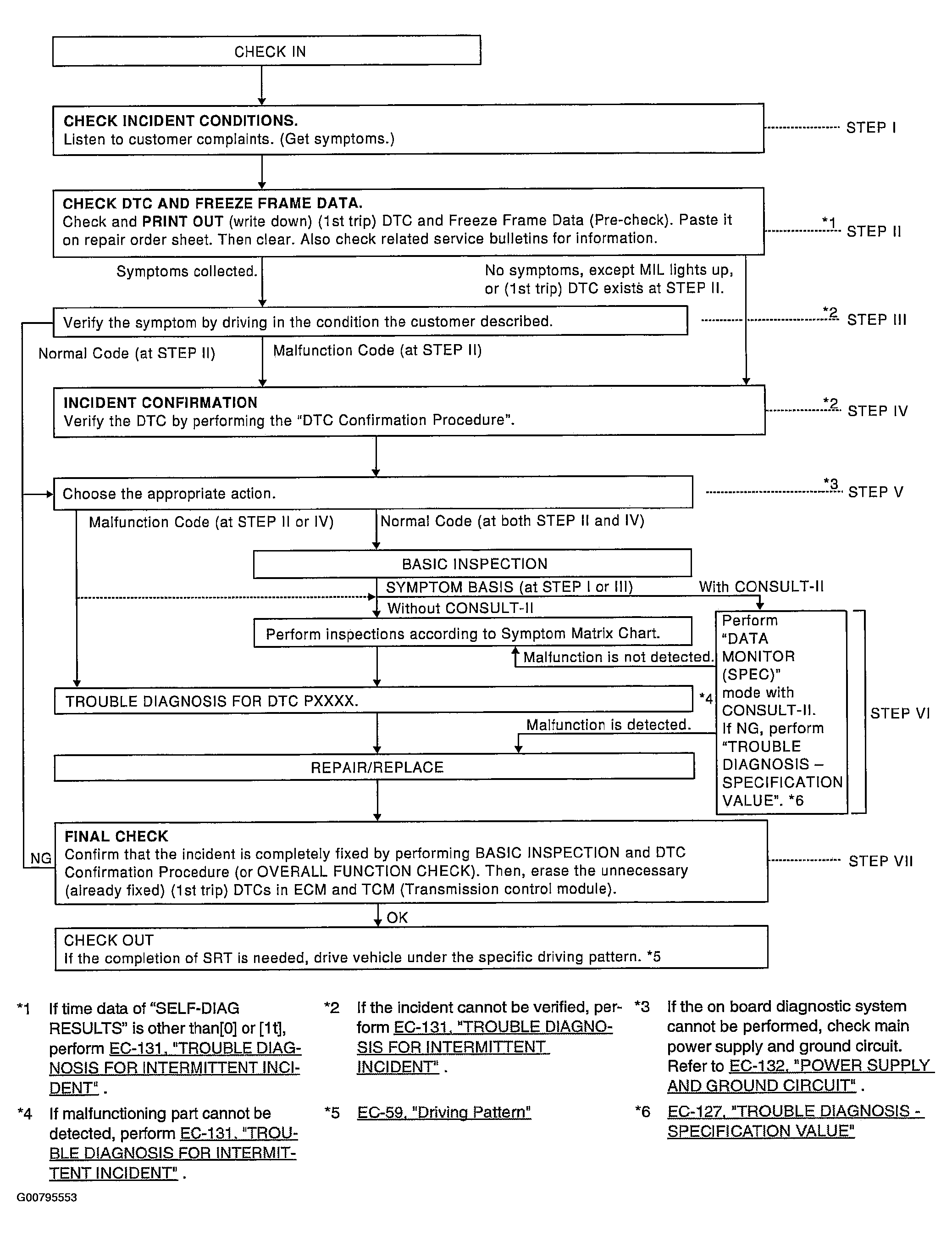

Fig 1: Identifying Work Flow DTC Information
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
