With GST

Check air passage continuity and operation delay time under the following conditions.

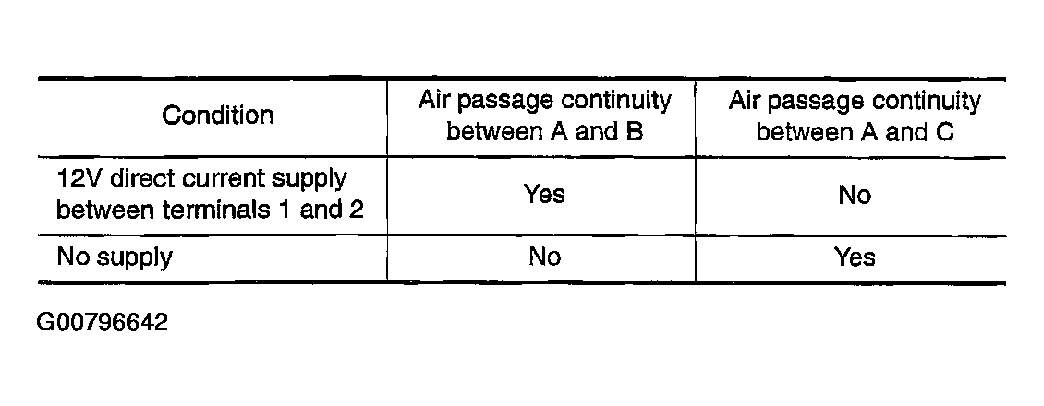

Fig 1: Inspecting Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Operation takes less than 1 second.

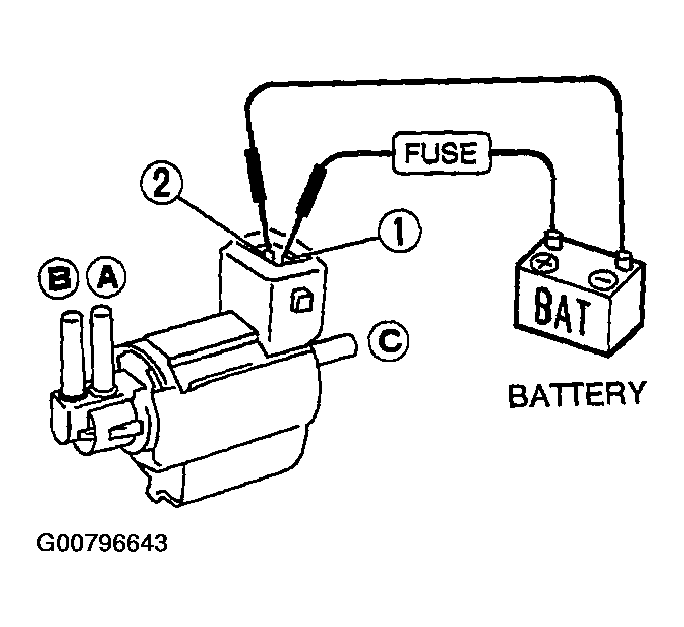

Fig 2: Manually Checking Solenoid

Courtesy of NISSAN MOTOR CO., U.S.A.
