Method A

  1. Attach timing light to loop wire as shown.
  2. Check ignition timing.

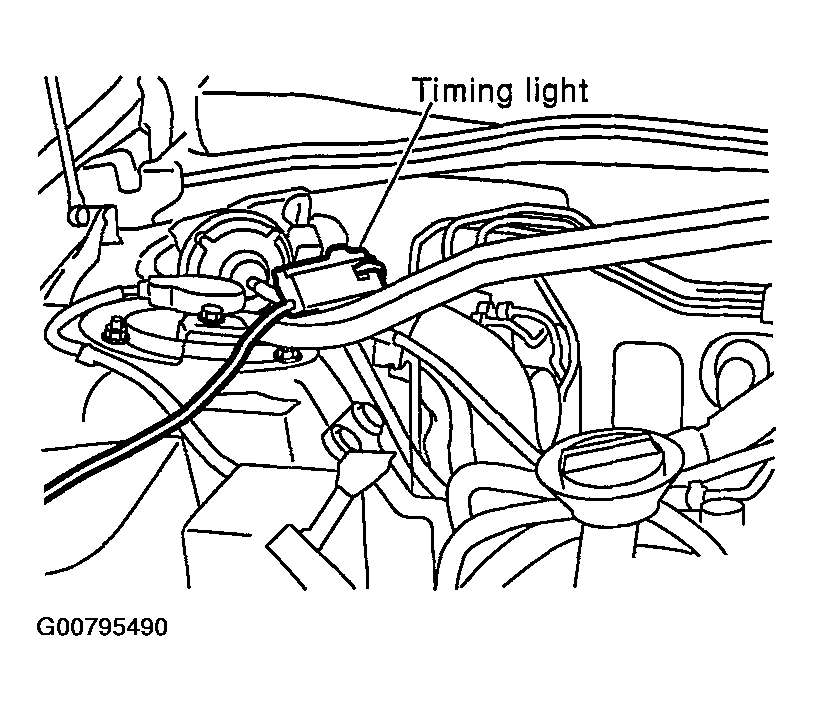

Fig 1: Checking Ignition Timing Using Timing Light
G00795490Courtesy of NISSAN MOTOR CO., U.S.A.
