Consult-II Function: Function

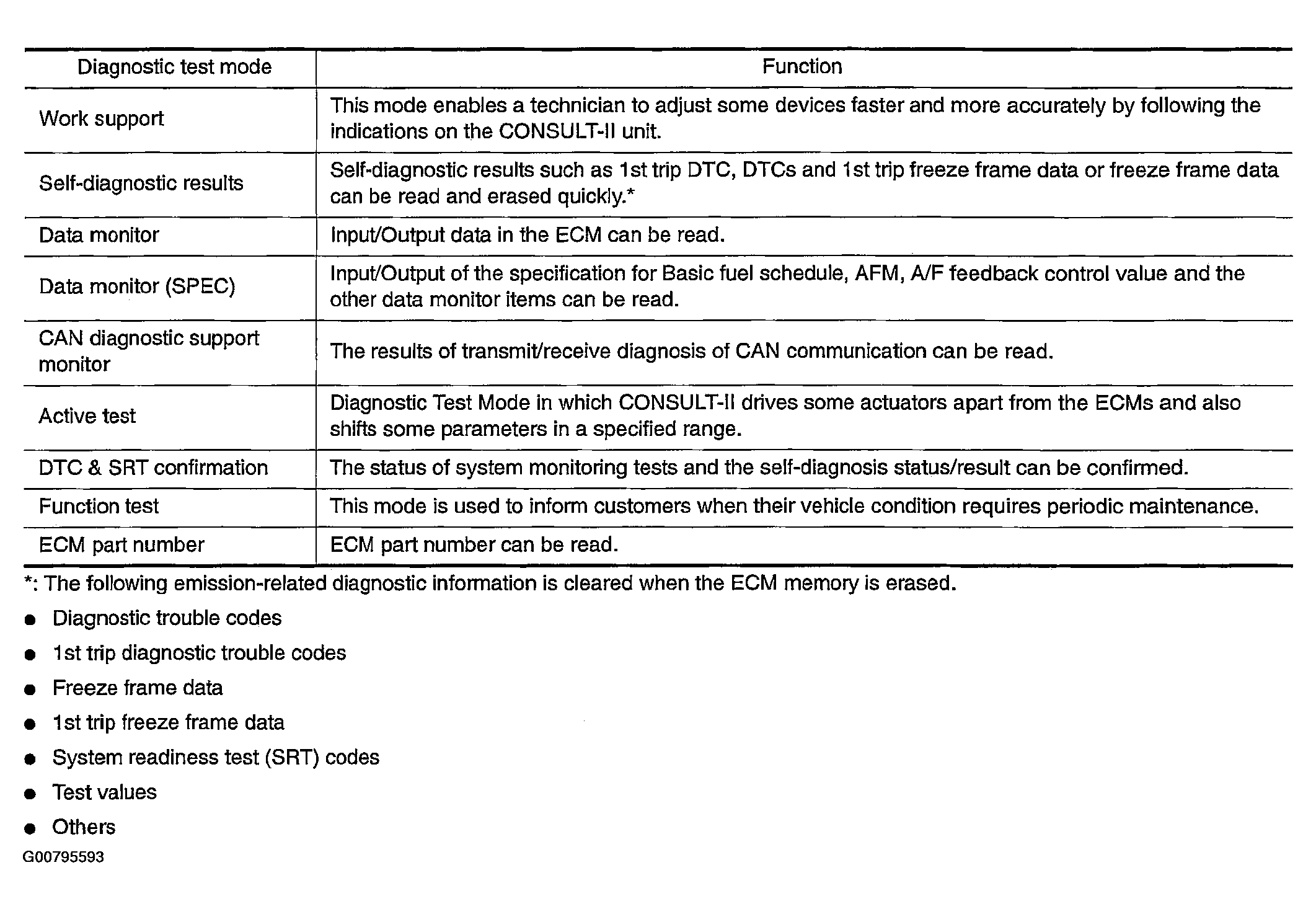

Fig 1: Identifying CONSULT-II Function Information
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
