Inspection In Auto Active Test Mode: Notes
WARNING:
This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
When auto active test mode is actuated, the following seven steps are repeated three times.

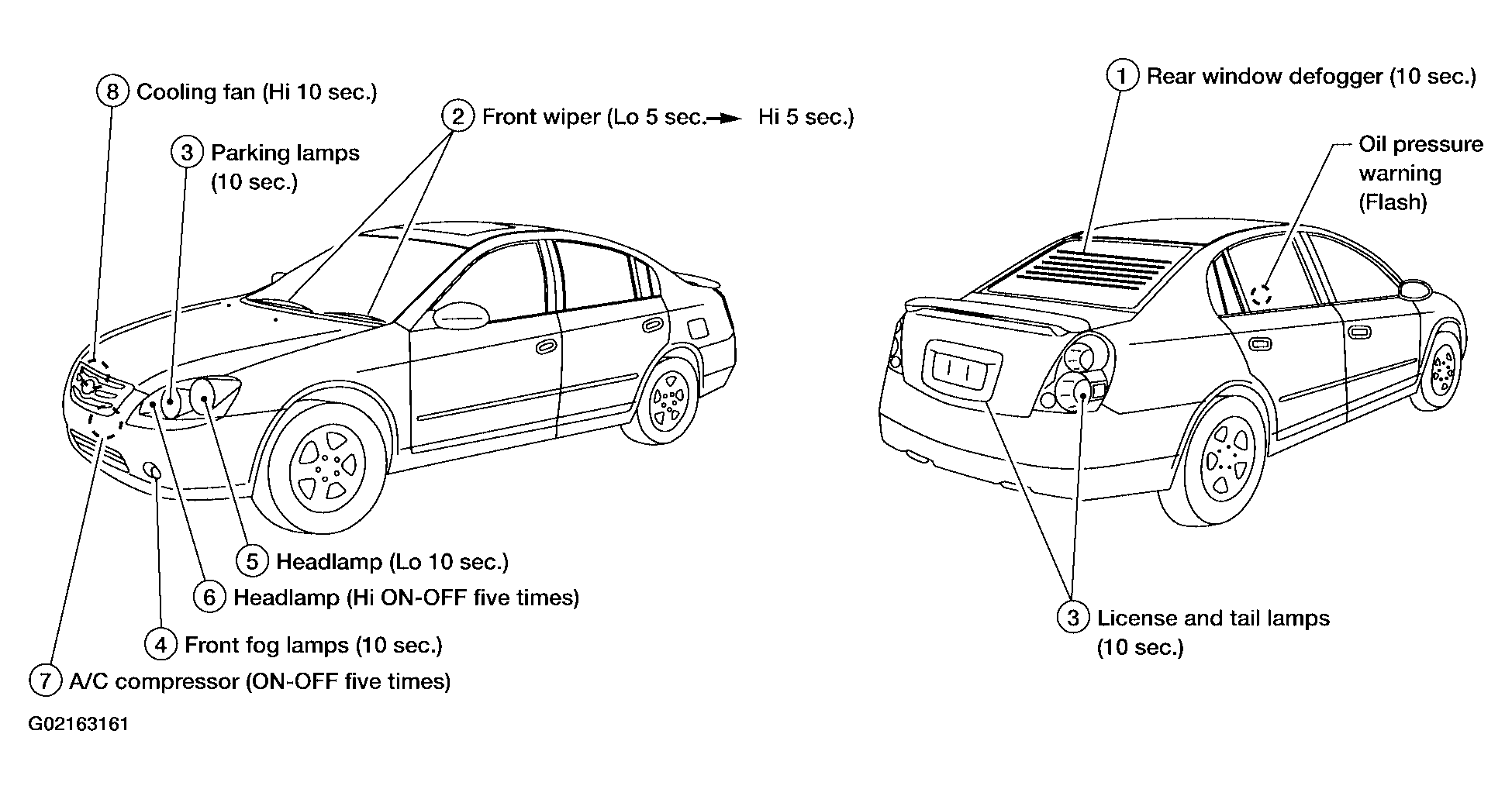

Fig 1: Inspecting Auto Active Test Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
