IPDM E/R (Intelligent Power Distribution Module Engine Room): Schematic: Notes

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

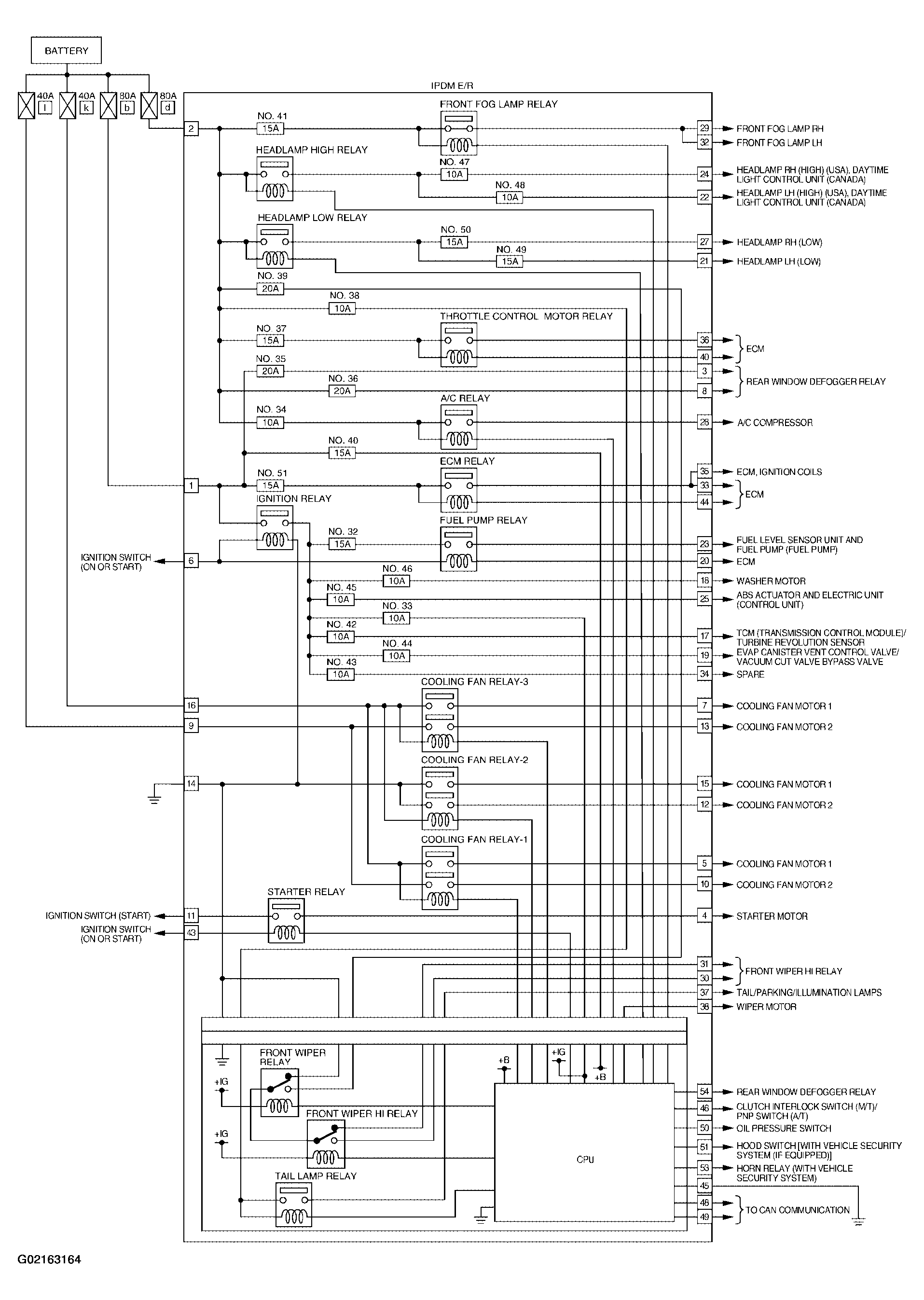

Fig 1: IPDM E/R Schematic
G02163164Courtesy of NISSAN MOTOR CO., U.S.A.
