Fail-Safe Input Conditions

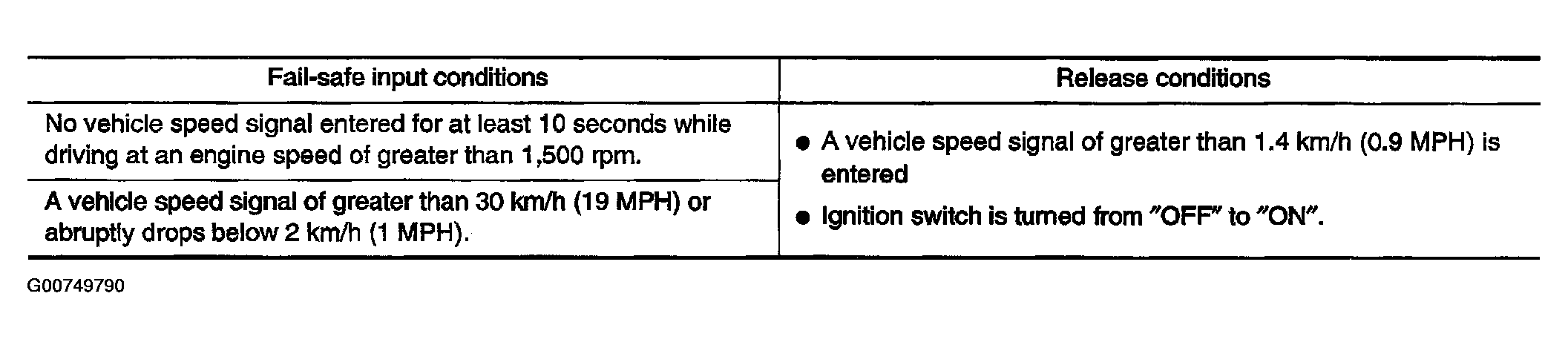

Fig 1: Fail-Safe Input Conditions

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: When the engine is revved up to 1,500 RPM or more for at least 10 seconds with vehicle at standstill, the fail-safe function operates; however, this is not a matter of concern. The fail-safe function can be released by driving vehicle of a speed of greater than 1.4 km/h (0.9 MPH) or by turning ignition switch from "OFF" to "ON".
