Symptom 2: Tilt System Does Not Operate

Check Steering Wheel Tilt Mechanism
Check the following.
- Operation malfunction caused by steering wheel tilt mechanism deformation or pinched harness or other foreign materials.
- Operation malfunction and interference with other parts by poor installation.
OK or NG
1. OK : GO TO 2.
2. NG : Repair the malfunctioning part and check again.
Check Tilt Switch Input/Output
1. Disconnect steering position switch connector.
2. Turn ignition switch ON.
3. Check voltage between steering position switch harness connector terminals 2 (P/L), 3 (PU/R) and body ground.

  Fig 1: Check Tilt Switch Input/Output (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 2: Check Tilt Switch Input/Output (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : GO TO 3.
2. NG : GO TO 5.
Check Steering Position Switch Ground Circuit
1. Turn ignition switch OFF.
2. Check continuity between steering position switch harness connector terminal 1 (B) and body ground.
  1. 1 (B) - Ground: Continuity should exist.
OK or NG
1. OK : GO TO 4.
2. NG : Repair or replace harness.
Fig 3: Check Steering Position Switch Ground Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
Check Tilt Switch
Check continuity between steering position switch connector terminals 2, 3 and 1.

Fig 4: Check Tilt Switch (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Check Tilt Switch (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : GO TO 6.
2. NG : Replace steering position switch.
Check Harness Continuity
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector terminals 23 (PU/R), 36 (P/L) and steering position switch harness connector terminals 2 (P/L), 3 (PU/R).
3. Check continuity between BCM harness connector terminals 23 (PU/R), 36 (P/L) and ground.

  Fig 6: Check Harness Continuity (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 7: Check Harness Continuity (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Replace BCM.
2. NG : Repair or replace harness.
Check BCM Output Signal
1. Disconnect tilt motor connector.
2. Check voltage between tilt motor harness connector terminals 1 (R/B), 2 (P) and ground.

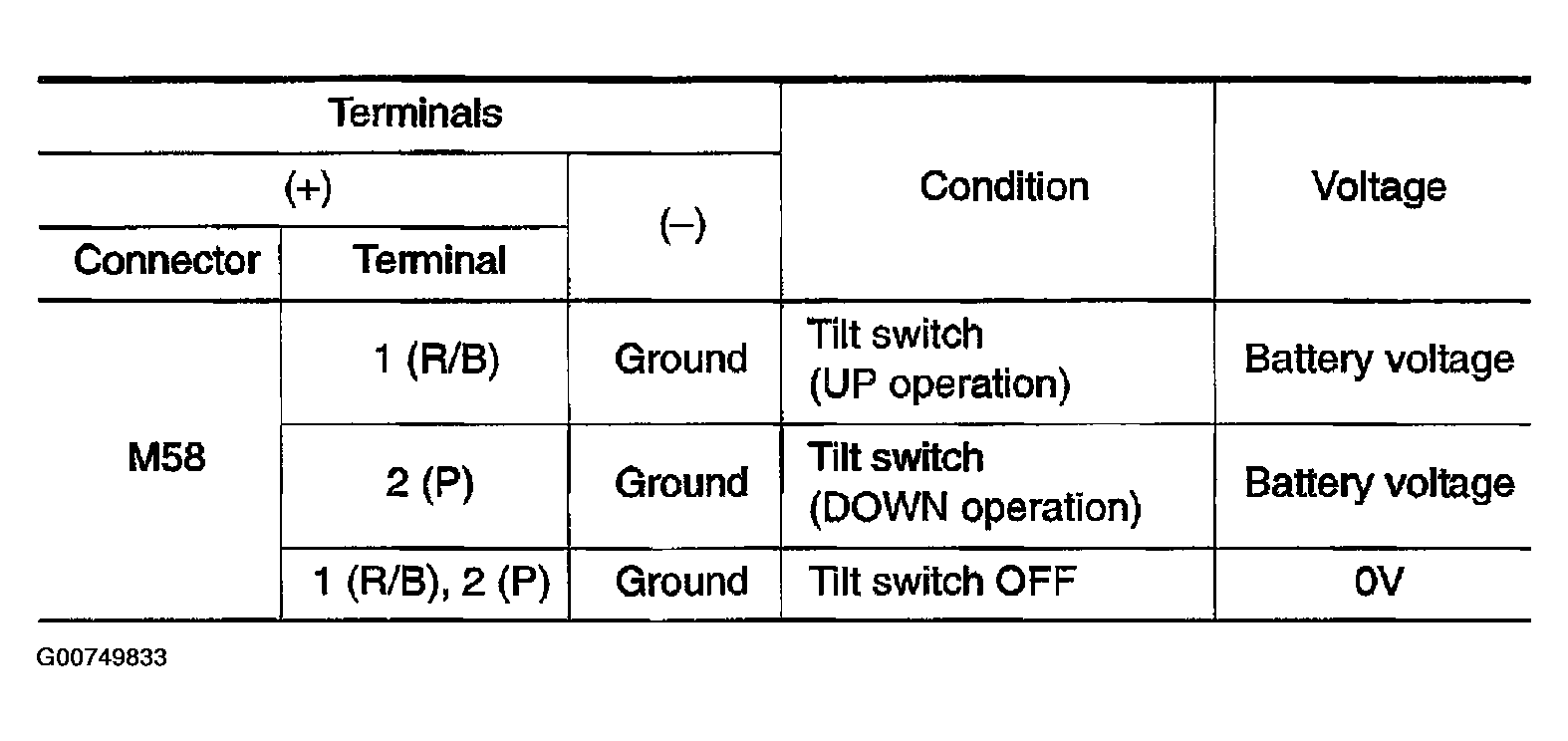

  Fig 8: Check BCM Output Signal (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 9: Check BCM Output Signal (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Replace tilt motor.
2. NG : GO TO 7.
Check Tilt Motor Circuit
1. Disconnect BCM and telescopic motor connectors.
2. Check continuity between BCM harness connector terminals 102 (P), 103 (R/B) and tilt motor harness connector terminals 1 (R/B), 2 (P).
3. Check continuity between BCM harness connector terminals 102 (P), 103 (R/B) and body ground.

  Fig 10: Check Tilt Motor Circuit (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 11: Check Tilt Motor Circuit (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : Replace BCM.
2. NG : Repair or replace harness.
