Function Of Control Valve

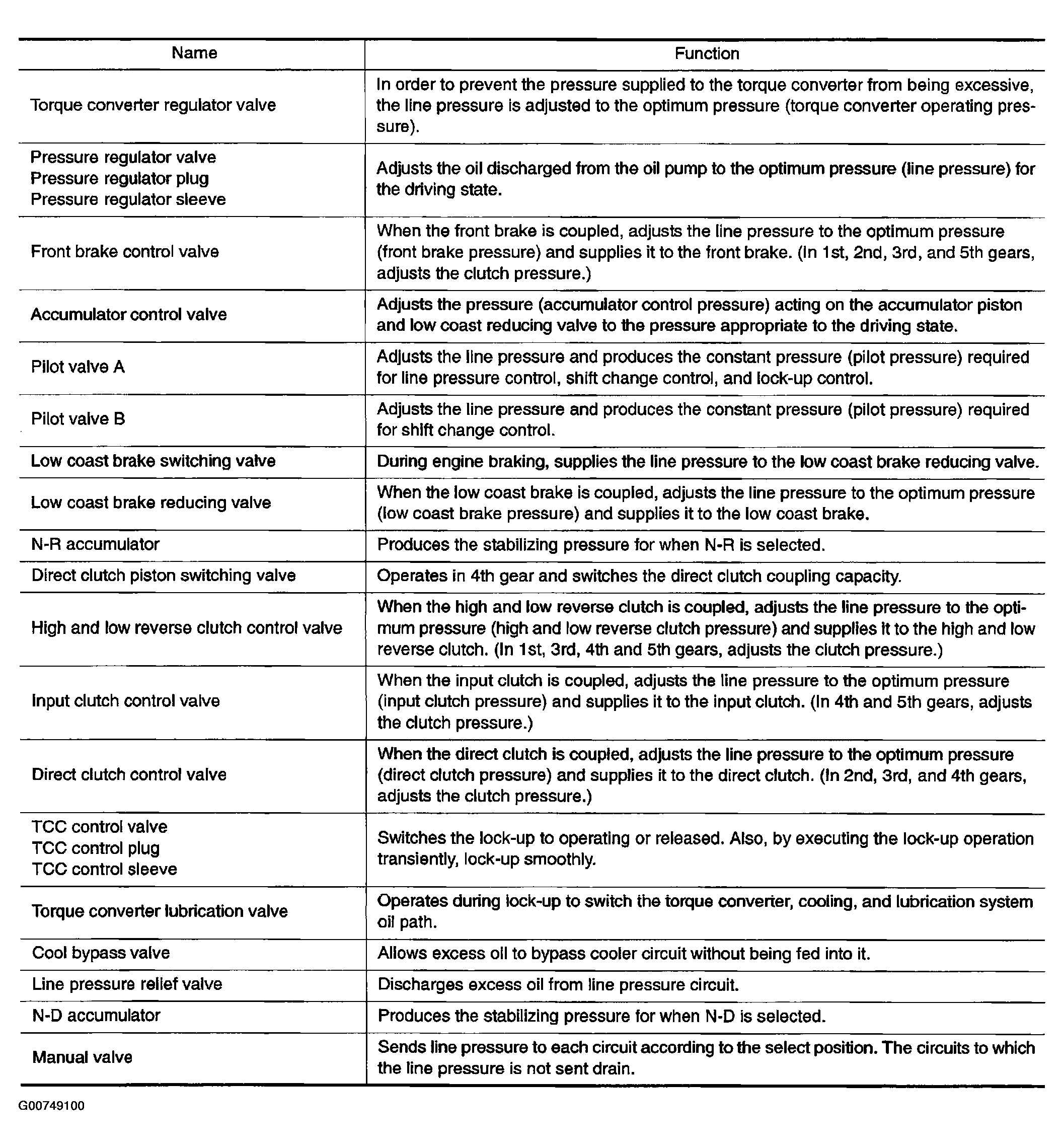

Fig 1: Identifying Control Valve Functions

G00749100

Courtesy of NISSAN MOTOR CO., U.S.A.
