Cross-SECTONAL View

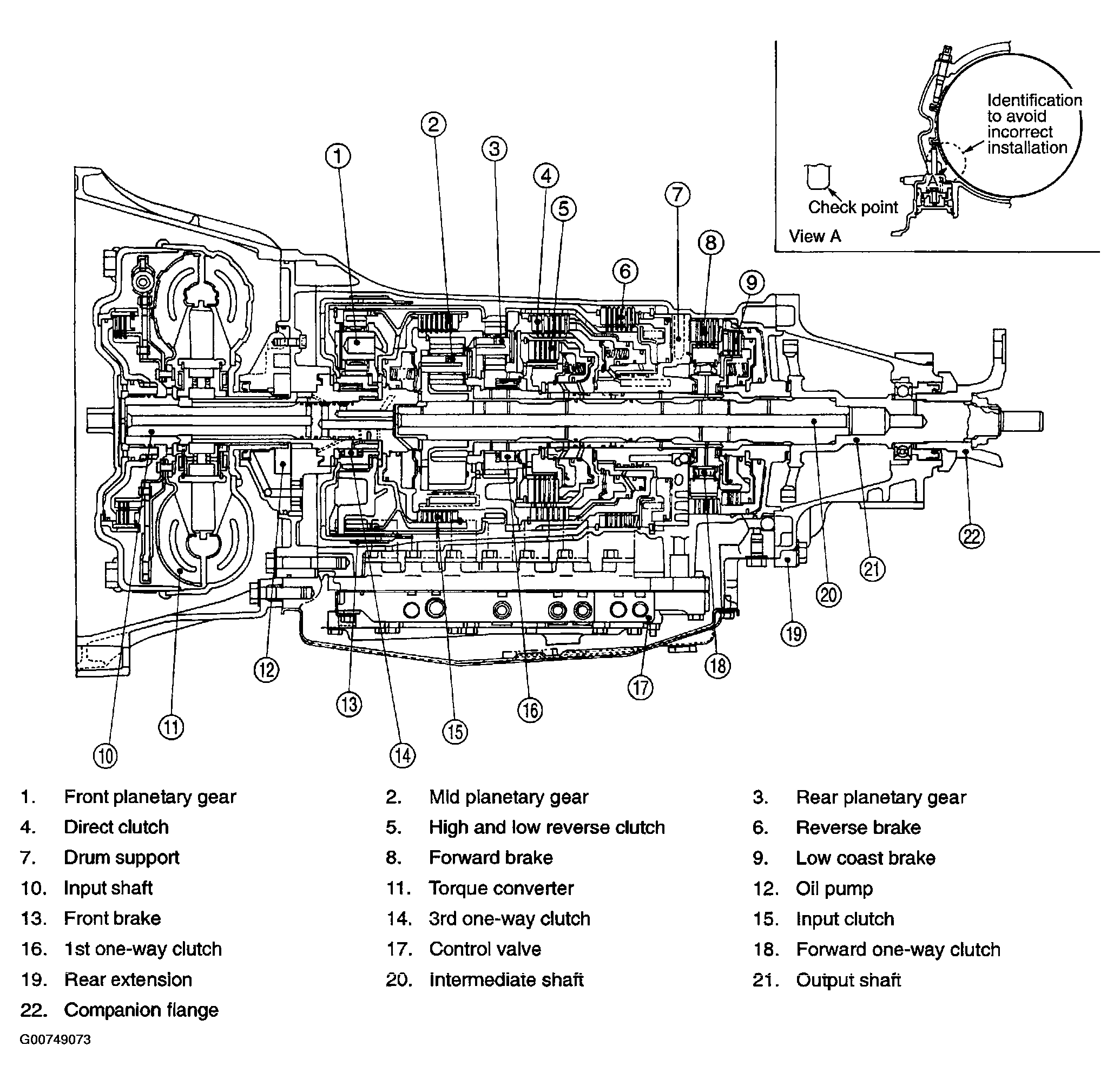

Fig 1: Cross-Sectional View
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
