Input/Output Signal Of TCM

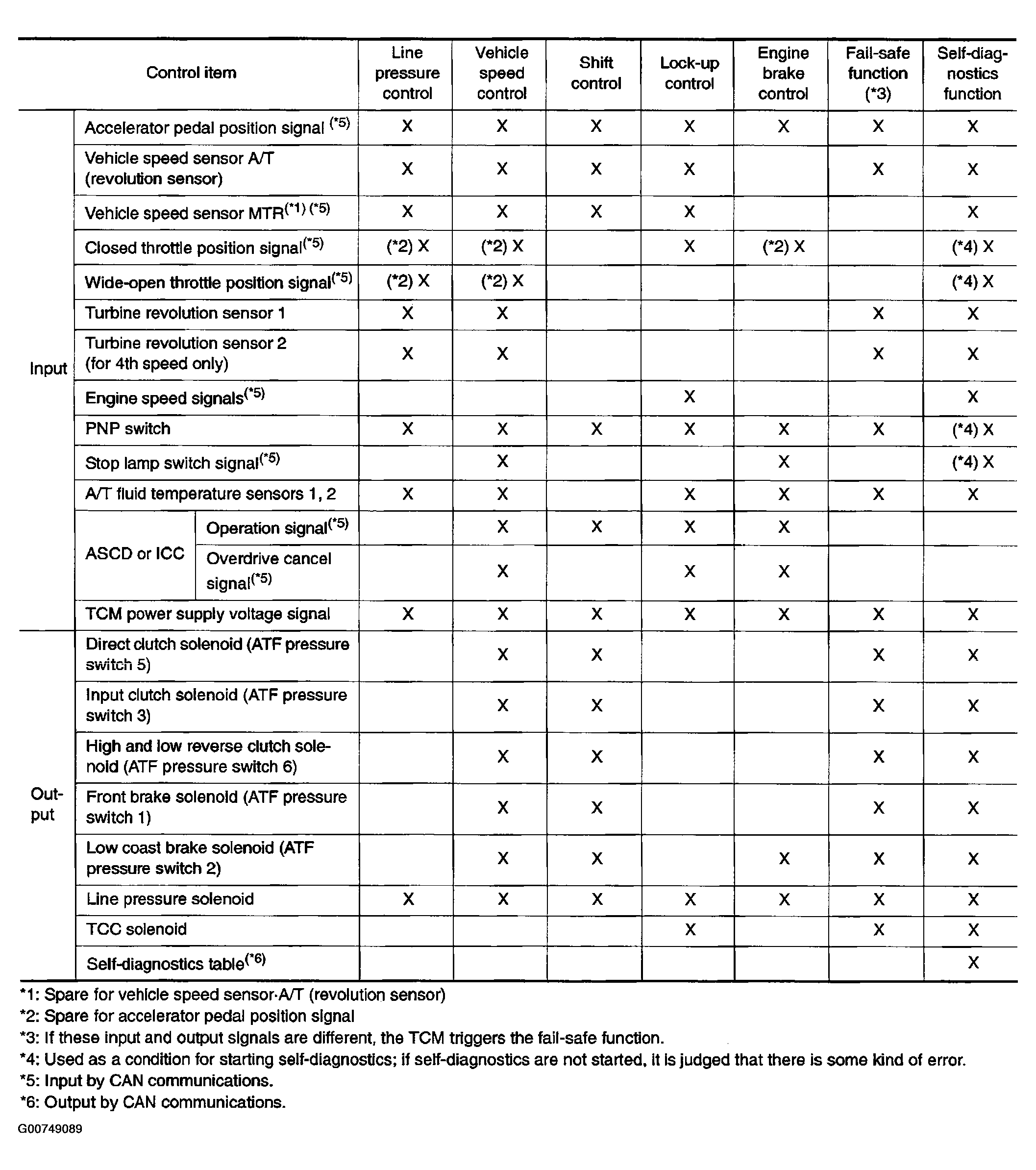

Fig 1: Identifying TCM Input/Output Parameters
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
