Automatic Transmission
>>
A/T Control System
>>
TCM Function
>>
Control System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control System Diagram

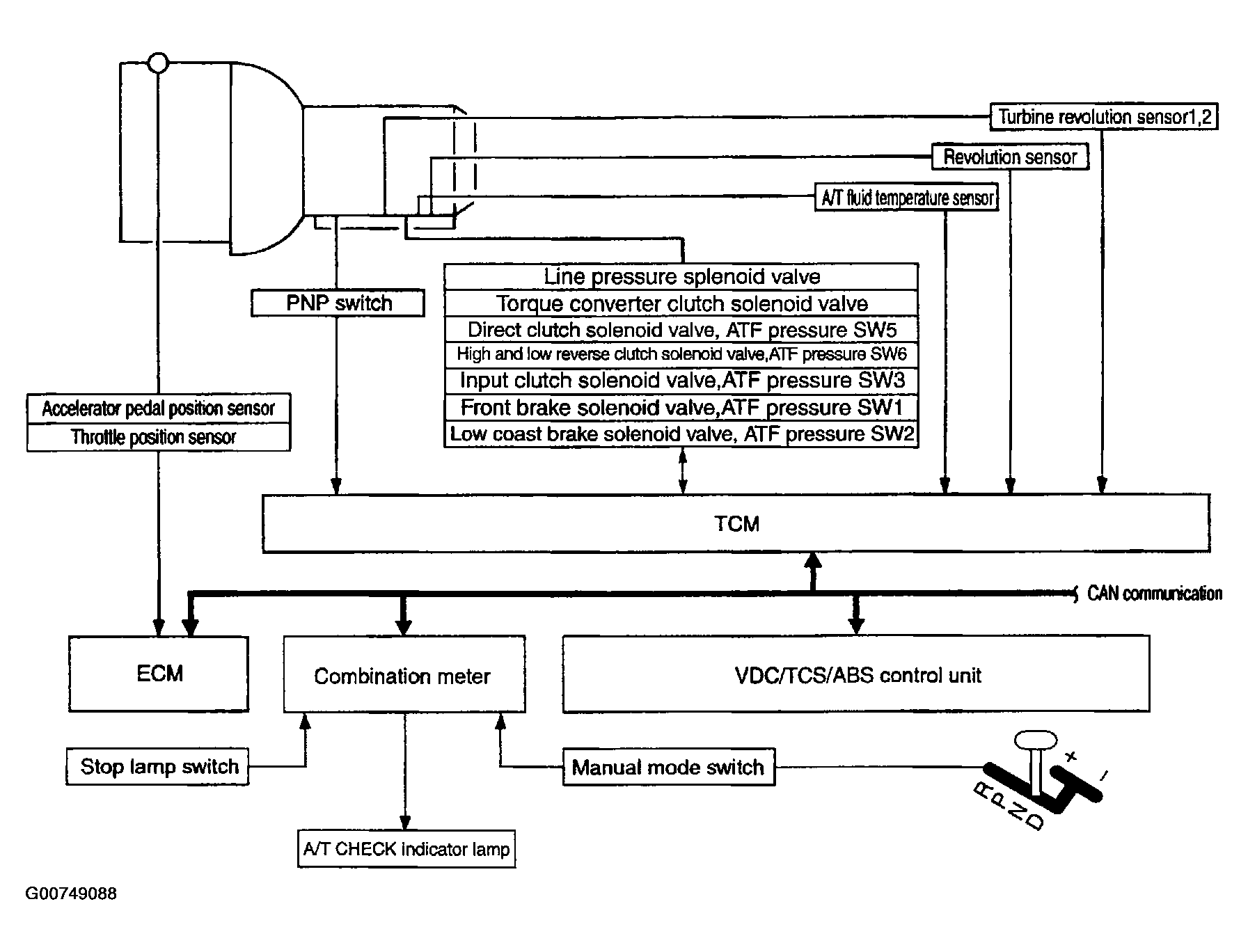

Fig 1: Layout Of Automatic Transmission Control System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
