For Key:

Check continuity between terminals of the A/T device harness connector terminals.

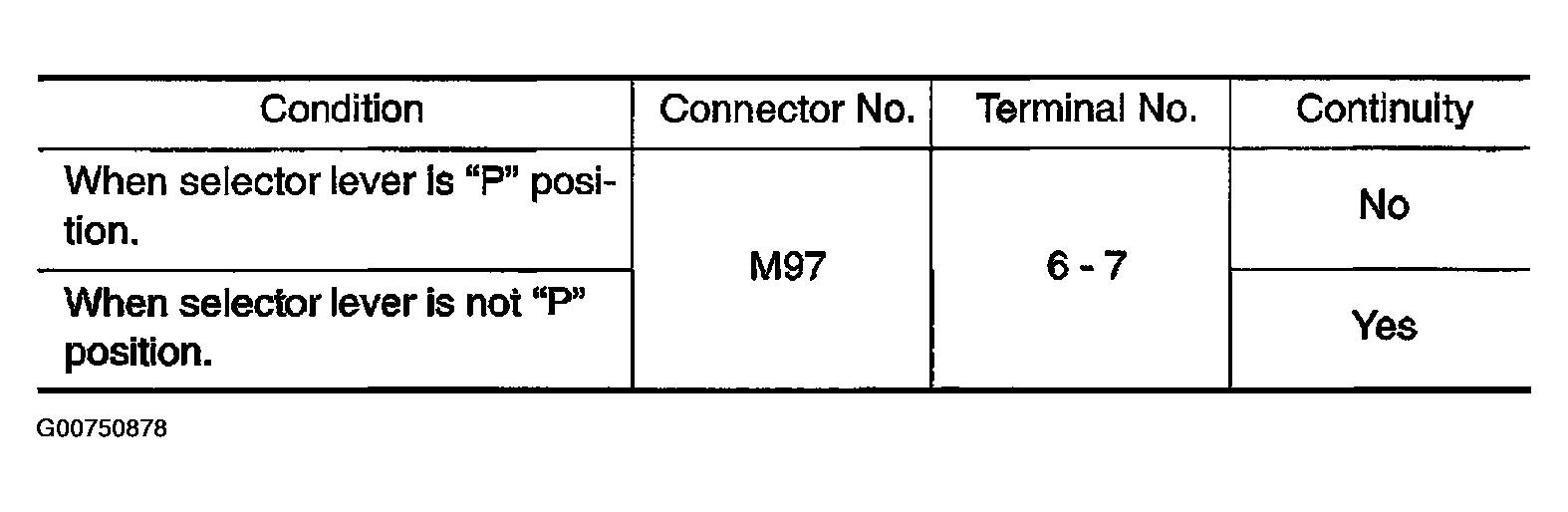

Fig 1: Detention Switch Specifications Chart (Key)
Courtesy of NISSAN MOTOR CO., U.S.A.

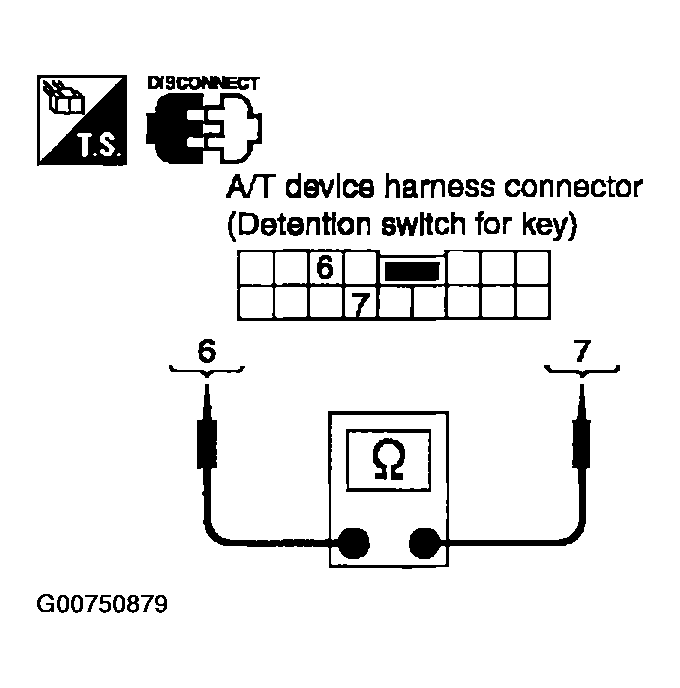

Fig 2: Detention Switch Testing Procedures (Key)
Courtesy of NISSAN MOTOR CO., U.S.A.
