Shift Lock System Electrical Parts Location

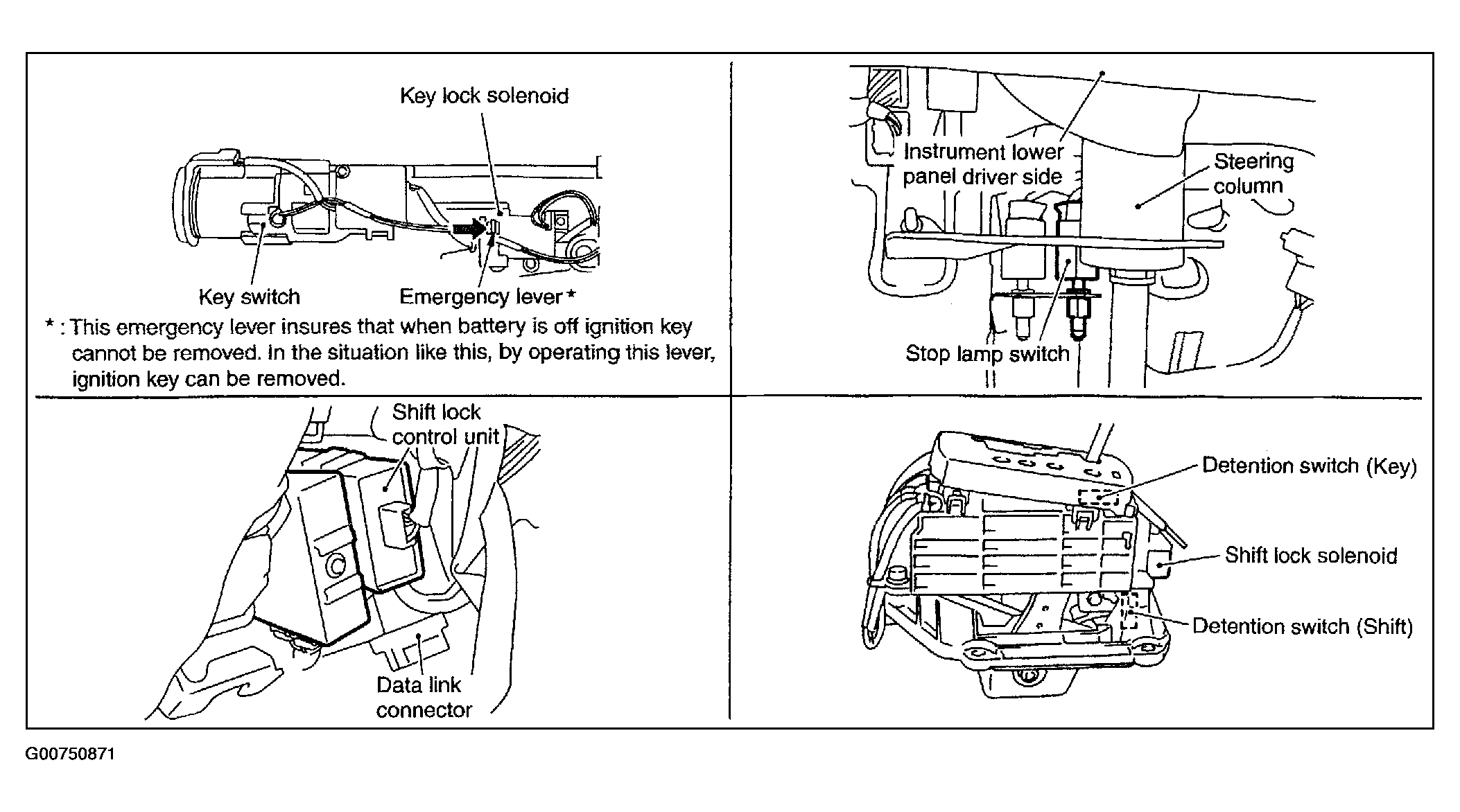

Fig 1: Locating Shift Lock System Electrical Components
G00750871Courtesy of NISSAN MOTOR CO., U.S.A.
