Control Valve Assembly: Installation

CAUTION: After completing installation, check A/T fluid leakage and A/T fluid level. Refer to " A/T FLUID -Changing A/T Fluid" , " A/T FLUID -Checking A/T Fluid" .

Install A/T fluid temperature sensor 2 in bracket.

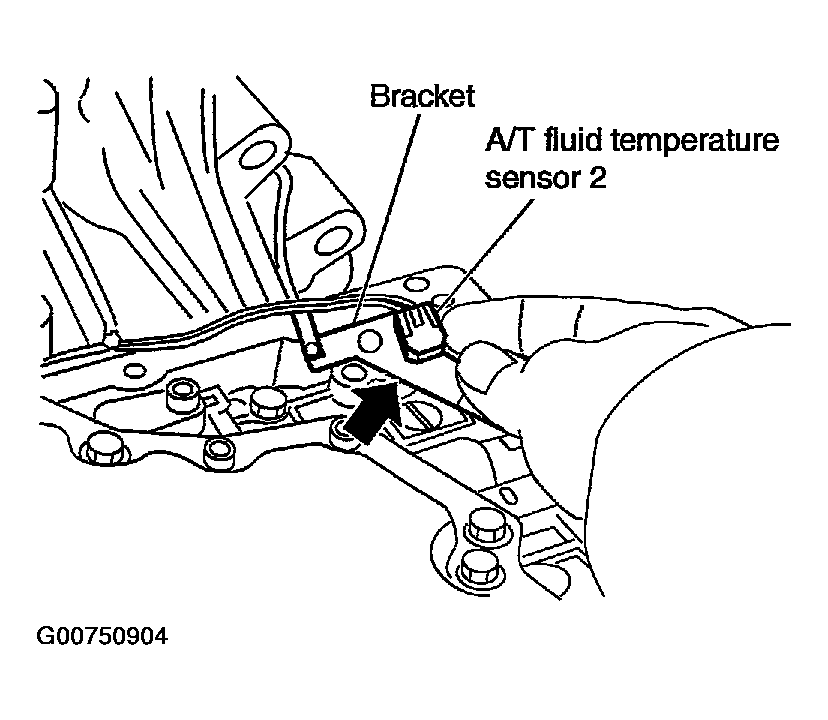

Fig 1: Installing A/T Fluid Temperature Sensor 2 Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Install A/T fluid temperature sensor 2 in control valve assembly. (With bracket.)
1. :7.9 N.m (0.81 kg-m, 70 in-lb)

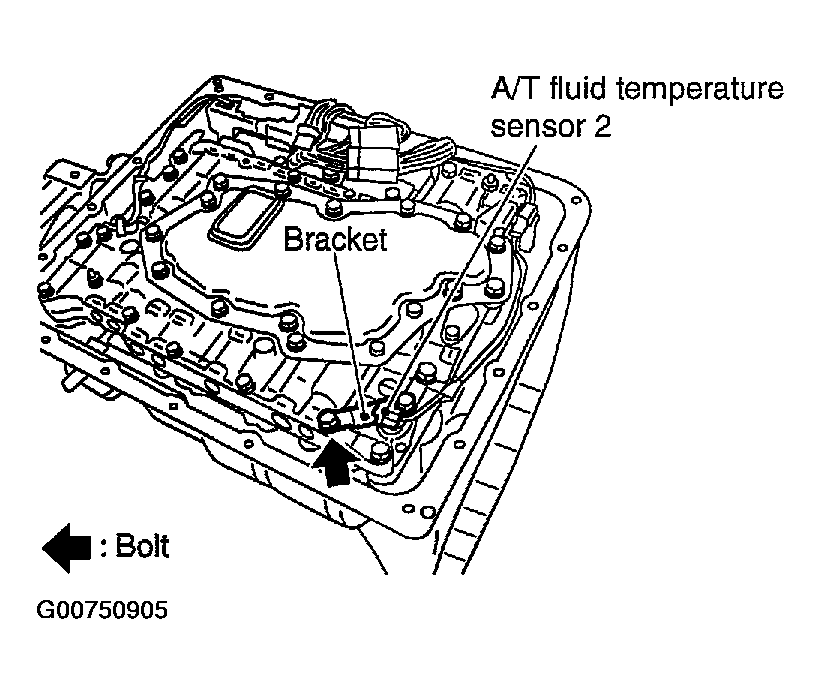

Fig 2: Locating A/T Fluid Temperature Sensor 2 Connector & Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Install control valve assembly.
1. Install control valve assembly in transmission case.
  CAUTION:
  - Hang down terminal cord assembly and revolution sensor harness toward outside so as not to disturb installation of control valve assembly.
  - Make sure that turbine sensor securely installs turbine sensor hole.

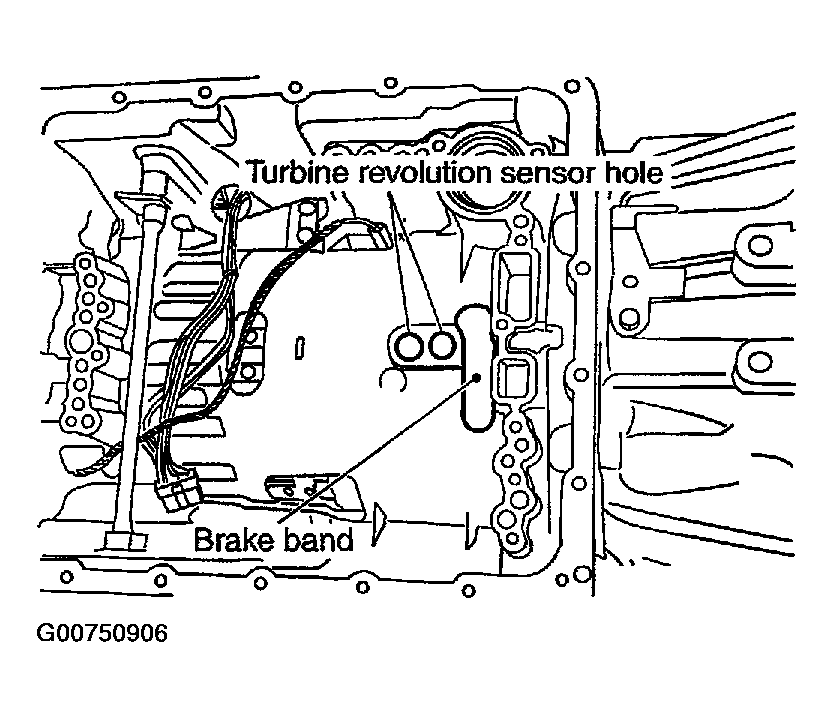

    Fig 3: Locating Turbine Sensor Hole & Brake Band
    Courtesy of NISSAN MOTOR CO., U.S.A.
  - Assemble it so that manual valve cutout is engaged with manual plate projection.

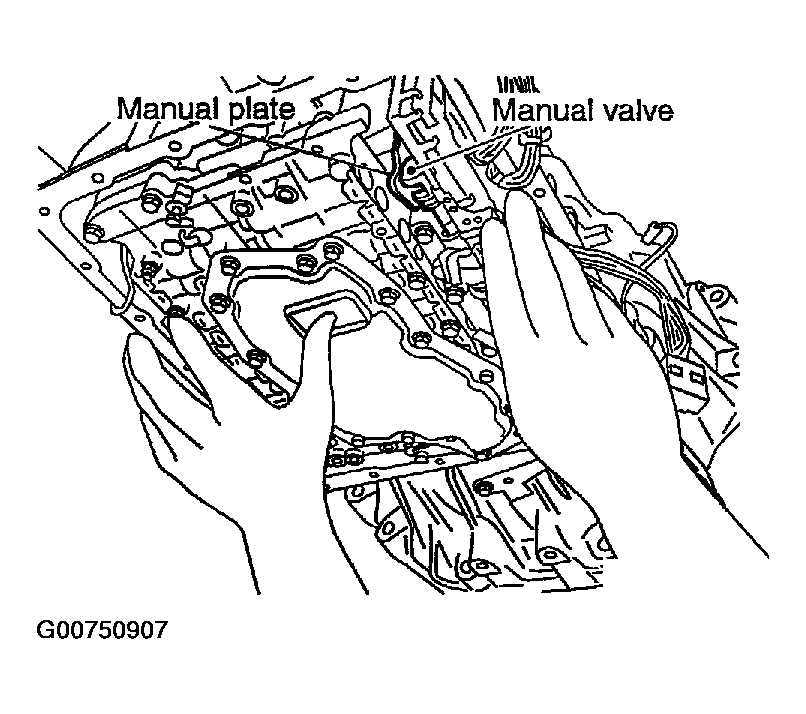

  Fig 4: Locating Manual Plate & Manual Valve
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install bolts A, B and C in control valve assembly.

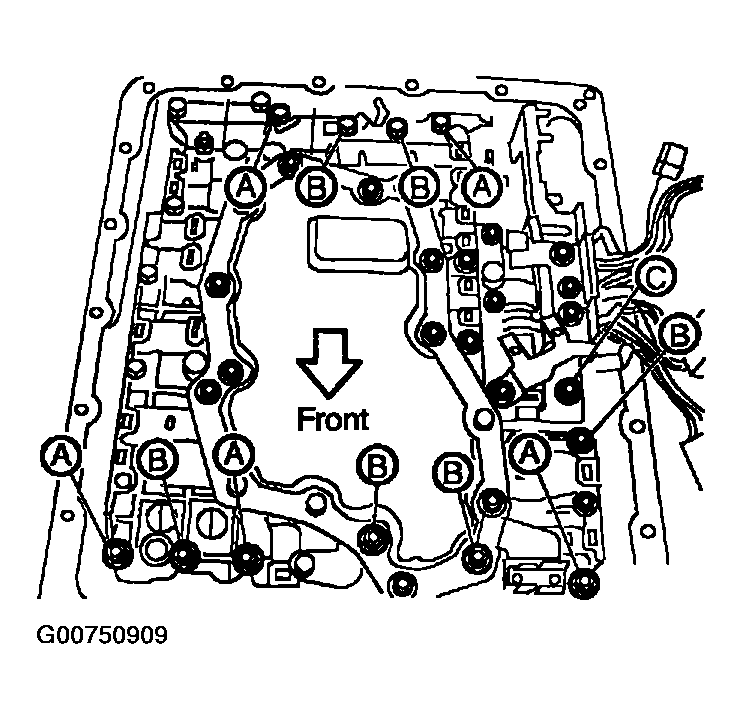

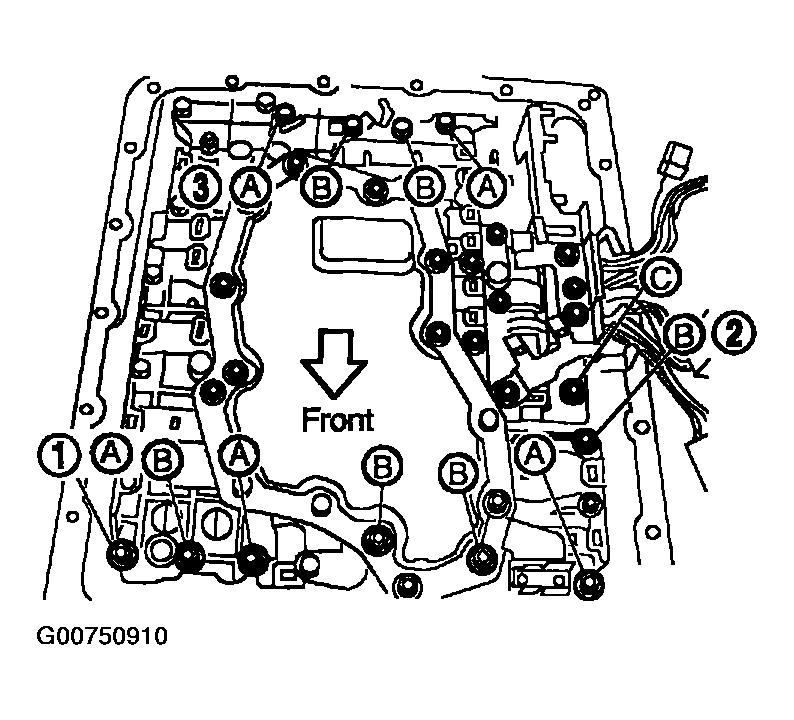

  Fig 5: Locating Control Valve Assembly Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.

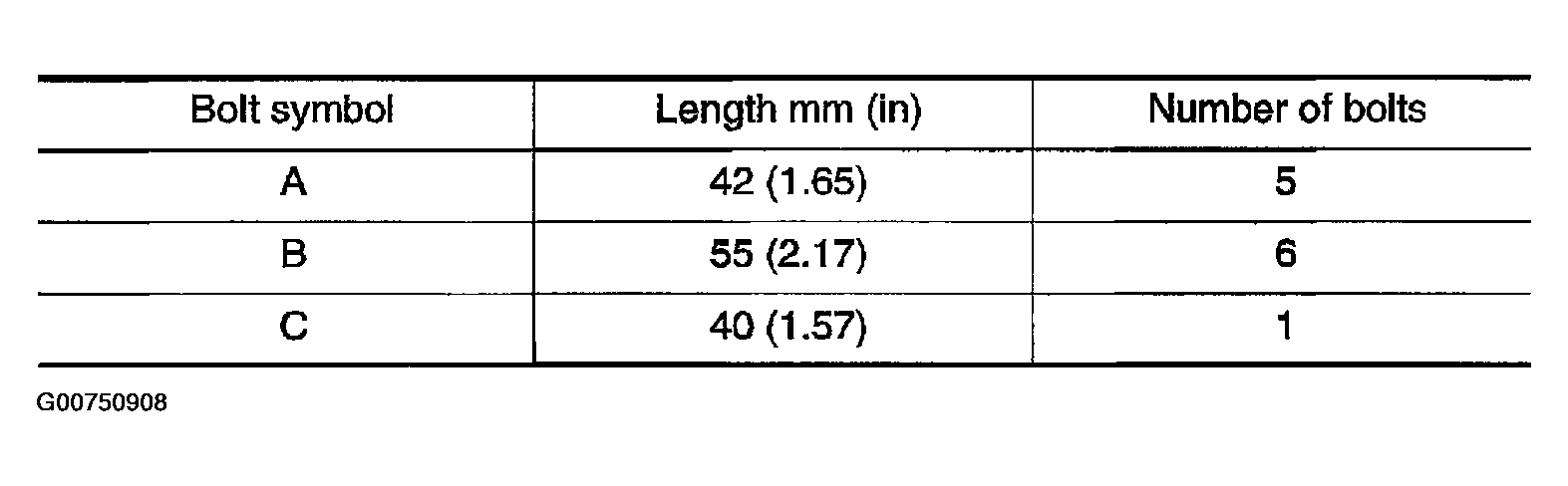

  Fig 6: Control Valve Assembly Bolt Legend
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Tighten bolts 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 --> 2 --> 3), and then tighten other bolts.
  1. :7.9 N.m (0.81 kg-m, 70 in-lb)
  Fig 7: Locating Bolts 1, 2 & 3
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install terminal cord assembly connectors in bracket.

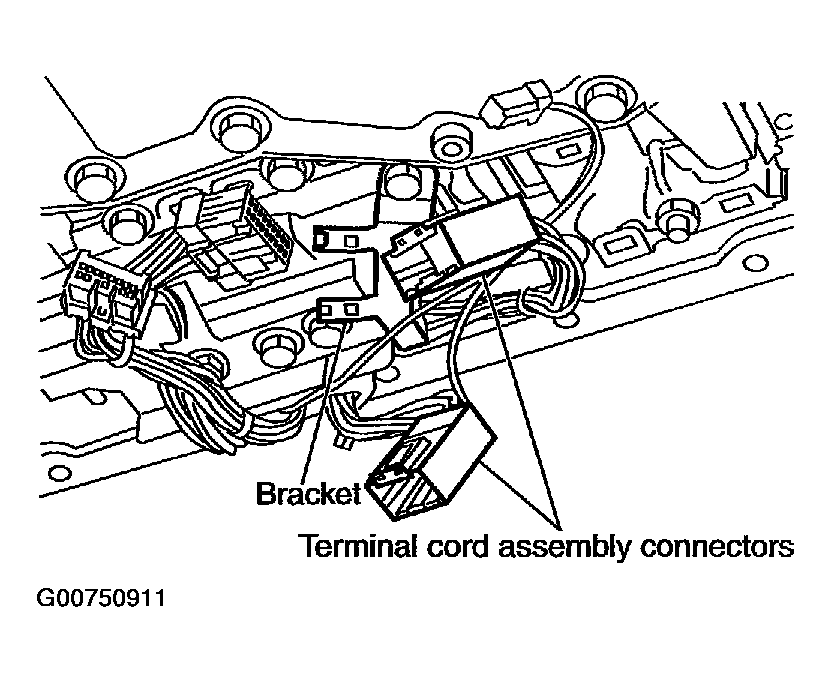

Fig 8: Identifying Terminal Cord Connectors & Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect terminal cord assembly connectors.

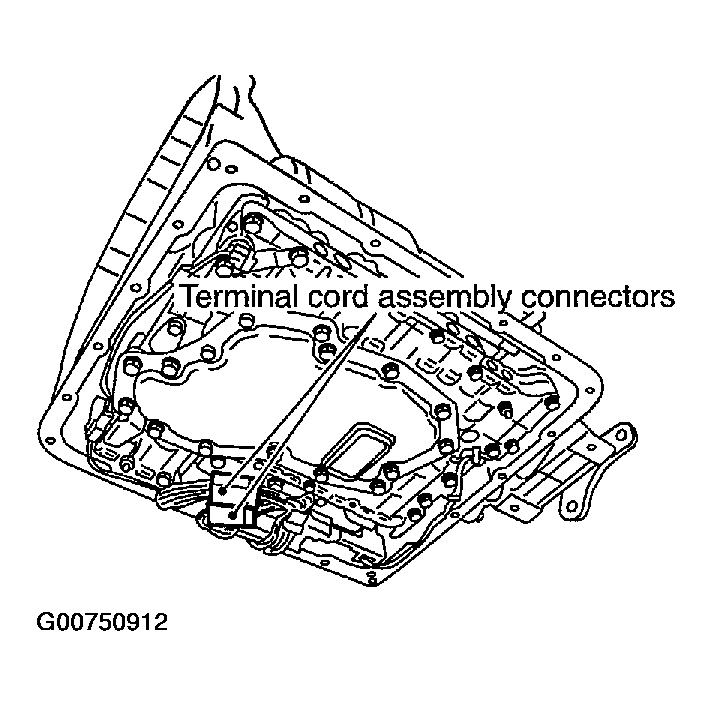

Fig 9: Locating Terminal Cord Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect A/T fluid temperature sensor 2 connector.

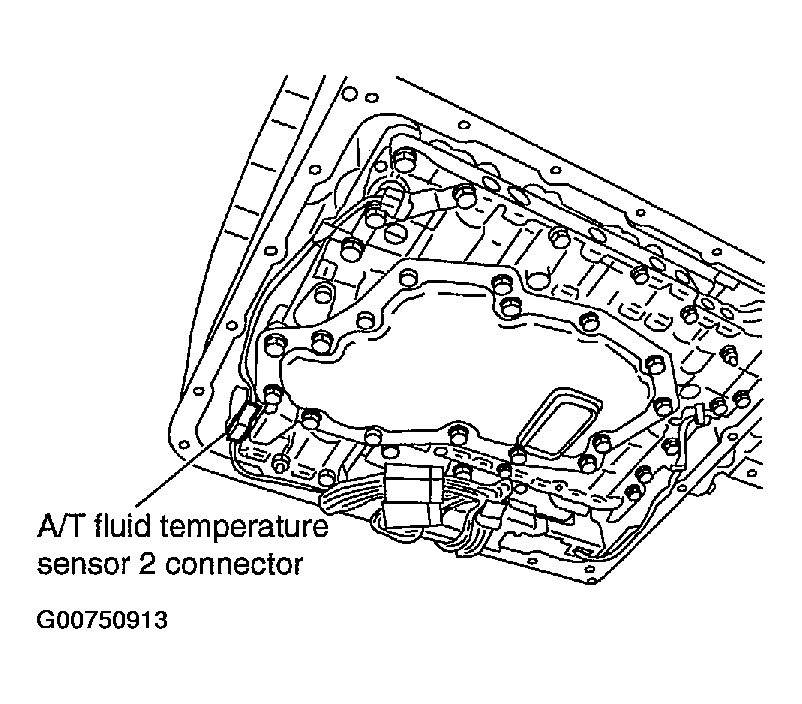

Fig 10: Locating A/T Fluid Temperature Sensor 2 Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect revolution sensor connector.

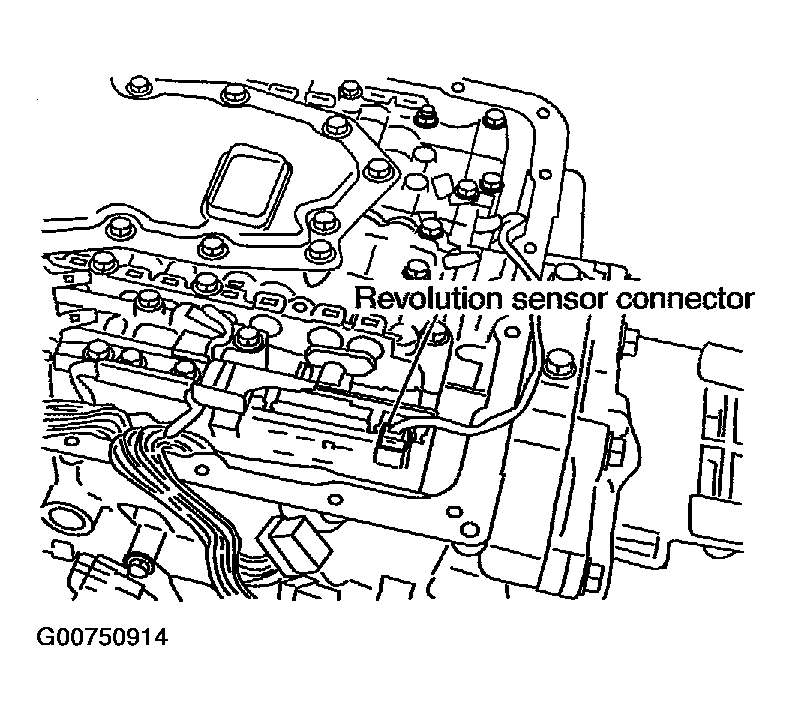

Fig 11: Locating Revolution Sensor Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Securely fasten terminal harness with clip.

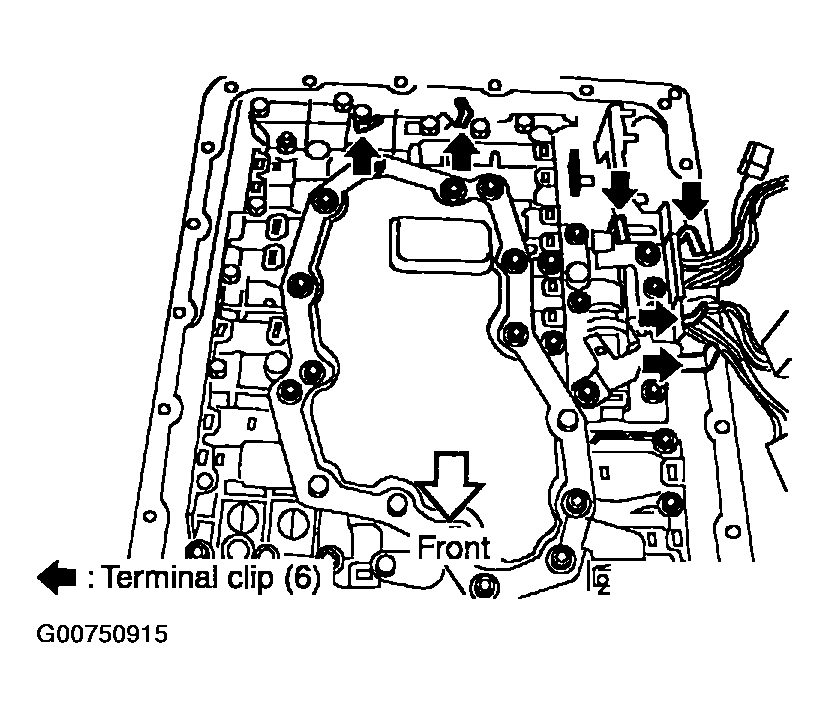

Fig 12: Locating Terminal Clips
Courtesy of NISSAN MOTOR CO., U.S.A.
Install magnets in oil pan.

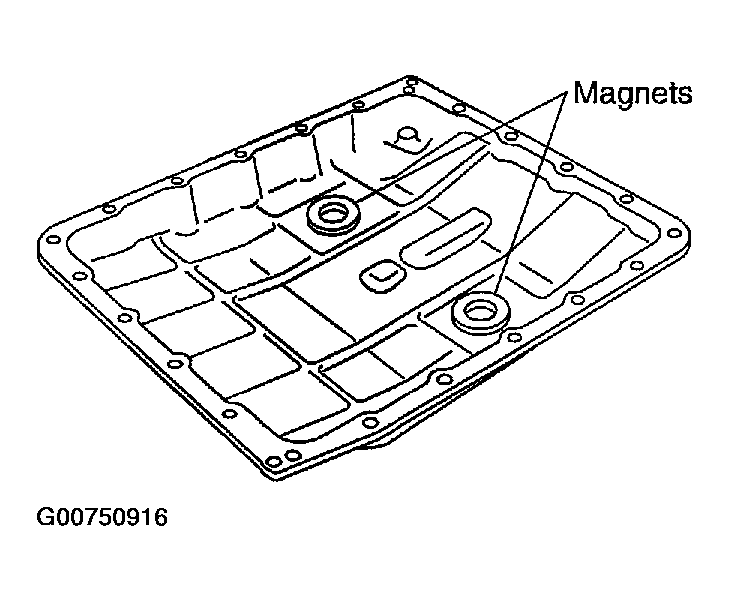

Fig 13: Locating Oil Pan Magnets
Courtesy of NISSAN MOTOR CO., U.S.A.
Install oil pan in transmission case according to the following procedures.
1. Install oil pan gasket on oil pan.
  CAUTION:
  - Do not reuse oil pan gasket.
  - Install it in the direction to align hole positions.
2. Install oil pan (with oil pan gasket) on transmission case.
  CAUTION:
  - Install it so that drain plug comes to the position as shown in the figure.
  - Be careful not to pinch harnesses.

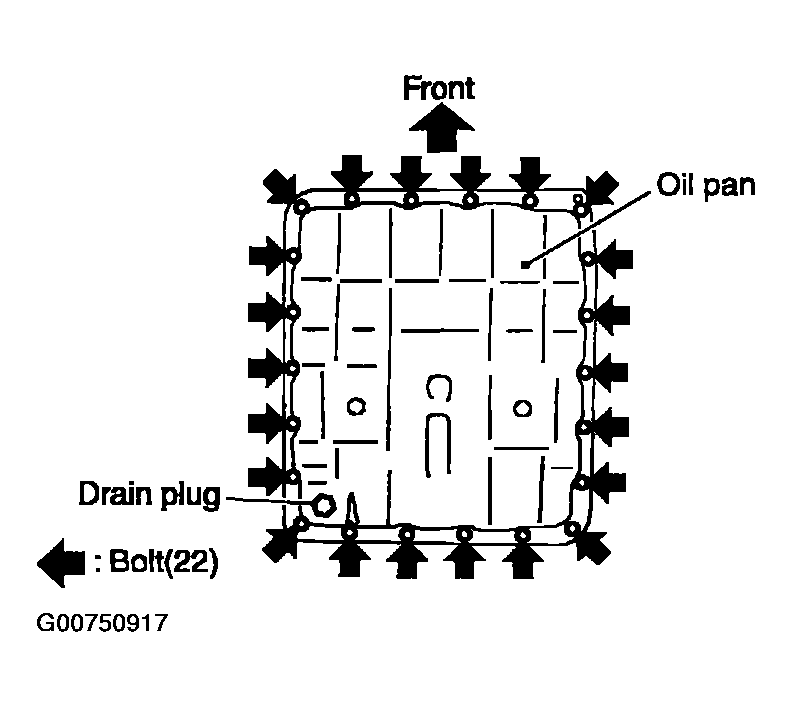

  Fig 14: Locating Oil Pan Bolts & Drain Plug
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.
  CAUTION: Do not reuse oil pan mounting bolts.
  1. :7.9 N.m (0.81 kg-m, 70 in-lb)

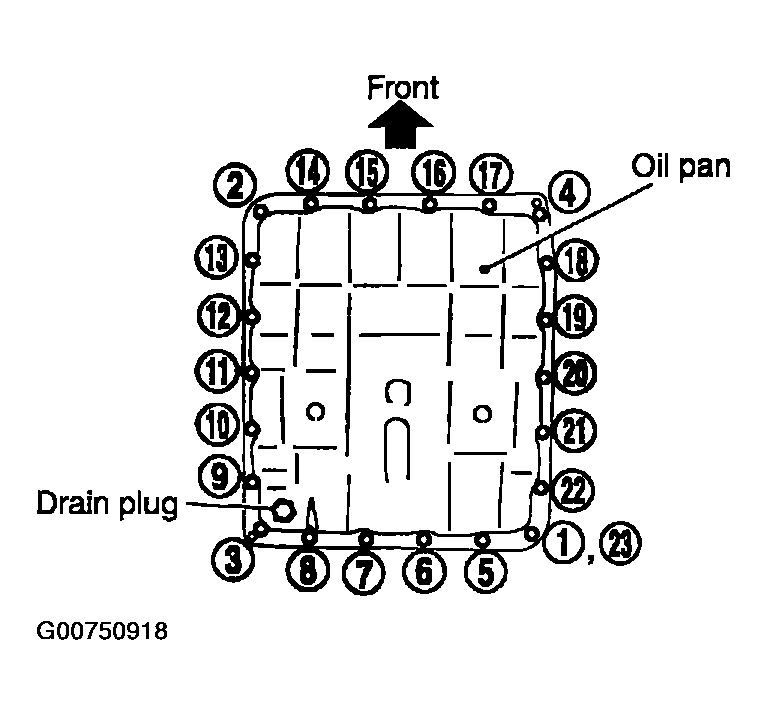

Fig 15: Identifying Oil Pan Bolt Tightening Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
Install drain plug on oil pan.
CAUTION: Do not reuse drain plug gasket.
1. :34 N.m (3.5 kg-m, 25 ft-lb)
Pour ATF into transmission assembly. Refer to " A/T FLUID -Changing A/T Fluid" .
Connect heated oxygen sensor 2 harness connector.
Connect the negative battery terminal.
