Revolution Sensor: Components

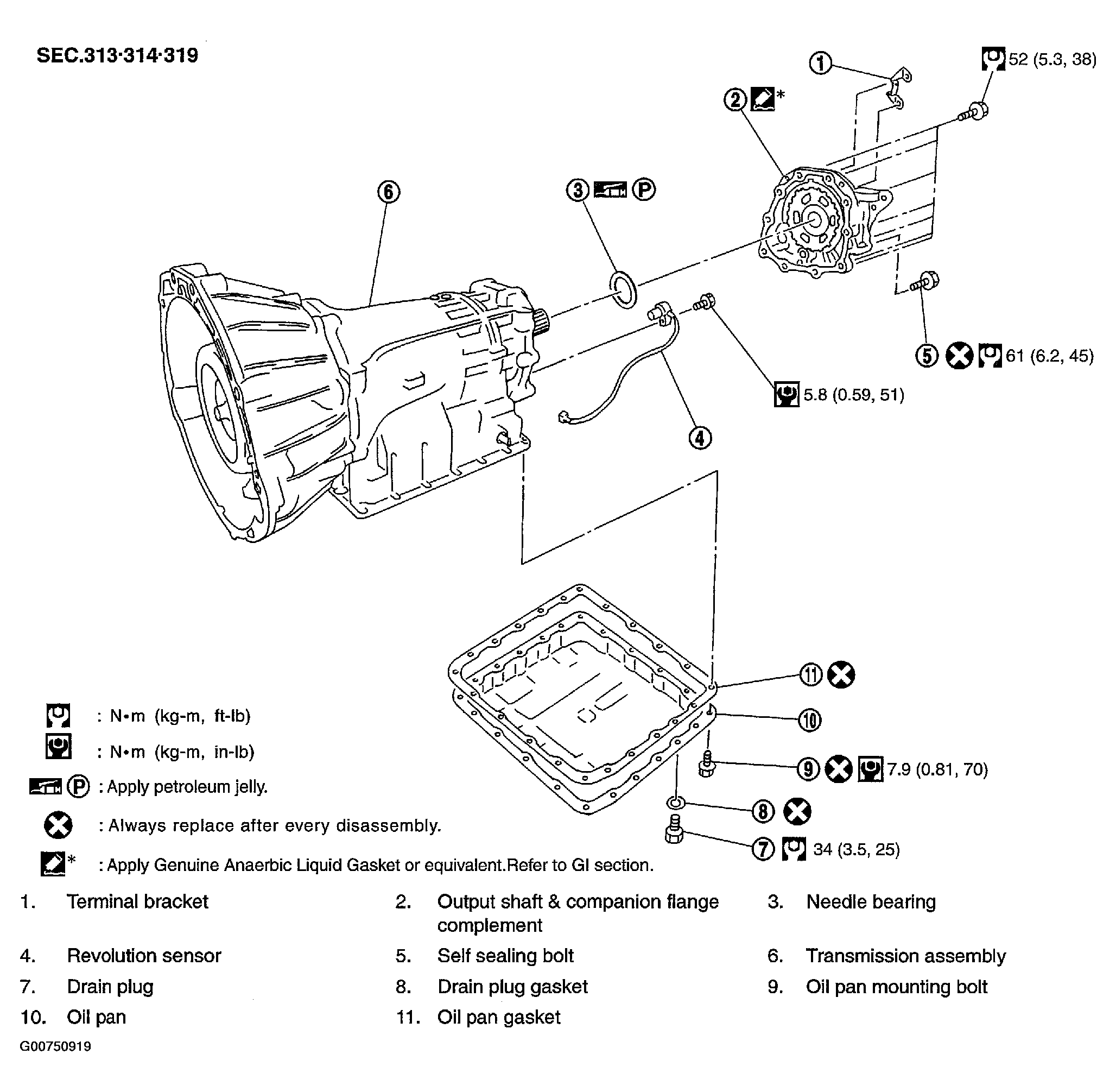

Fig 1: Locating Revolution Sensor Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
