Revolution Sensor: Installation

CAUTION: After completing installation, check A/T fluid leakage and A/T fluid level. Refer to A/T FLUID  -Changing A/T Fluid"  and A/T FLUID  -Checking A/T Fluid"  .
  1. Install revolution sensor in transmission assembly.
    CAUTION:
    • Do not subject it to impact by dropping or hitting it.
    • Do not disassemble.
    • Do not allow metal filings, etc., to get on the sensor's front edge magnetic area.
    • Do not place in an area affected by magnetism.

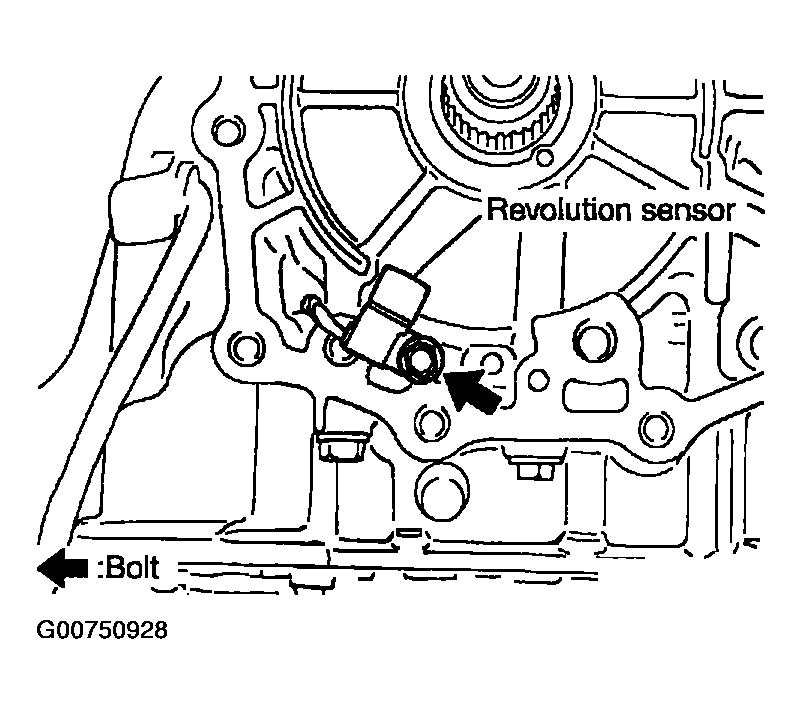

    Fig 1: Locating Revolution Senstor Mounting Bolt
    G00750928Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect revolution sensor connector.
  3. Securely fasten revolution sensor harness with terminal clips.

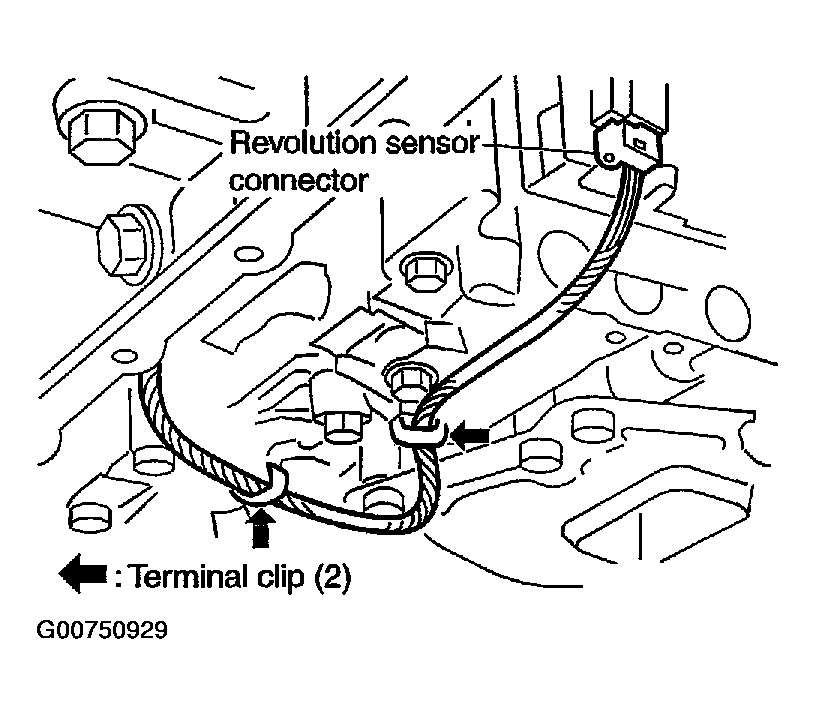

    Fig 2: Locating Terminal Revolution Sensor Harness Clips
    G00750929Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to "Recommended Chemical Products and Sealants"  .) to output shaft & companion flange complement as shown in illustration.
    CAUTION: Complete remove all moisture, oil and old sealant, etc. From the transmission case and output shaft & companion flange complement mounting surfaces.

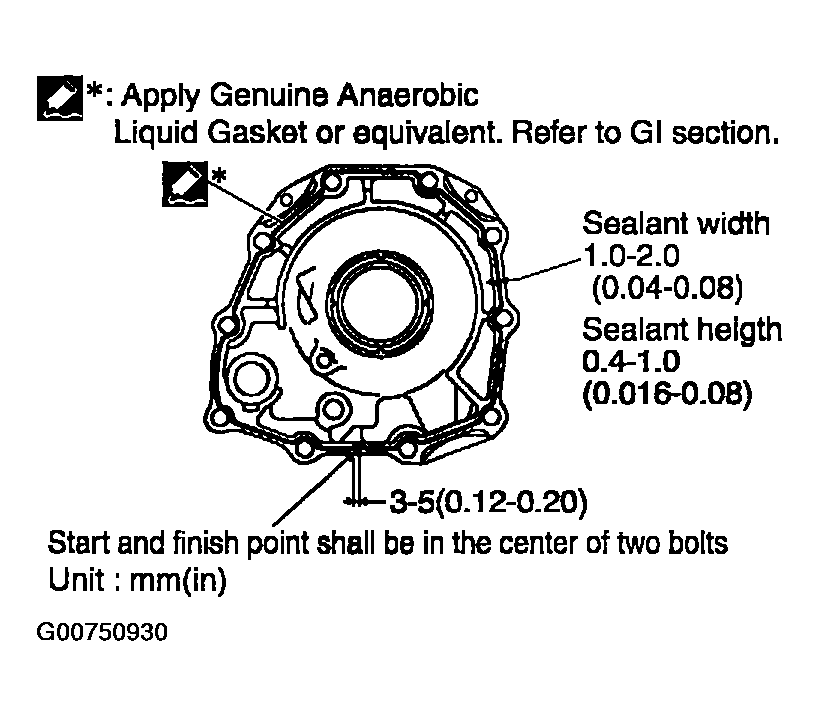

    Fig 3: Identifying Anaerobic Liquid Gasket Application Specifications
    G00750930Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install output shaft & companion flange complement in transmission assembly.

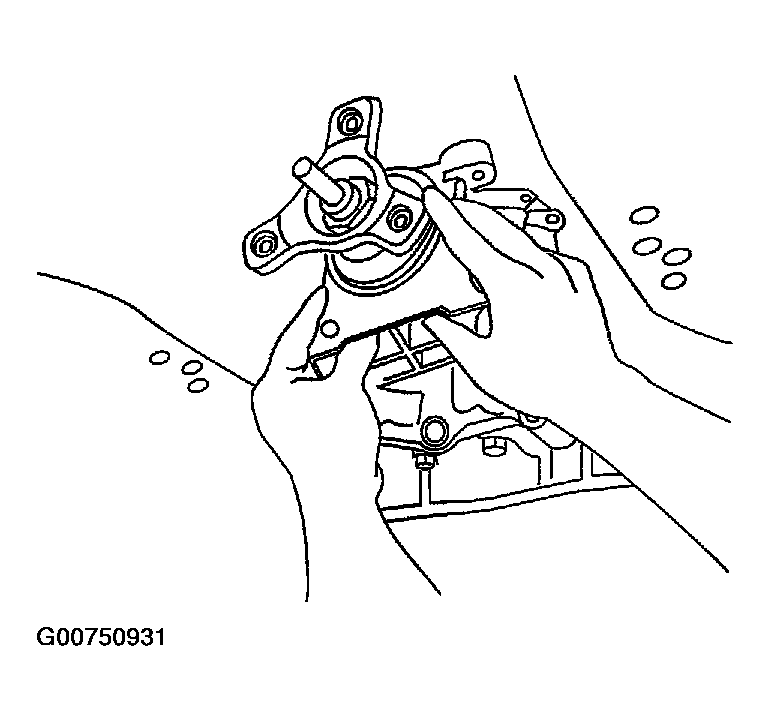

    Fig 4: Removing & Installing Output Shaft & Companion Flange
    G00750931Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Tighten output shaft & companion flange complement mounting bolts to specified torque. (Because terminal bracket is tightened together with output shaft & companion flange, it should be installed before procedure 5.)
    CAUTION: Do not reuse self-sealing bolt.
    1. Output shaft & companion flange complement mounting bolt:52 N.m (5.3 kg-m, 38 ft-lb)
    2. Self-sealing bolt:61 N.m (6.2 kg-m, 45 ft-lb)

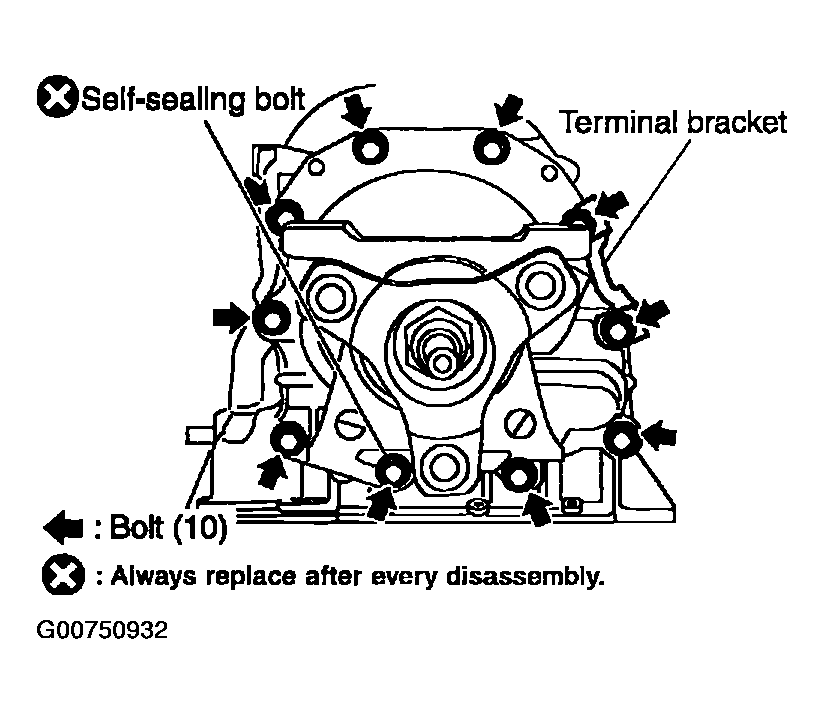

    Fig 5: Locating Output Shaft, Companion Flange & Transmission Case Mounting Bolts (With Note)
    G00750932Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install engine rear member. Refer to "Removal and Installation"  . See REMOVAL AND INSTALLATION .

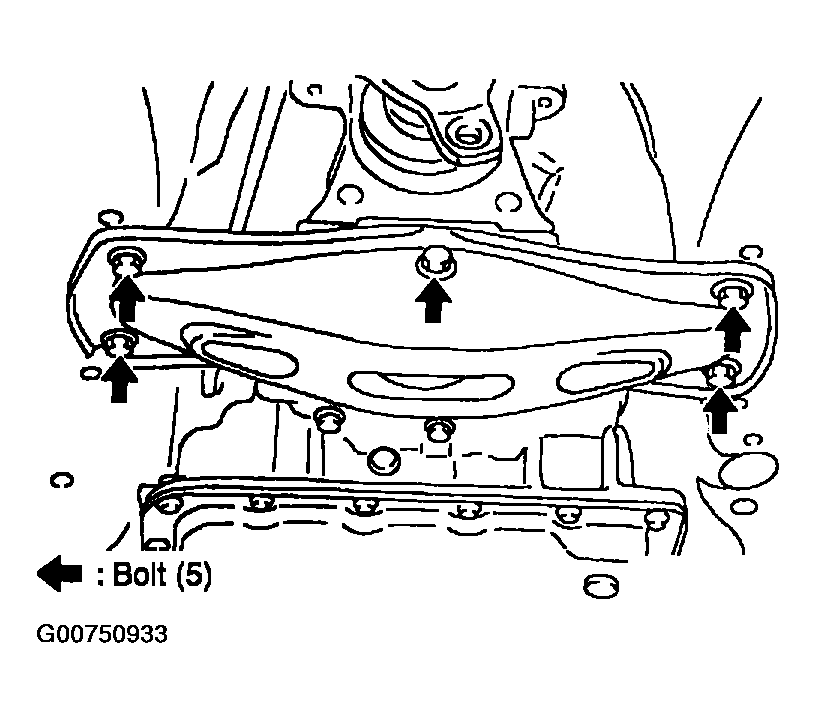

    Fig 6: Locating Engine Rear Member Mounting Bolts
    G00750933Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install oil pan in transmission case according to the following procedures.
    1. Install oil pan gasket on oil pan.
      CAUTION:
      • Do not reuse oil pan gasket.
      • Install it in the direction to align hole positions.
    2. Install oil pan (with oil pan gasket) on transmission case.
      CAUTION:
      • Install it so that drain plug comes to the position as shown in the figure.
      • Be careful not to pinch harnesses.

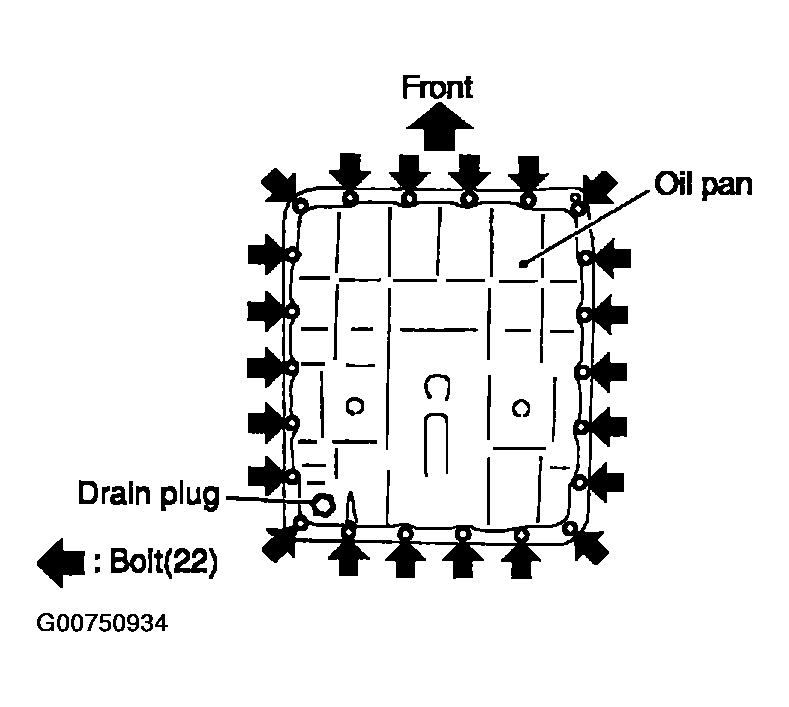

      Fig 7: Locating Oil Pan Bolts & Drain Plug
      G00750934Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.
      CAUTION: Do not reuse oil pan mounting bolts.
      1. :7.9 N.m (0.81 kg-m, 70 in-lb)
  9. Install drain plug on oil pan.
    CAUTION: Do not reuse drain plug gasket.
    1. :34 N.m (3.5 kg-m, 25 ft-lb)

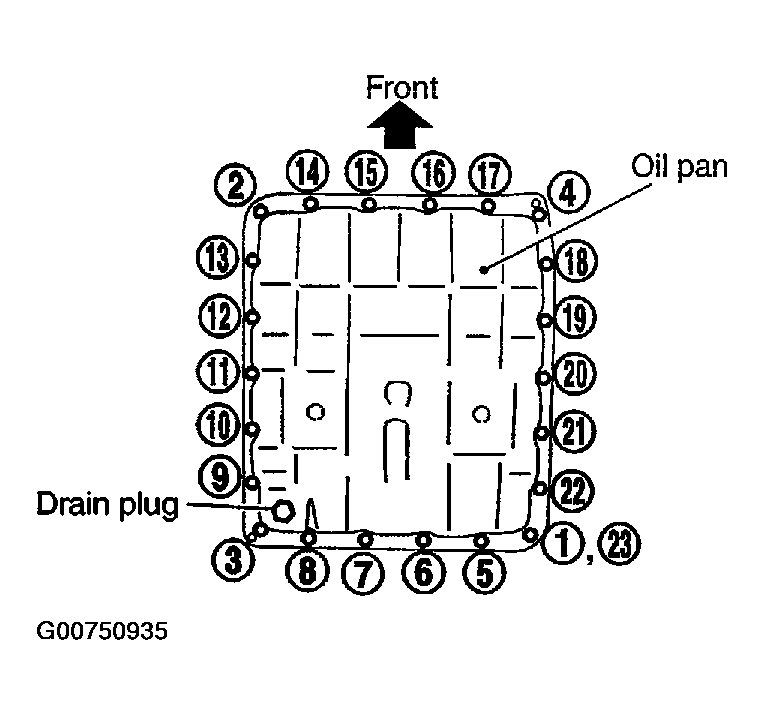

    Fig 8: Identifying Oil Pan Bolt Tightening Sequence
    G00750935Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Connect heated oxygen sensor 2 harness connector.
  11. Install propeller shaft. Refer to " REMOVAL AND INSTALLATION  "  .
  12. Install exhaust front tube and center muffler. Refer to " REMOVAL AND INSTALLATION  "  .
  13. Connect the negative battery terminal.
  14. Pour ATF into transmission assembly. Refer to A/T FLUID  -Changing A/T Fluid"  .
