Automatic Transmission: Overhaul: Components

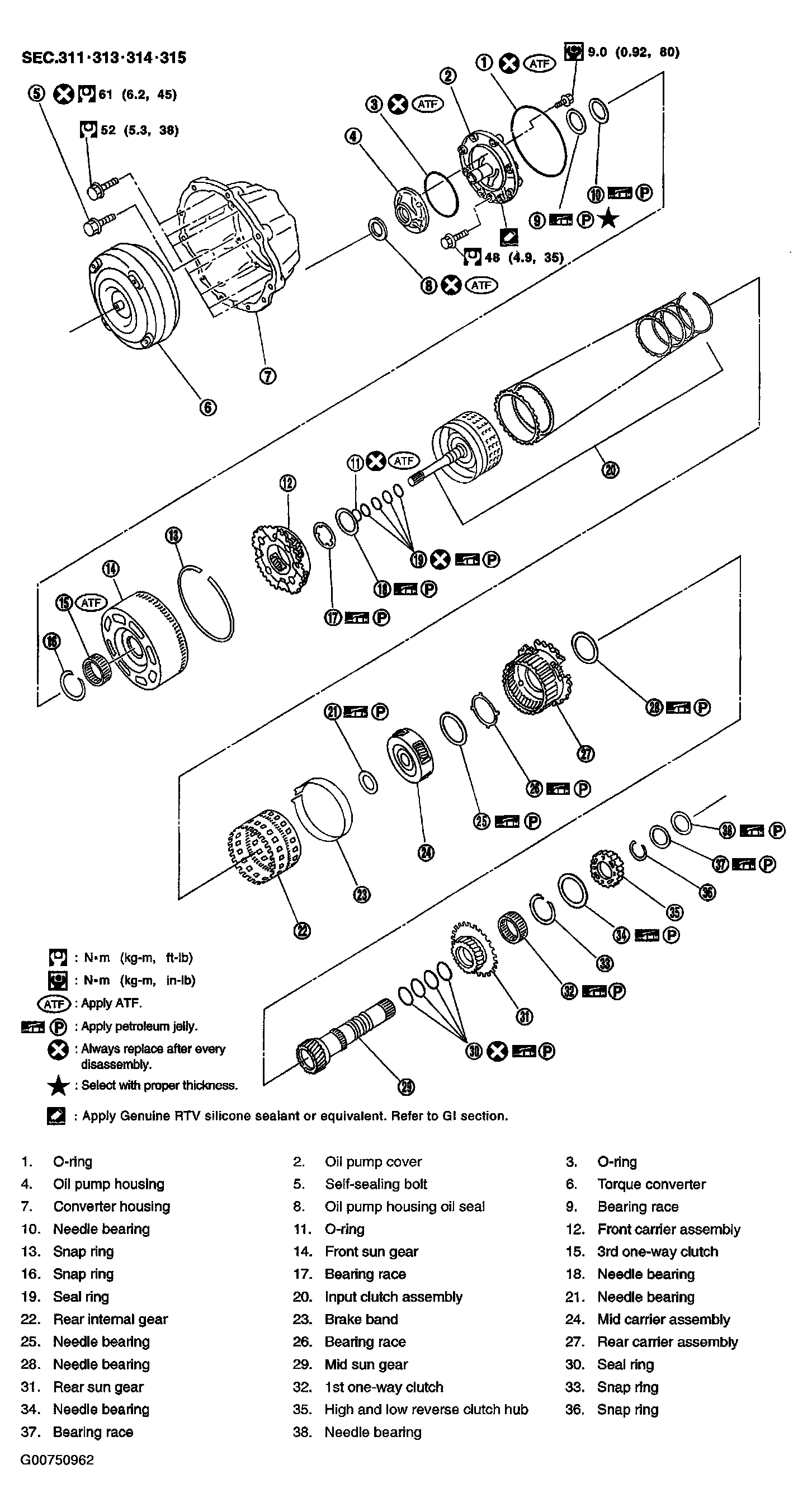

Fig 1: Identifying Transmission Components (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

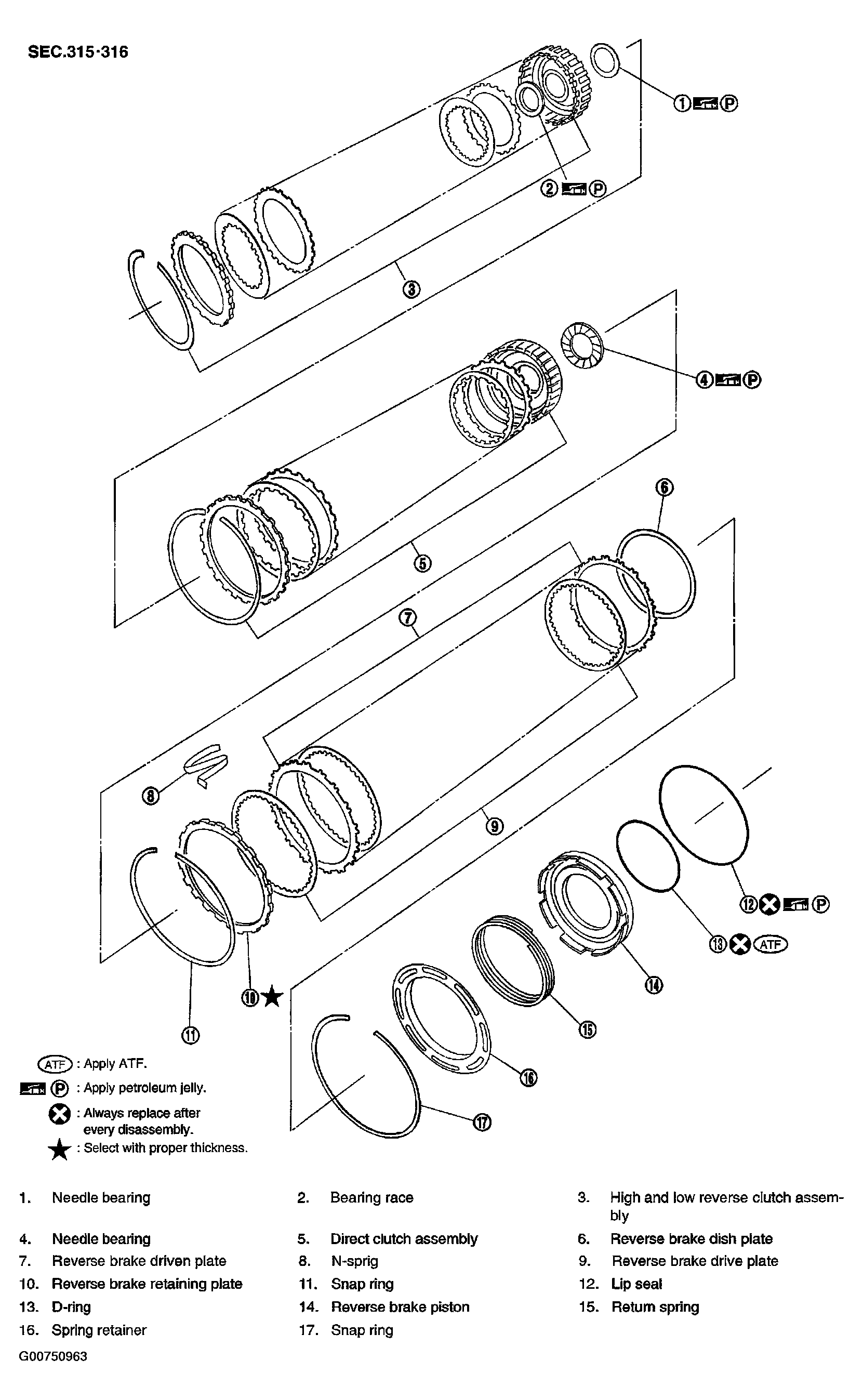

Fig 2: Identifying Transmission Components (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Identifying Transmission Components (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
