Turbine Revolution Sensor

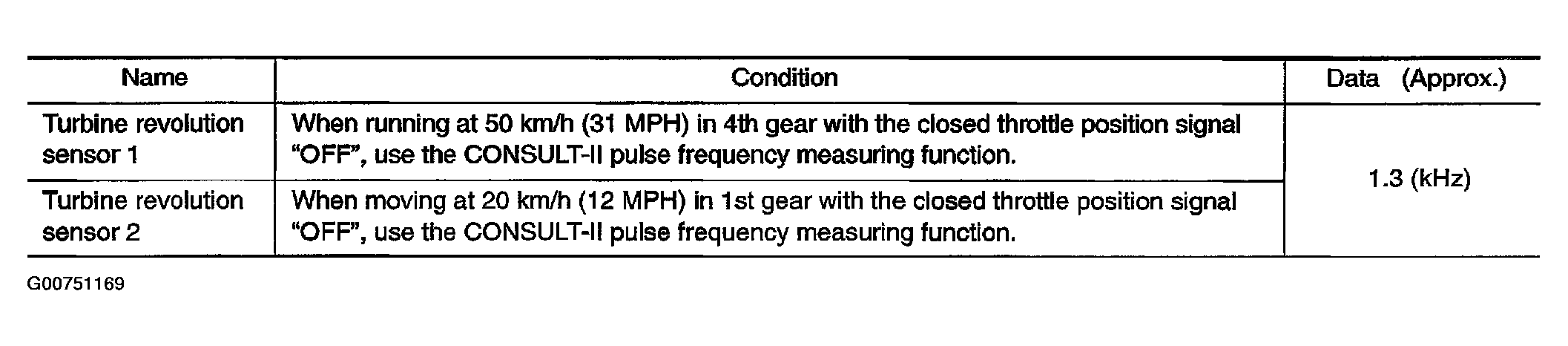

Fig 1: Turbine Revolution Sensor Specifications Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
