A/T Interlock Coupling Pattern Table

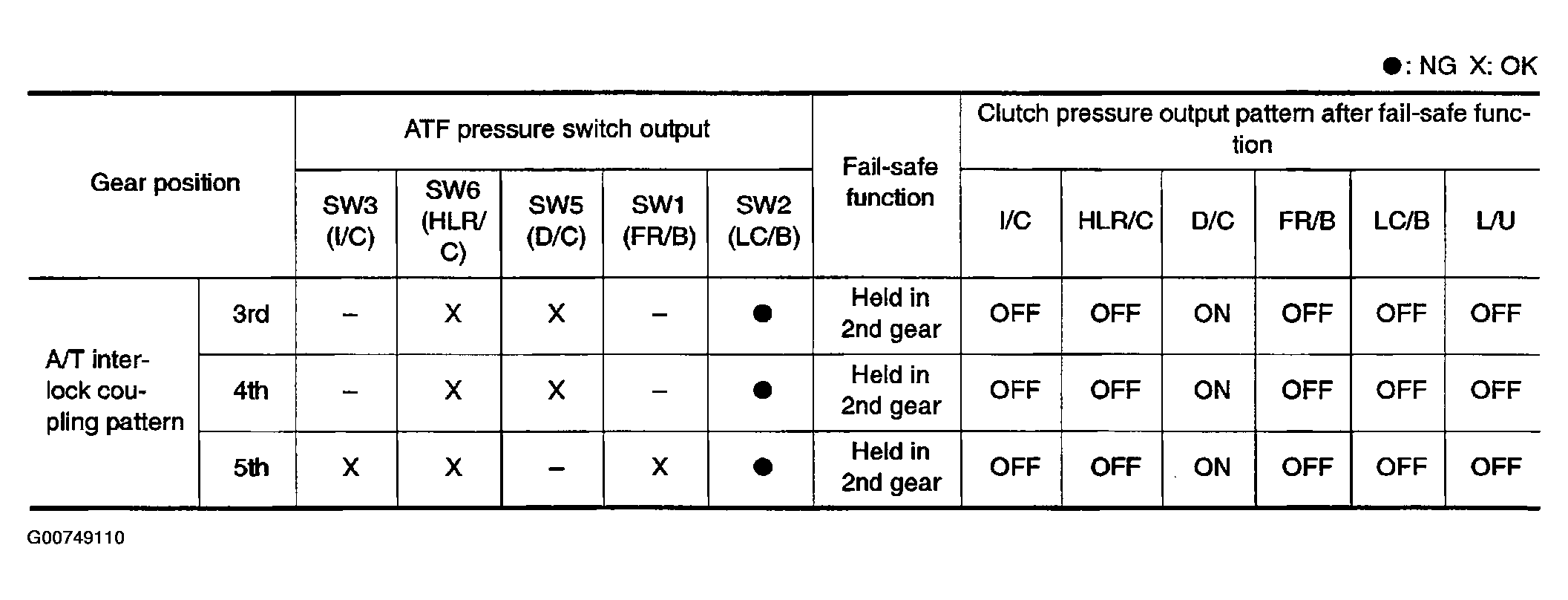

Fig 1: A/T Interlock Coupling Patterns
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
