System Diagram

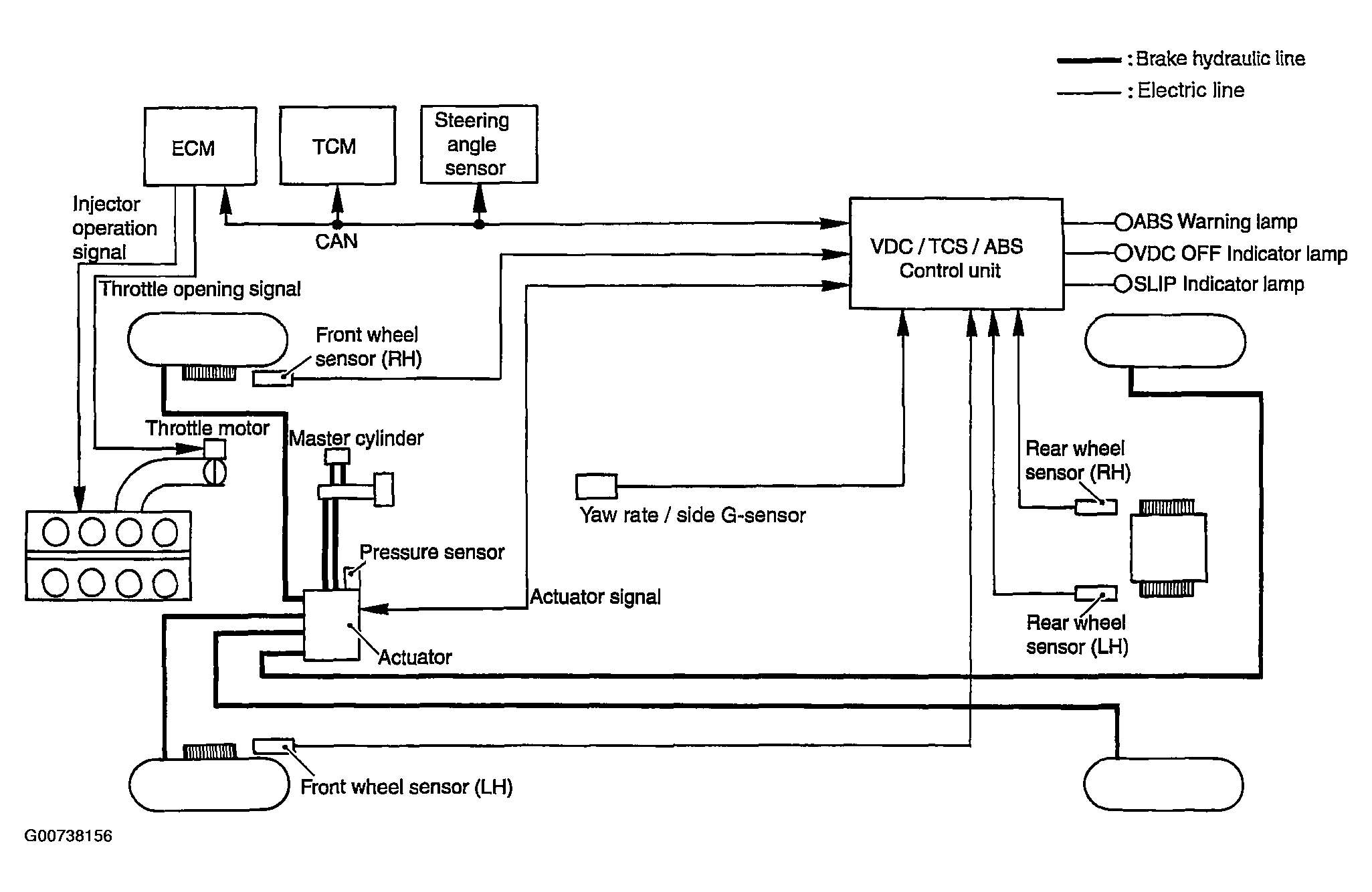

Fig 1: Displaying Overview Of Brake Control System
Courtesy of NISSAN MOTOR CO., U.S.A.
