Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Dash

G00268682

Courtesy of NISSAN MOTOR CO., U.S.A.

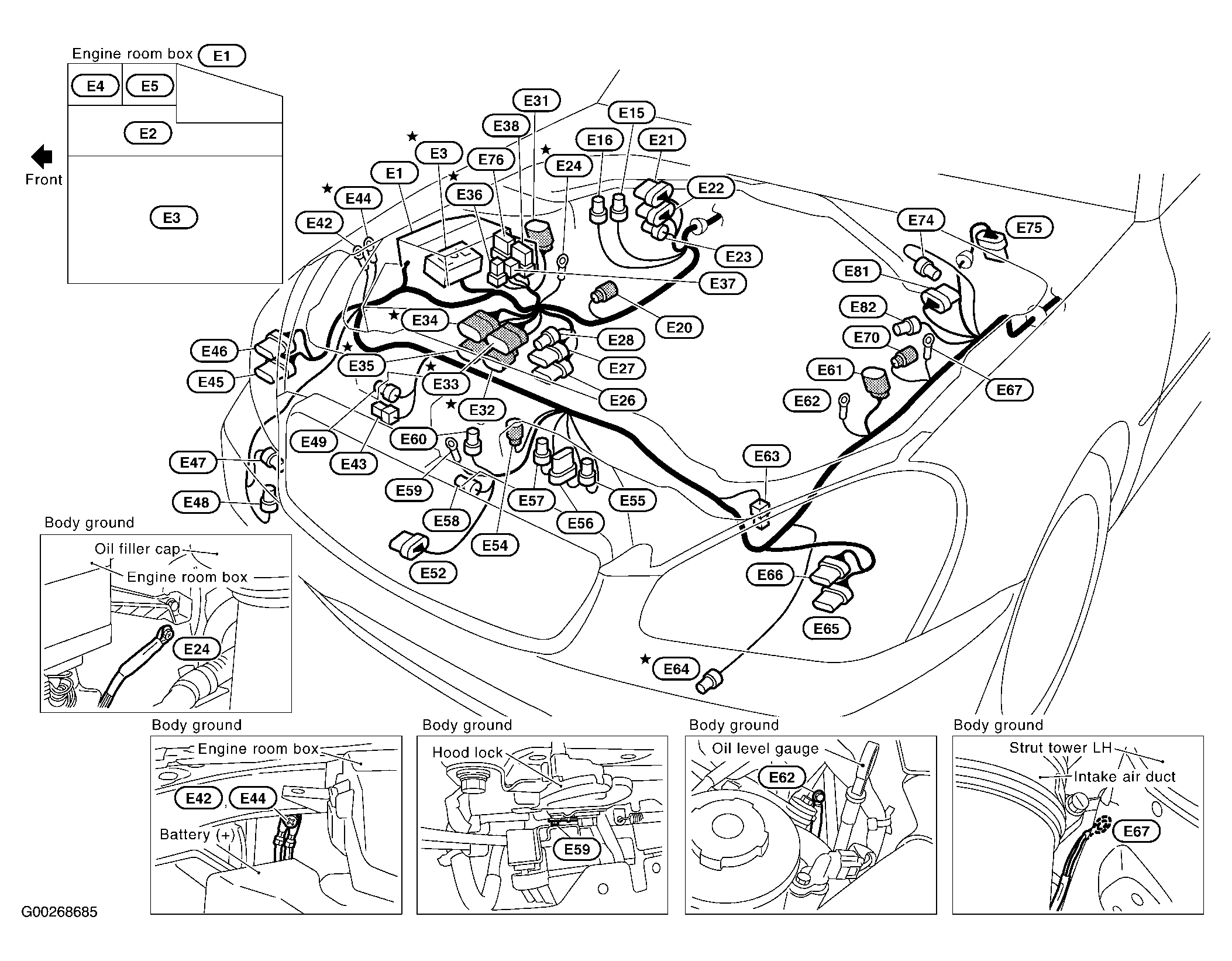

Fig 2: Engine Compartment

G00268685

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Dash

G00268687

Courtesy of NISSAN MOTOR CO., U.S.A.

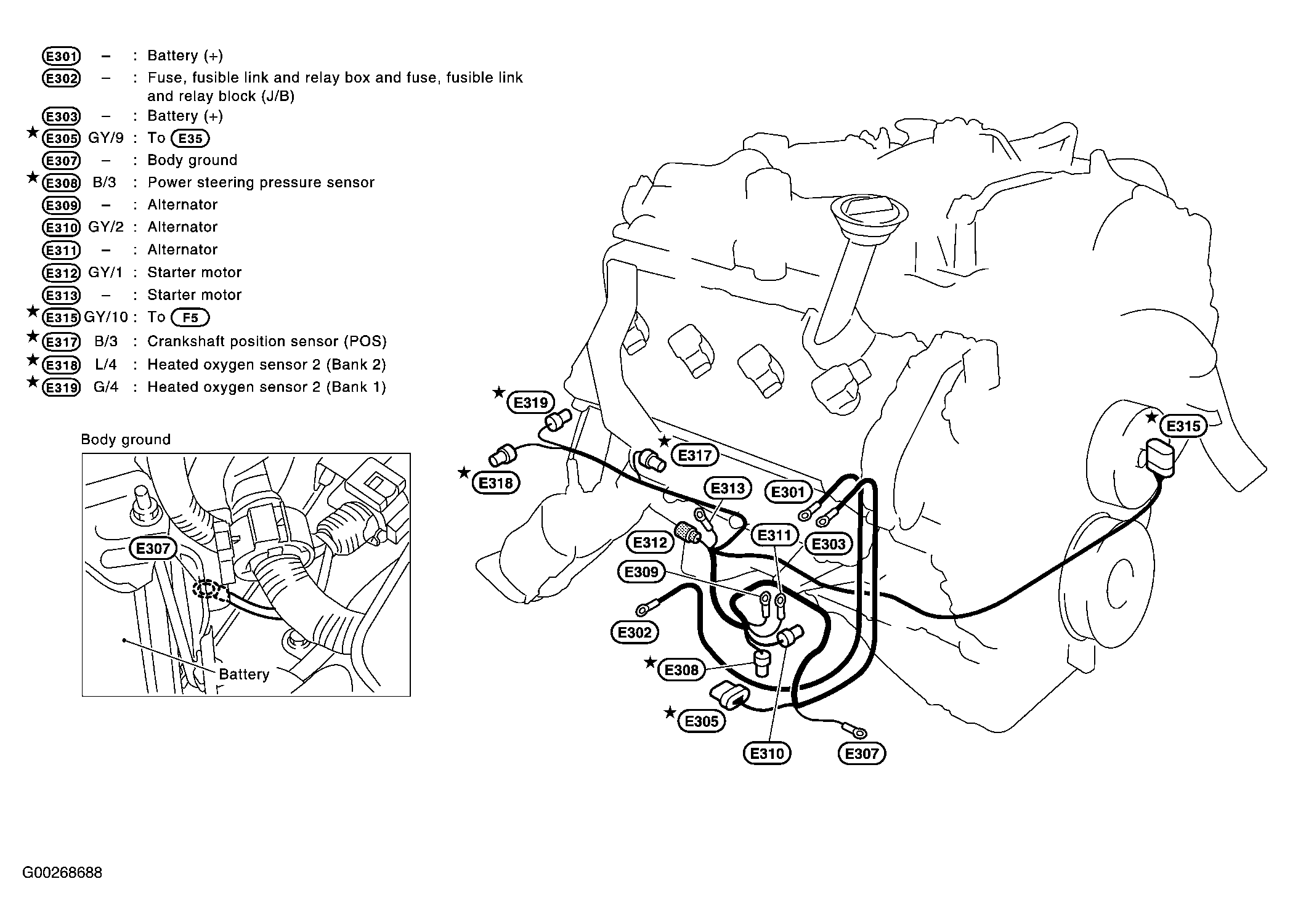

Fig 4: Engine

G00268688

Courtesy of NISSAN MOTOR CO., U.S.A.

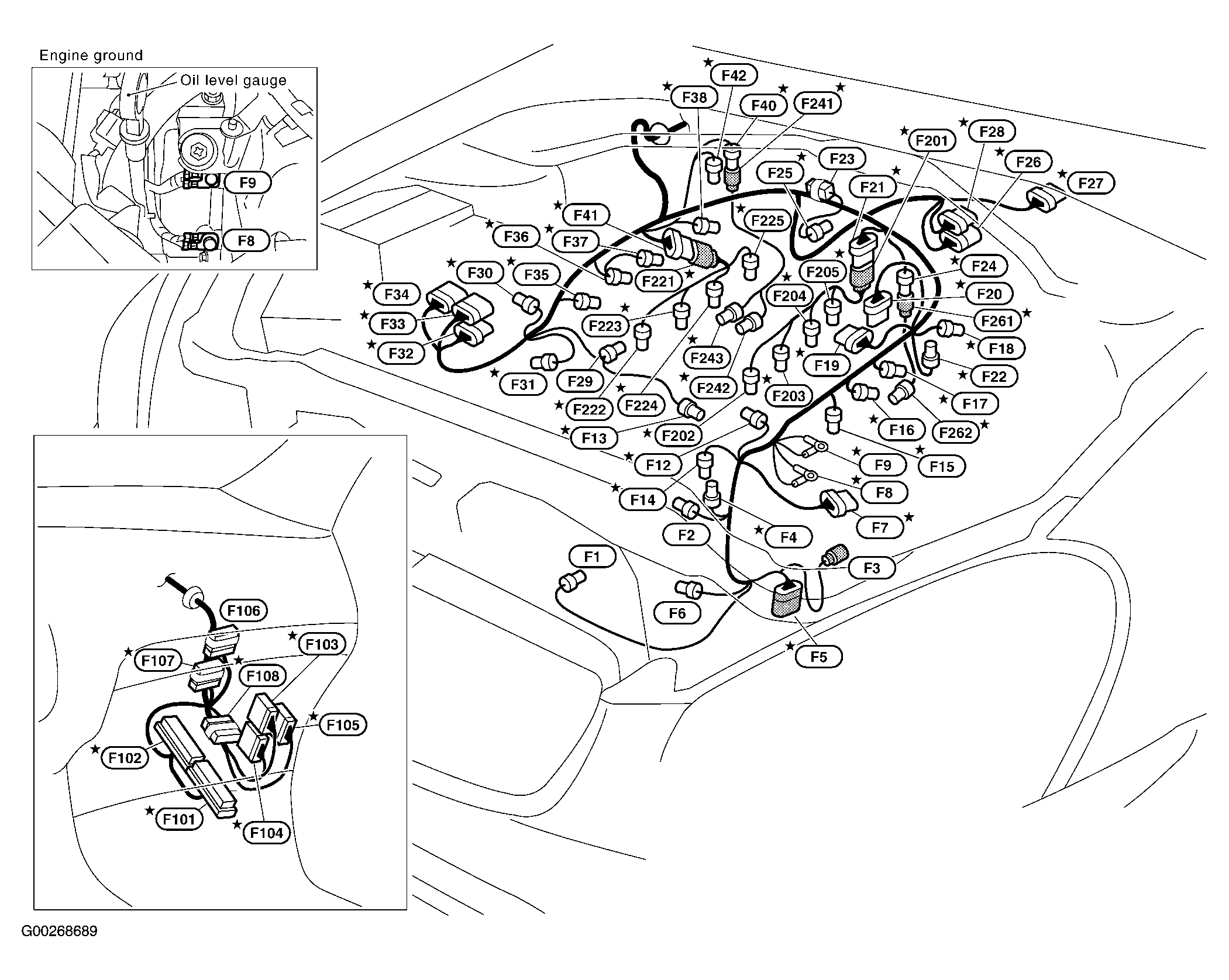

Fig 5: Engine Compartment

G00268689

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Vehicle Overview

G00268691

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Vehicle Overview

G00268693

Courtesy of NISSAN MOTOR CO., U.S.A.

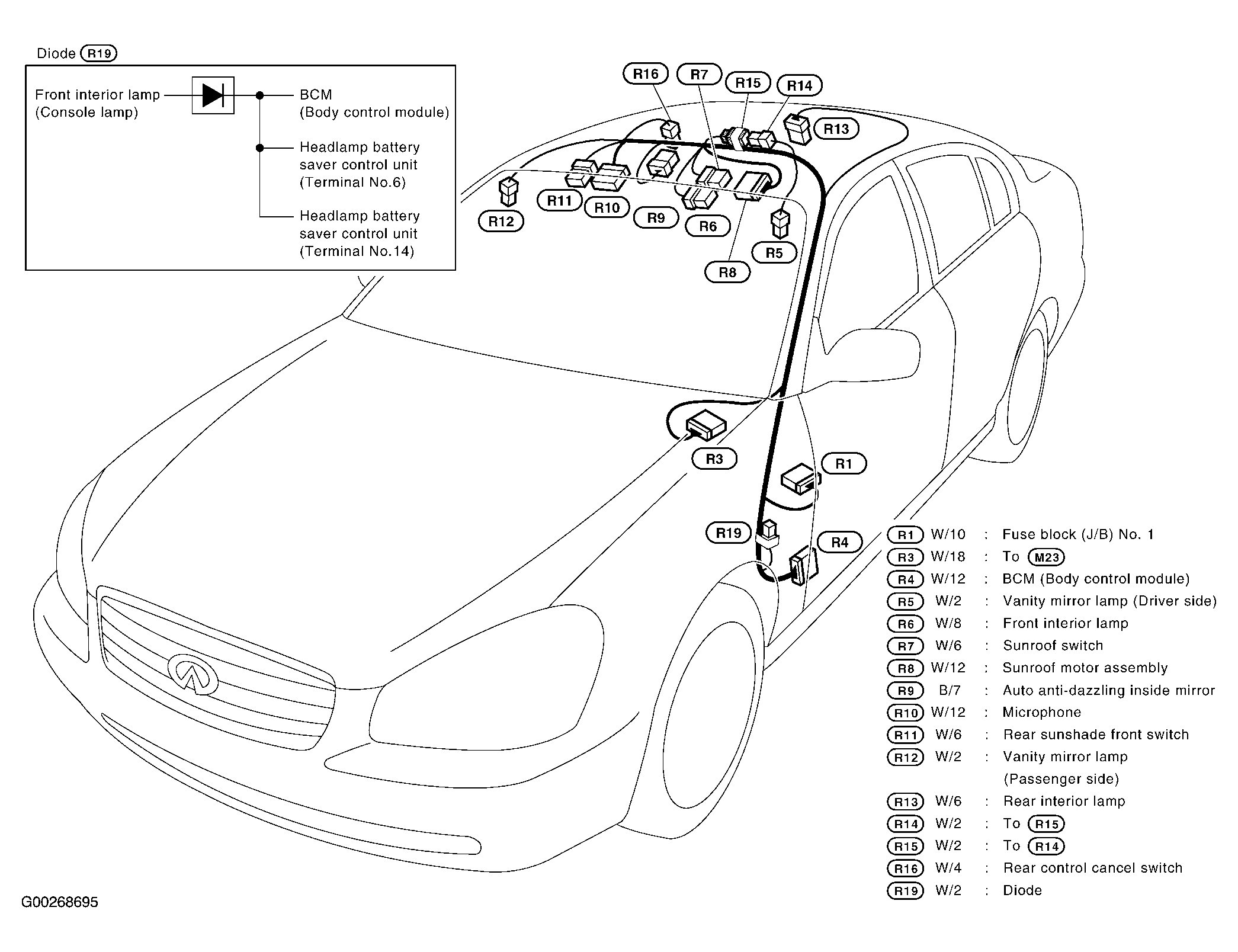

Fig 8: Vehicle Overview

G00268695

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Left Front Door

G00268696

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Left Rear Door

G00268697

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Vehicle Overview

G00268698

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Vehicle Overview

G00268699

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Vehicle Overview

G00268700

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Rear Seats

G00268701

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Rear Of Vehicle

G00268702

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Fuse Block (J/B) No. 1

G00268703

Courtesy of NISSAN MOTOR CO., U.S.A.

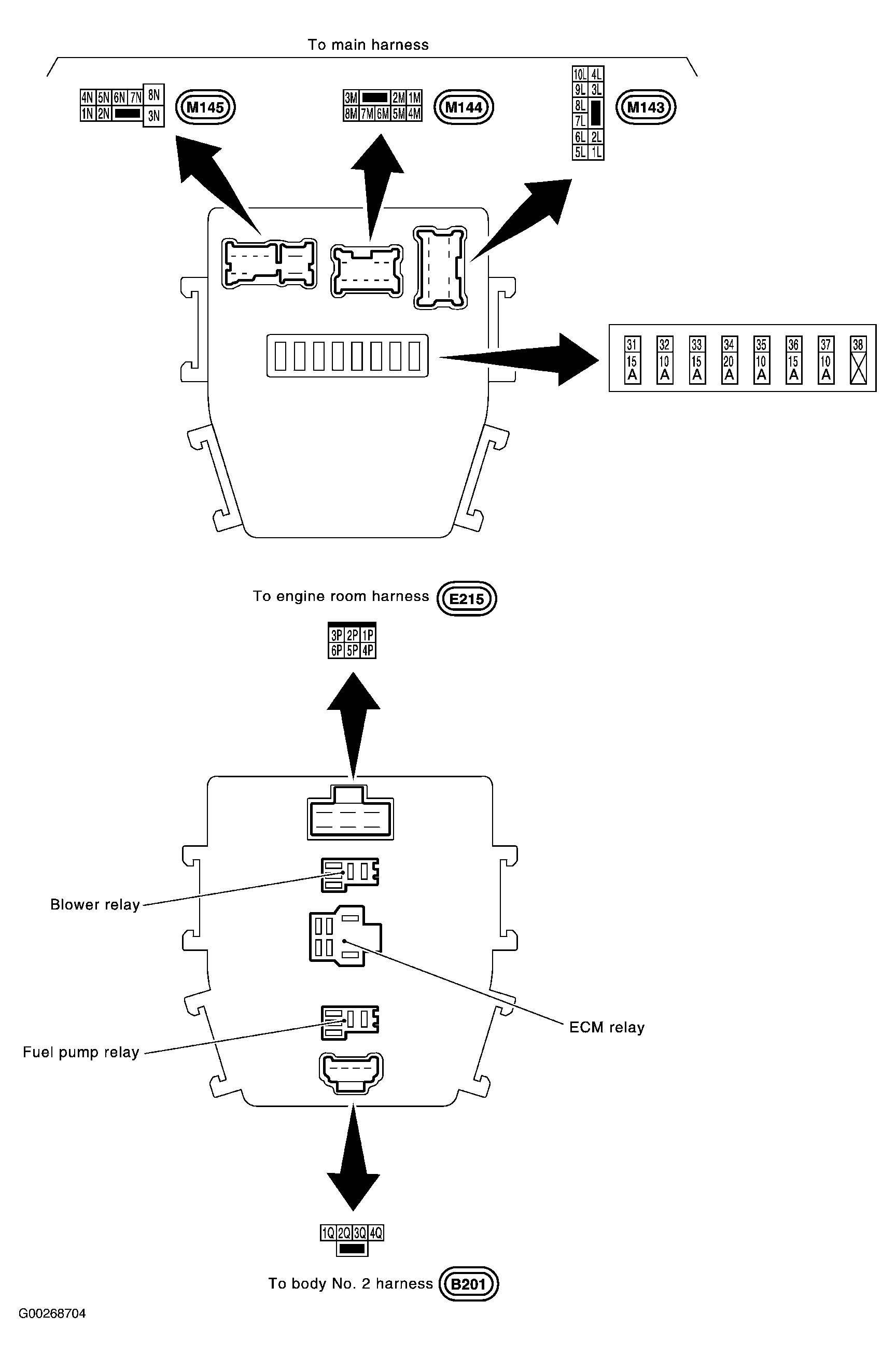

Fig 17: Fuse Block (J/B) No. 2

G00268704

Courtesy of NISSAN MOTOR CO., U.S.A.

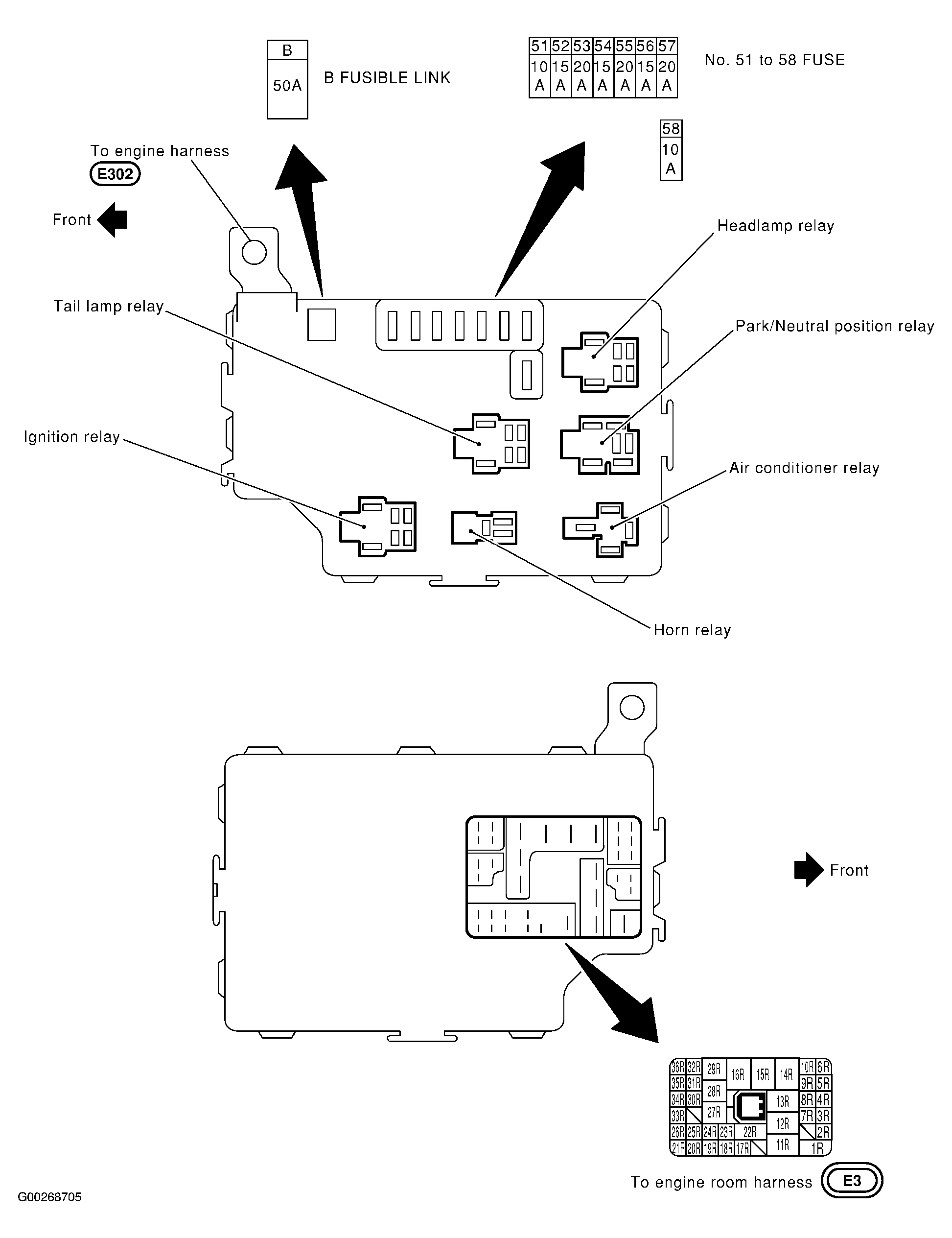

Fig 18: Fuse, Fusible Link & Relay Block (J/B)

G00268705

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 19: Fuse, Fusible Link & Relay Box

G00268706

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 20: Right Front Door

G00268707

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 21: Right Rear Passenger's Door

G00268708

Courtesy of NISSAN MOTOR CO., U.S.A.
