Ignition Timing

Any of following two methods may be used.

Method A

1. Attach timing light to loop wire as shown.
2. Check ignition timing.

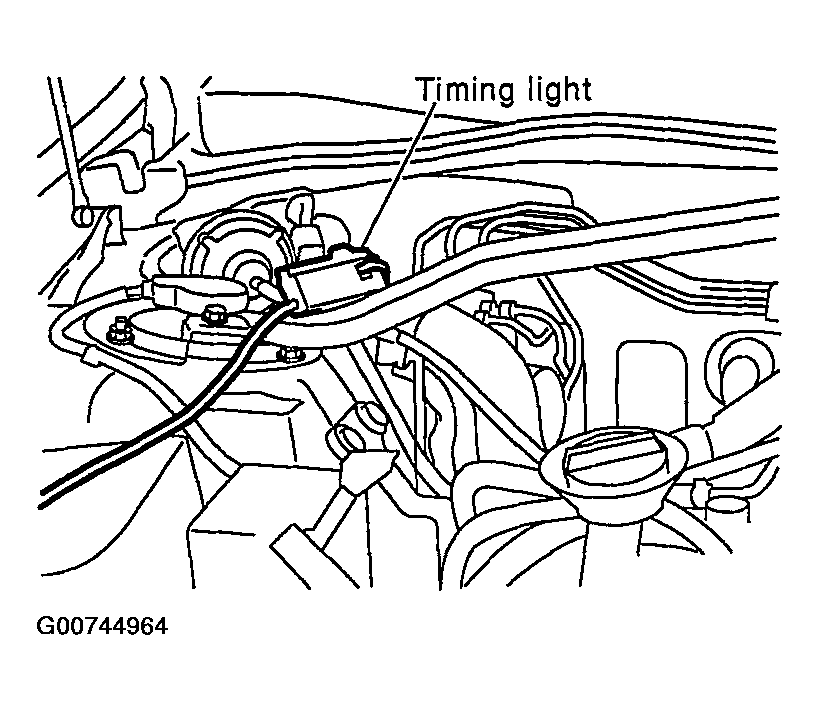

Fig 1: Locating Timing Loop

Courtesy of NISSAN MOTOR CO., U.S.A.

Method B

1. Remove No. 1 ignition coil.

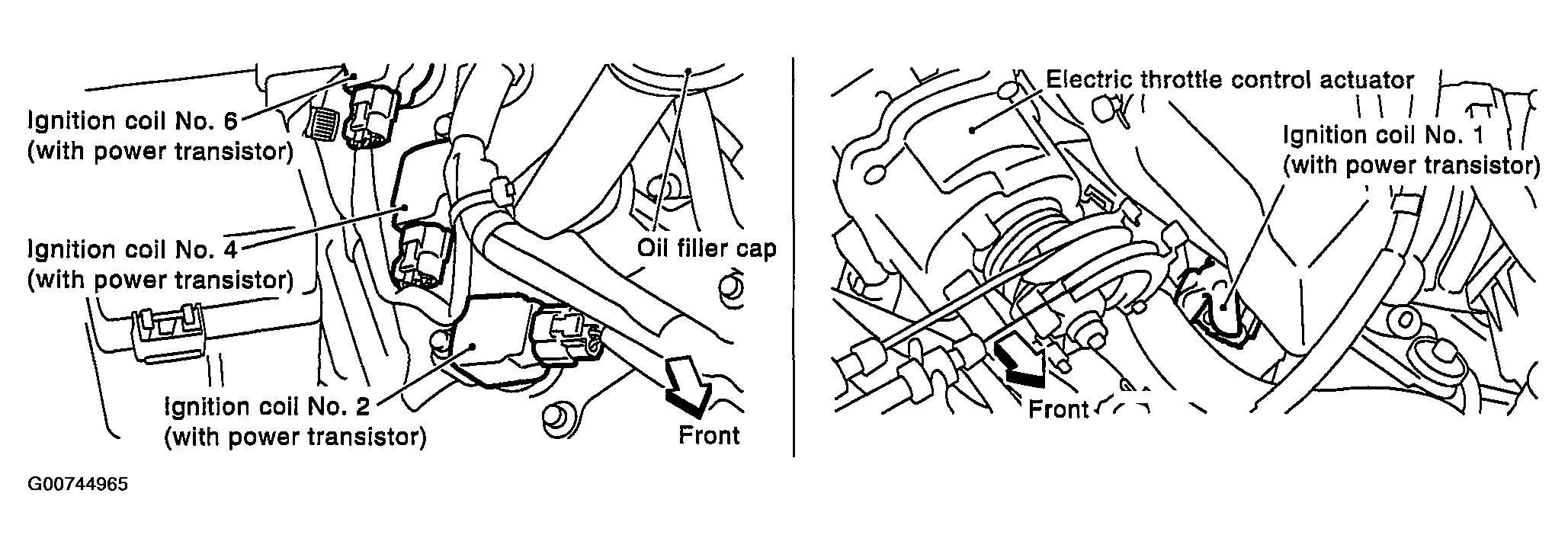

   Fig 2: Locating No. 1 Ignition Coil

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

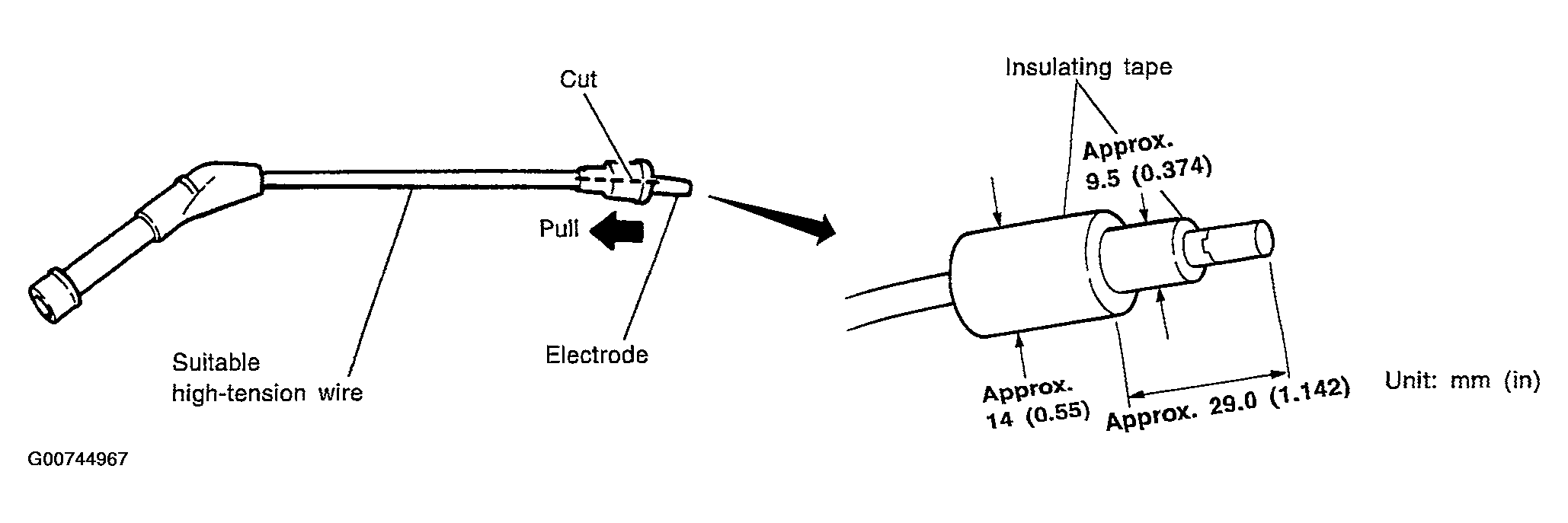

   Fig 3: Prepping High-Tension Wire

   Courtesy of NISSAN MOTOR CO., U.S.A.

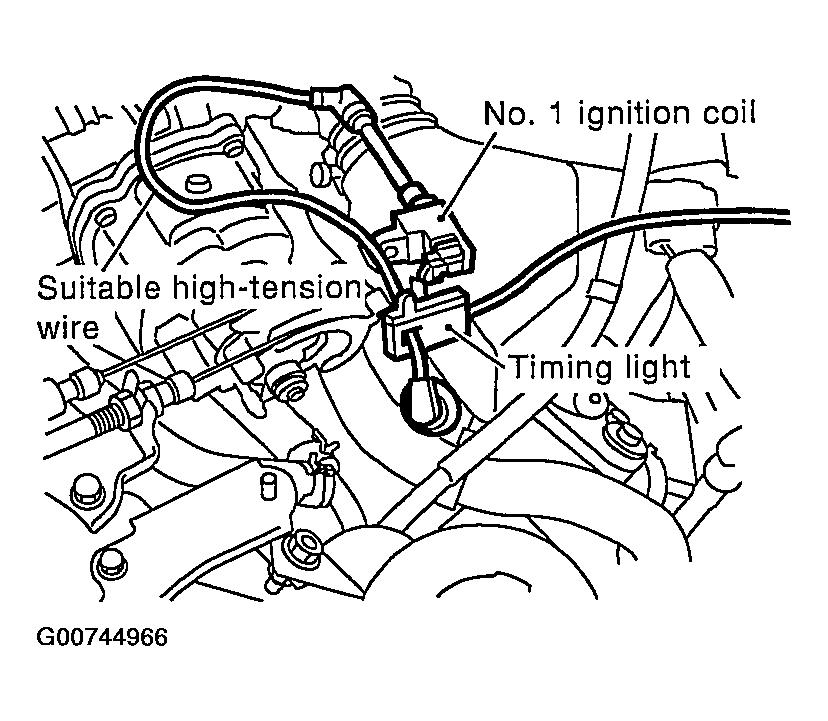

   Fig 4: View Of Timing Hook-ups

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check ignition timing.

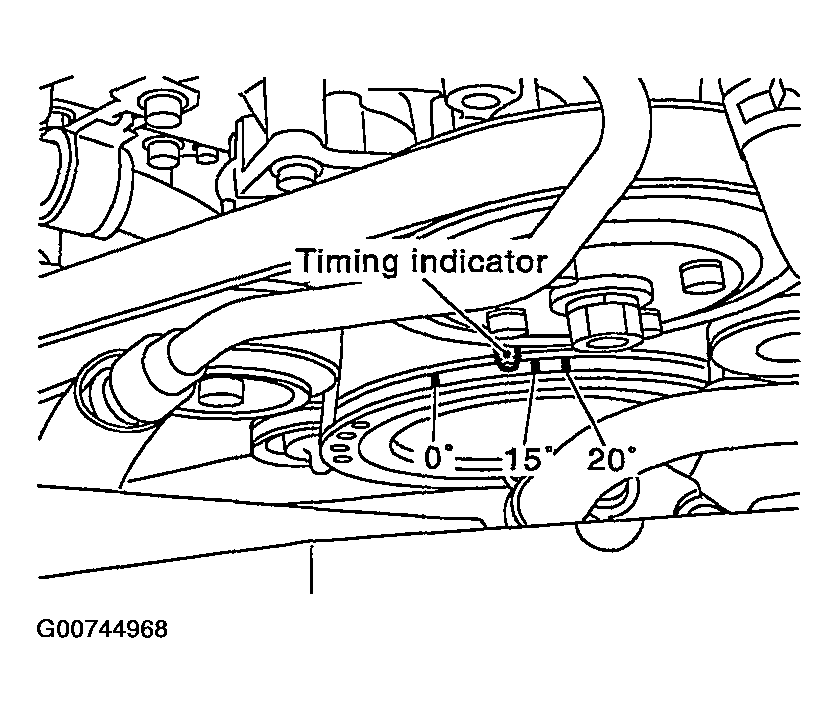

Fig 5: Locating Timing Indicator

Courtesy of NISSAN MOTOR CO., U.S.A.
