2. Check Purge Flow

With CONSULT-II

1. Disconnect vacuum hose connected to EVAP canister purge volume control solenoid valve at EVAP service port and install vacuum gauge.
   Fig 1: Locating EVAP Service Port

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Start engine and let it idle.
3. Select "PURG VOL CONT/V" in "ACTIVE TEST" mode with CONSULT-II.
4. Rev engine up to 2,000 RPM.
5. Touch "Qd" and "Qu" on CONSULT-II screen to adjust "PURG VOL CONT/V" opening and check vacuum existence.

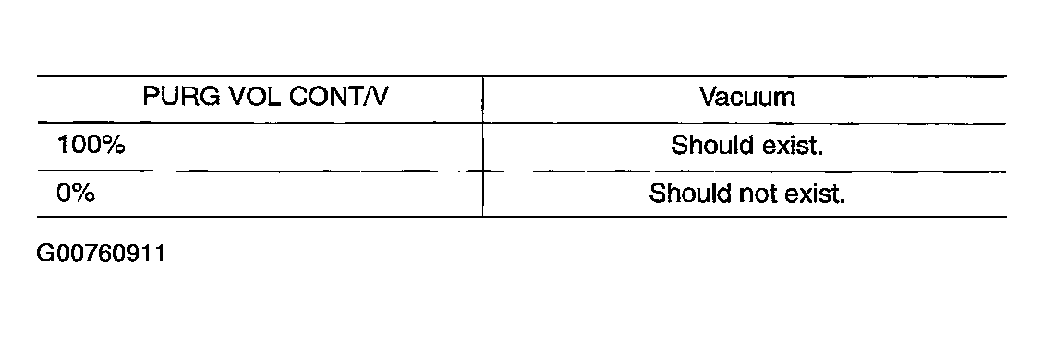

Fig 2: Checking PURG VOL CONT/V (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

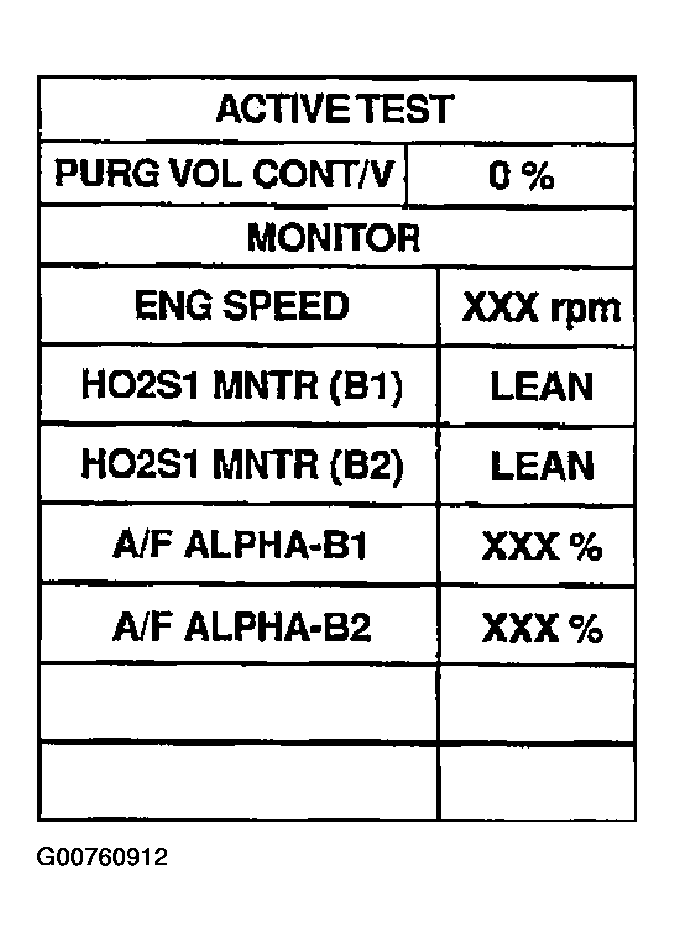

Fig 3: Checking PURG VOL CONT/V (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 7. CHECK EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE .

NG : GO TO 4. CHECK EVAP PURGE LINE .
