DTC P0452: EVAP Control System Pressure Sensor
>>
On Board Diagnosis Logic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
On Board Diagnosis Logic
NOTE:
If DTC P0452 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229.
Refer to
DTC P1229 SENSOR POWER SUPPLY

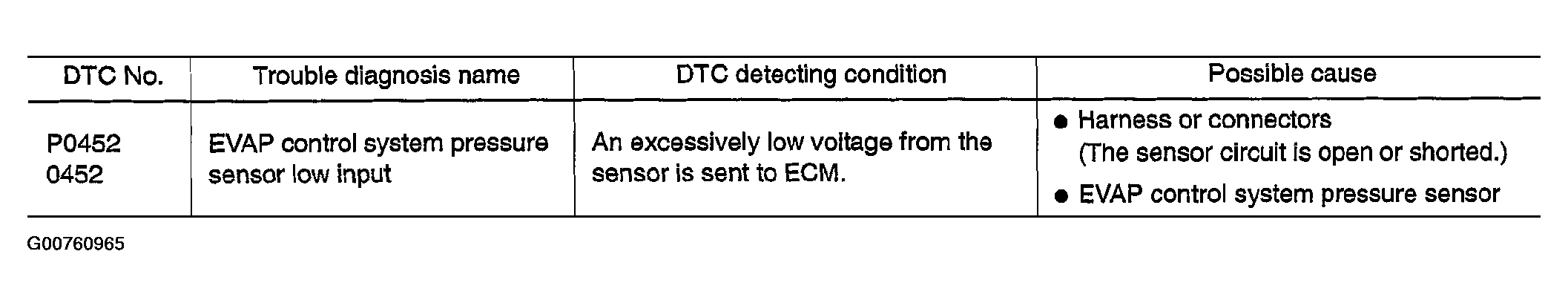

Fig 1: On Board Diagnosis Logic
Courtesy of NISSAN MOTOR CO., U.S.A.
